Rally Armor 2013+ Subaru Crosstrek XV - Manual

IMF 26
Version 1.0 Release Date 03.16.2013
1

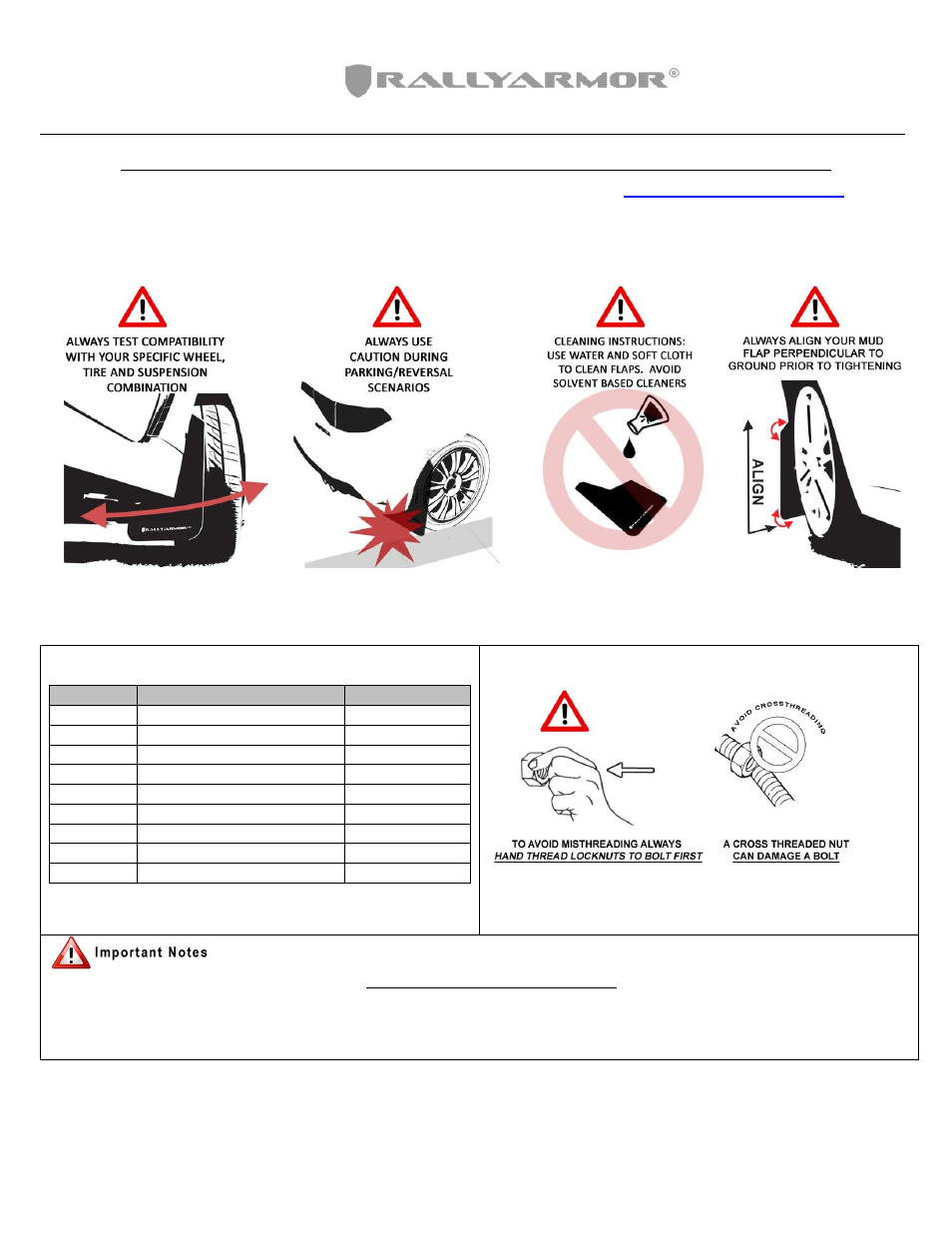

2013+ SUBARU IMPREZA XV CROSSTREK MUD FLAP INSTALLATION INSTRUCTIONS
PLEASE REVIEW THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING INSTALLATION
For high resolution color images of these instructions, please visit http://www.rallyarmor.com
To protect your Rally Armor mud flaps, care must be taken during parking and reversing. Rally Armor always recommends professional installation.
Check wheel clearances after installation, especially on vehicles outfitted with non-OEM offset wheels and suspensions. Adjust accordingly.
Rally Armor is not responsible for damage or loss of installed mud flaps.
Each mud flap set contains 4 flaps and mounting hardware (unless otherwise noted).
Recommended tools: Philips Screwdriver, 7/16
th ”wrench, 10mm wrench, small & long flat head screwdrivers.
YOUR MOUNTING HARDWARE CONSISTS OF:
Quantity Hardware Item Item ID
2 Front brackets HMF24-BR-FR
2 Rear Brackets HMF26-BR-RE
2 Spacers .25Sp
4 Stainless Steel Lock Nuts SSLnut
14 Washers SmWash
10 Polygon Clips PolCl
4 Short Stainless Steel Screws 1SS
6 Long Stainless Steel Screws 2SS
2 Plastic Hex Bolt Inserts Ins4
Cautionary Tip: The hardware is strong and self threading but over-tightening the mounting clips is not advised.
Installation Tip: To ease installation and avoid damage to existing OEM clips during removal, a well lit, climate controlled installation environment is recommended.
To the installer: Please return these instructions to the customer after installation. Always test and check wheel clearances before returning vehicle.
To the customer: Retain these instructions after installation. They may be necessary for installing other optional parts or removal of this accessory.
