Rally Armor 1993- 2001 Subaru Impreza UR Rally Mud Flap Mounting Instructions
Please read the instructions thoroughly before attempting to install mud flaps. Rally Armor always recommends professional installation.
For high resolution images and the most up to date instructions please visit our mounting instructions area on http://www.rallyarmor.com
To protect, avoid damage and extend the life of your rally mud flap set care must be taken during parking and reversal conditions.
Your mud flap set contains 4 flaps total for all four tires of the vehicle.
Your mounting hardware consists of:
Quantity Hardware Item Item ID
14 Polygon Edge Clips PolCl
12 Large Washers Wash
2 Small Washers WashSm
2 Short Stainless Steel Screws .75SSP
10 Medium Stainless Steel Screws 1SS
2 Long Stainless Steel Screws 1.5SS
2 Spacers .5SP
2 Rear U Brackets (rear flaps) Ubrkt
Recommended Tools: Short Phillips Screwdriver; Small Offset/Ratcheting Phillips; Flat head Screwdriver
Front Mud Flap Installation

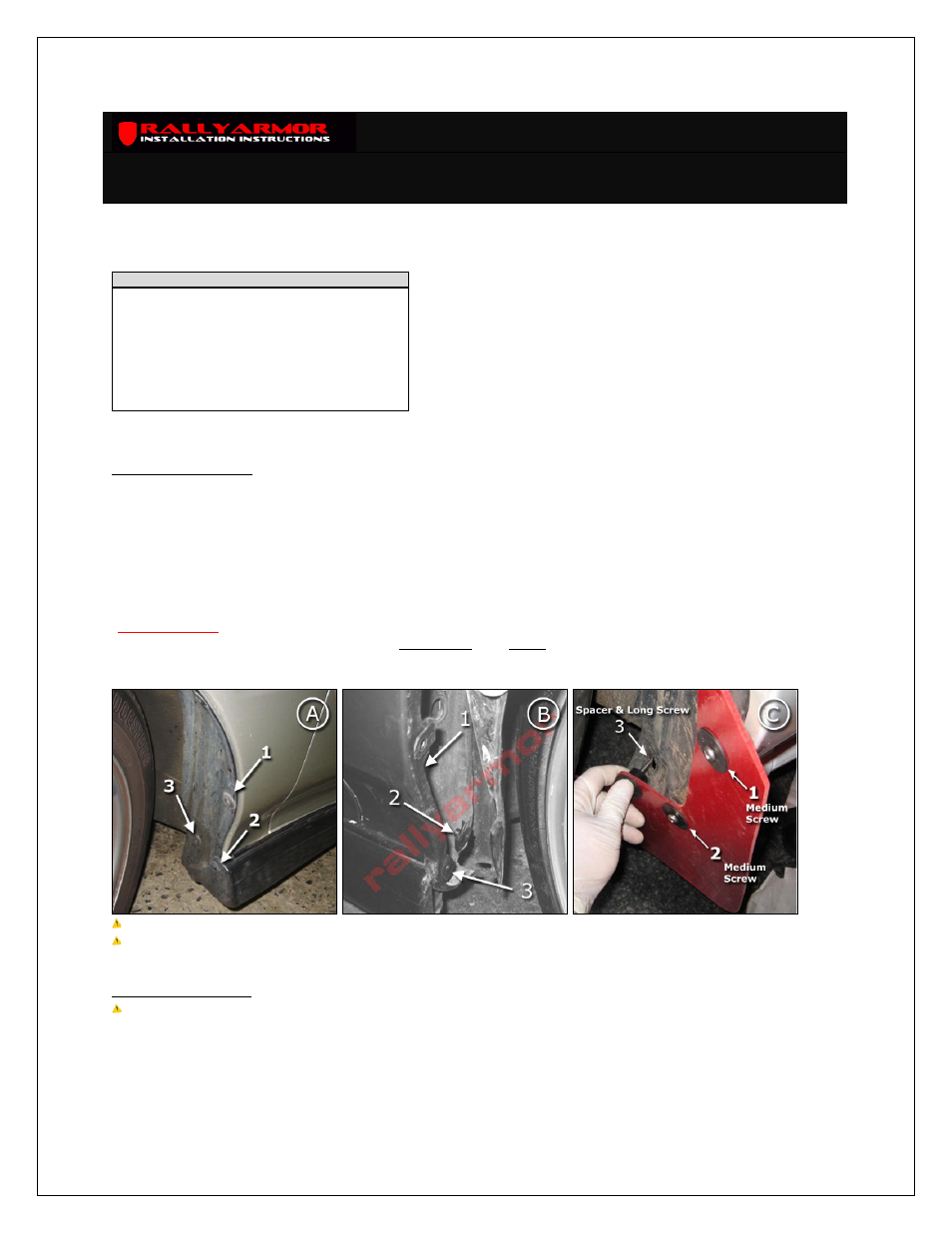

1. Begin by parking the vehicle on an even surface. Turn the steering wheel towards the side you are working on to gain access to the wheel
well area. Remove the 3 wheel well fasteners (#1-3) that secure the fender liner /skirt to the vehicle. To remove the fasteners, pop the inner
tab assembly first, then remove the complete assembly by prying the outer edges of the fastener (Figure A).
2. Carefully pull fender liner away from the body of the vehicle then position 3 polygon clips (PolCl) over fender mounting points 1, 2 and inner
mounting point #3. Re-install liner over clips, confirming each clip hole is aligned and visible through liner mounting point (Figure B).
3. Match front mud flap against the vehicle mounting points (#1-3) with logo facing the rear of the vehicle. Place a long (1.5SS) screw with
washer (Wash) through mud flap mounting point #3. Place spacer behind mud flap and loosely thread screw through spacer and into clip #3.
Place a medium (1SS) screw with washer (Wash) through mud flap mounting points #1 and #2 and loosely thread into clips.
*Do not fully tighten.* You will adjust the mud flap before tightening (Figure C).
4. Step away from the vehicle and adjust mud flap until perpendicular to the ground. If needed, make slight adjustments by shifting the
upper/lower portions of the flap. Check each adjustment by walking away from the vehicle. When flap is correctly aligned, tighten all hardware
only until snug.
Tip: The hardware is quite strong and self threading but over-tightening the clips beyond their limit is not recommended.
Tip: To check any non standard wheel clearance, turn the steering wheel from lock to lock while viewing the wheel well area at different
intervals to assess if any additional modification is required.
Rear Mud Flap Installation
Tip: Although removal of the rear tire will ease installation, removal is not necessary. The installation can be completed using an offset
screwdriver and jacking up the rear of the vehicle thereby lowering the wheel and facilitating access to the area for easier installation.
1. Place 2 polygon clips (PolCl) over outer rear mounting points #4 and #5. From under the rear bumper of the vehicle, place polygon clip
(PolCl) over OEM mounting slot #6 (Figure D).
2. Place short side of (Ubrkt) against mounting point #6 clip. Thread short screw (.75SSP) with washer through mounting point and secure
