Rally Armor 2014+ Subaru Forester User Manual
Rally Armor For bicycles

IMF 28
Version 1.1 Release Date 04.14.2013
1

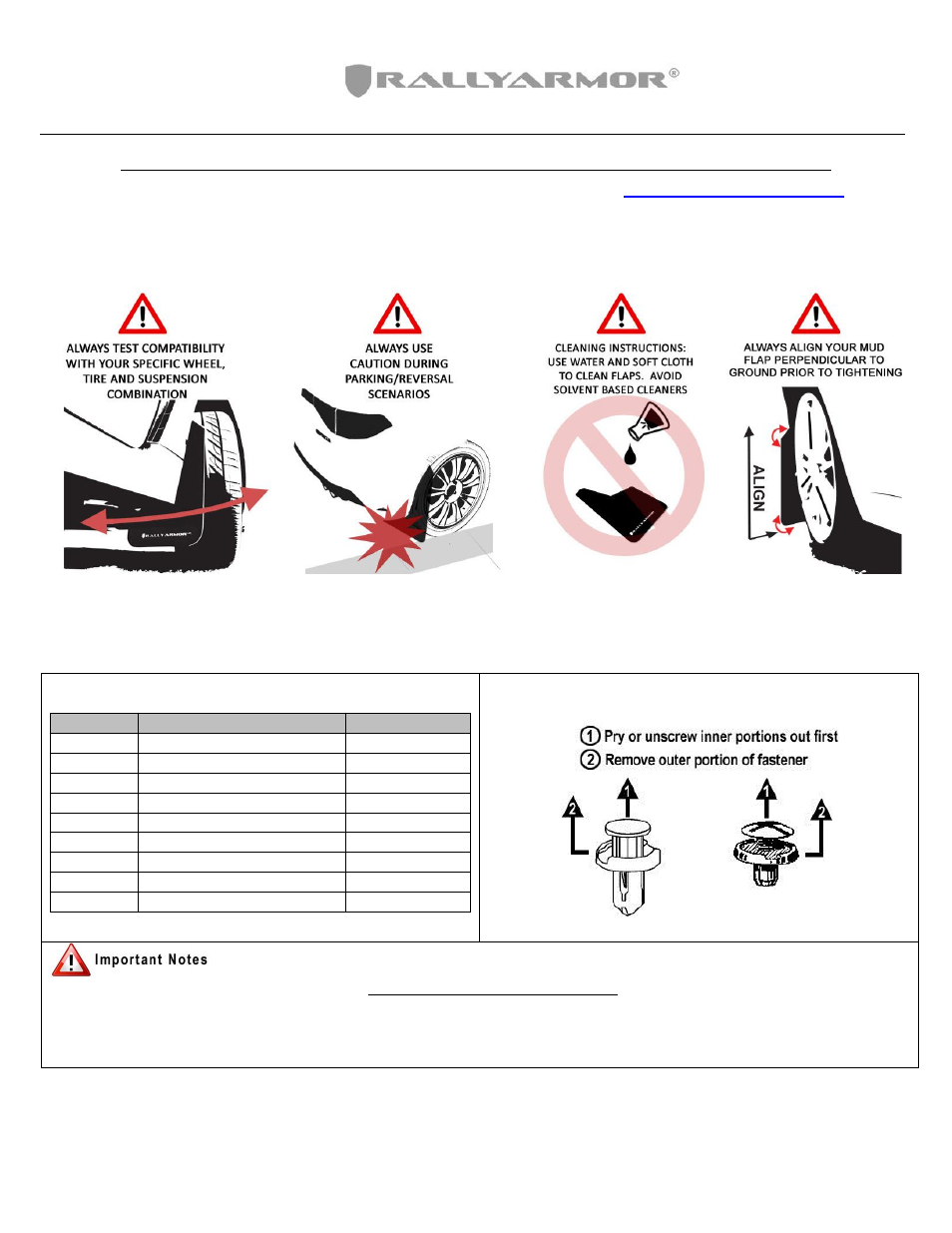

2014+ SUBARU FORESTER MUD FLAP INSTALLATION INSTRUCTIONS
PLEASE REVIEW THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING INSTALLATION
For high resolution color images of these instructions, please visit
To protect your Rally Armor mud flaps, care must be taken during parking and reversing. Rally Armor always recommends professional installation.
Check wheel clearances after installation, especially on vehicles outfitted with non-OEM offset wheels and suspensions. Adjust accordingly.
Rally Armor is not responsible for damage or loss of installed mud flaps.
Each mud flap set contains 4 flaps and mounting hardware (unless otherwise noted).
Recommended tools: Stubby and standard Philips Screwdriver, 7/16
th
”wrench or socket w/ratchet, small & long flat head
screwdrivers, small snips.
YOUR MOUNTING HARDWARE CONSISTS OF:
Quantity
Hardware Item
Item ID
2
Front brackets
HMF28-BR-FR
2
Rear Brackets
HMF13-BRKT
4
Inserts
Ins5
2
Stainless Steel Lock Nuts
SSLnut
12
Washers
SmWash
12
Polygon Clips
PolCl
4
Short Stainless Steel Screws
1SS
8
Long Stainless Steel Screws
1.5SS
2
Machine Screws
1MCHSS
TO REMOVE STOCK FASTENERS (REVERSE TO INSTALL):
Cautionary Tip: The hardware is strong and self-threading but over-tightening the mounting clips is not advised.
Installation Tip: To ease installation and avoid damage to existing OEM clips during removal, a well-lit, climate controlled installation environment is recommended.
To the installer: Please return these instructions to the customer after installation. Always test and check wheel clearances before returning vehicle.
To the customer: Retain these instructions after installation. They may be necessary for installing other optional parts or removal of this accessory.
