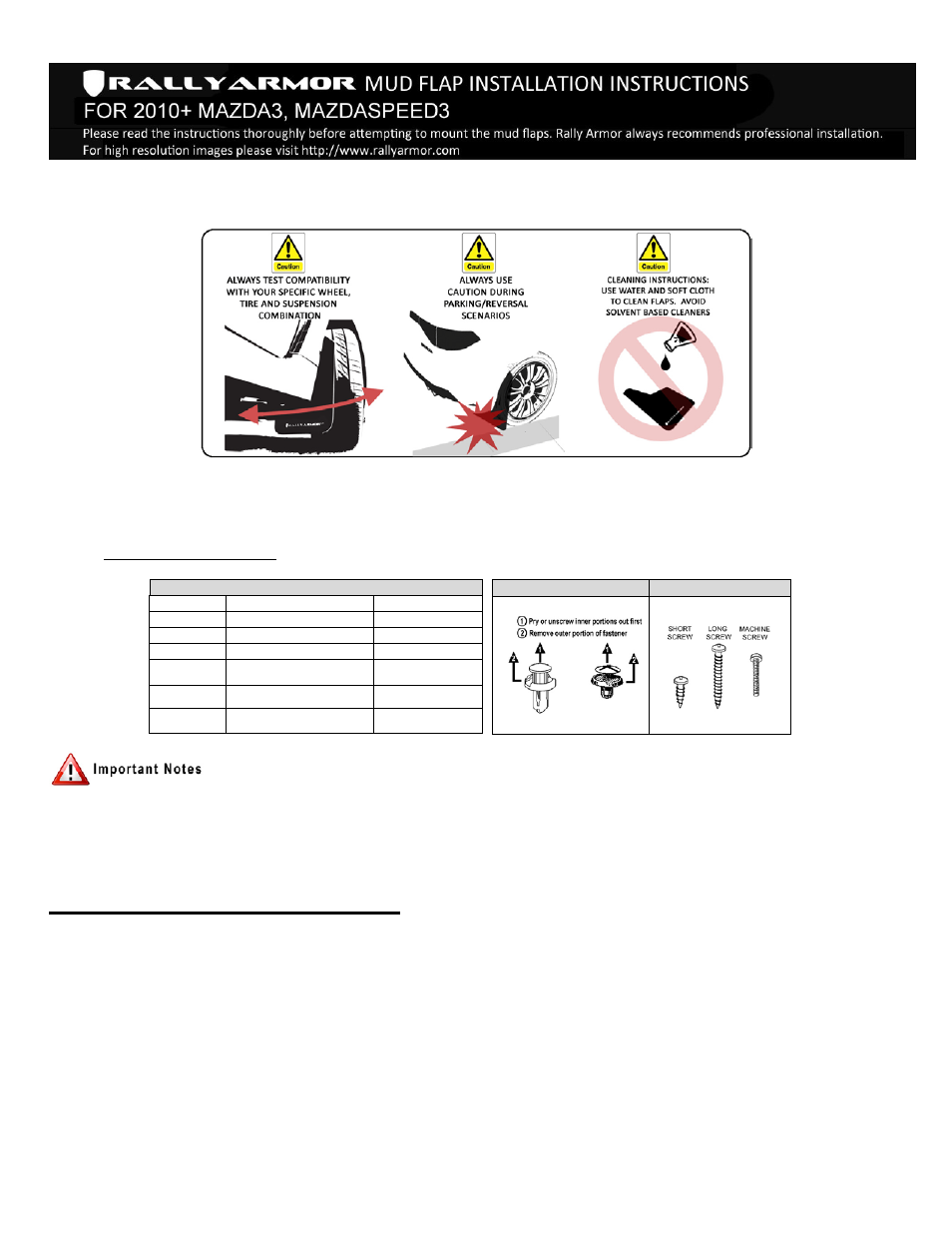

Rally Armor 10-13 Mazda3/Speed3 User Manual

Front mud flap installation

background image

IMF17

Version 1.0 Release Date 5.28.2010

1

To protect your Rally Armor mud flap set, care must be taken during parking and reversing. Check wheel clearance after installation, especially vehicles outfitted
with non-OEM offset wheels and suspensions. Rally Armor is not responsible for damage or loss of installed flaps.

Each mud flap set contains 4 flaps for all 4 tires of the vehicle.
Recommended tools: Offset, ratcheting or stubby Phillips screwdriver, small flat head screwdriver, small snips or razor blade, drill and bit assortment, 7/16

wrench or

ratchet /socket.

Rally Armor 2010+ Mazda3 and Mazdaspeed3 mud flap mounting hardware consists of:

Quantity

Hardware Item

Item ID

8

Polygon Edge Clips

PolCl

12

Washers

Wash

2

Short Screws

1SS

6

Long Screws

1.5SS

4

Machine Screws

1MCHSS

4

Locknuts

SSLNut

2

Rear Mounting Brackets

Lbrkt

To remove stock fasteners

Screw Reference

The supplied hardware is strong and self threading but over-tightening the clips is not advised.

Installation Tip: To ease installation and avoid damage to existing OEM clips during removal, a well lit, climate controlled installation environment is recommended.
To the installer: Please return these instructions to the customer after installation. Always test and check wheel clearance before returning vehicle.
To the customer: Retain these instructions after installation. They may be necessary for installing other optional parts or removal of this accessory.

Front Mud Flap Installation

(Figure A) Park vehicle on an even surface. Turn the steering wheel towards the side you are working on. Remove 4 outer fender
liner fasteners.
(Figure B) Turn the steering wheel towards the opposite direction. Remove the remaining rear inner fender liner fasteners.
(Figure C) Pull liner away to gain access to inner fender. Place a polygon clip (PolCl) over each of the 3 mounting points as shown.
