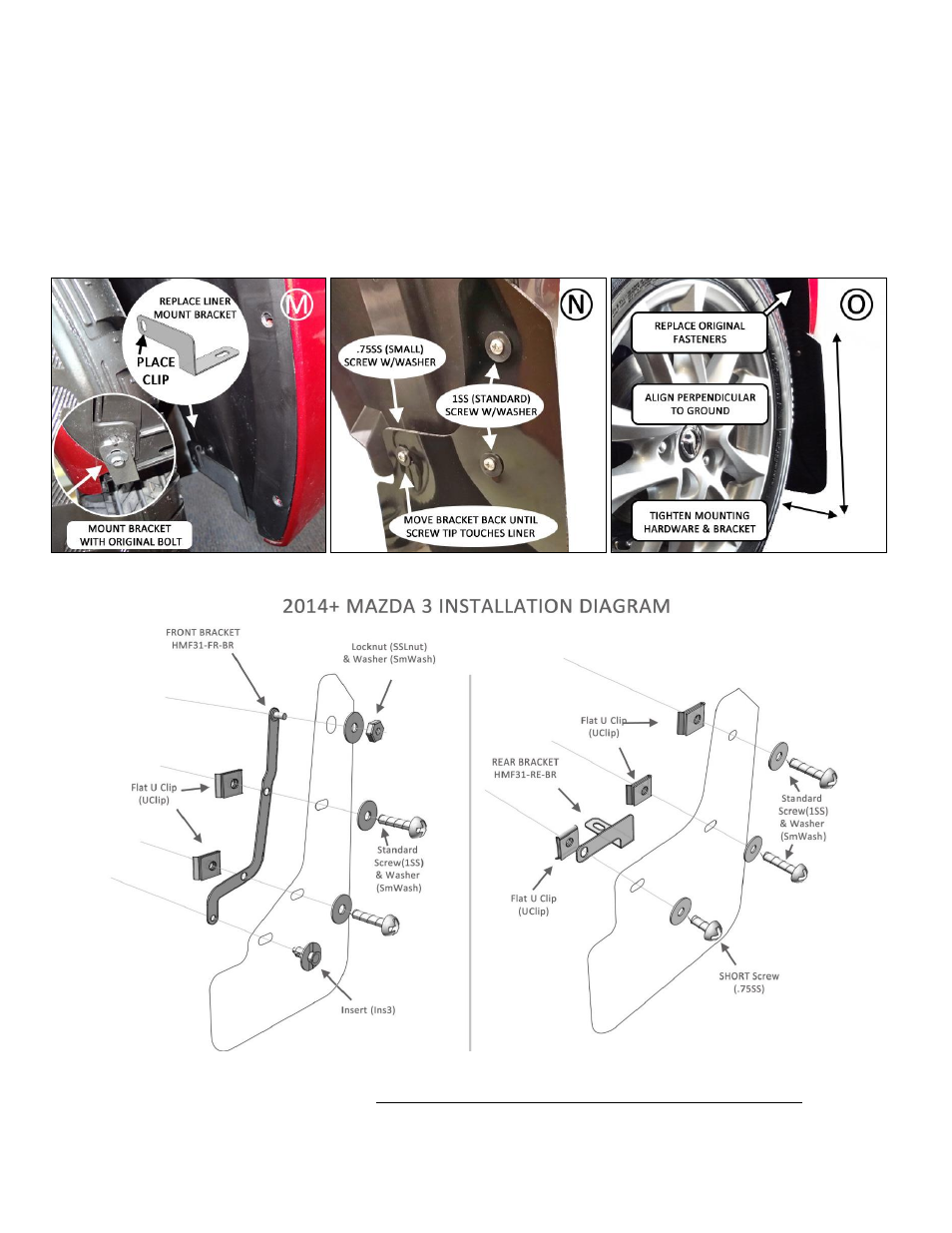

• (Figure N) Position the rear mud flap with logo facing the rear of the vehicle. Using a standard screw (1SS) and a washer
(SmWash), loosely bolt the mud flap to the 2 outer mounting points. Secure inner rear mounting point with a small screw (.75SS)
and a washer (SmWash) Push inside of the mud flap/bracket back until screw tip touches liner to ensure tire clearance .Do not fully
tighten mounting points.
• (Figure O) Replace original upper fender liner fasteners and second unused bolt underneath (Fig H) Align outer edge of the flap by
incrementally adjusting the side to side, lower/upper portion of the flap and walking away from the vehicle until the flap is
perpendicular to even ground and mounting points are not visible from the outside/rear of vehicle. Tighten all mounting screws
and nuts only until snug against washer. Do not overtighten.
Check wheel clearance after installation, especially on vehicles outfitted with non-OEM offset wheels and suspensions. Adjust
to accommodate accordingly in these scenarios. Rally Armor is not responsible for damage or loss of installed flaps.
