3

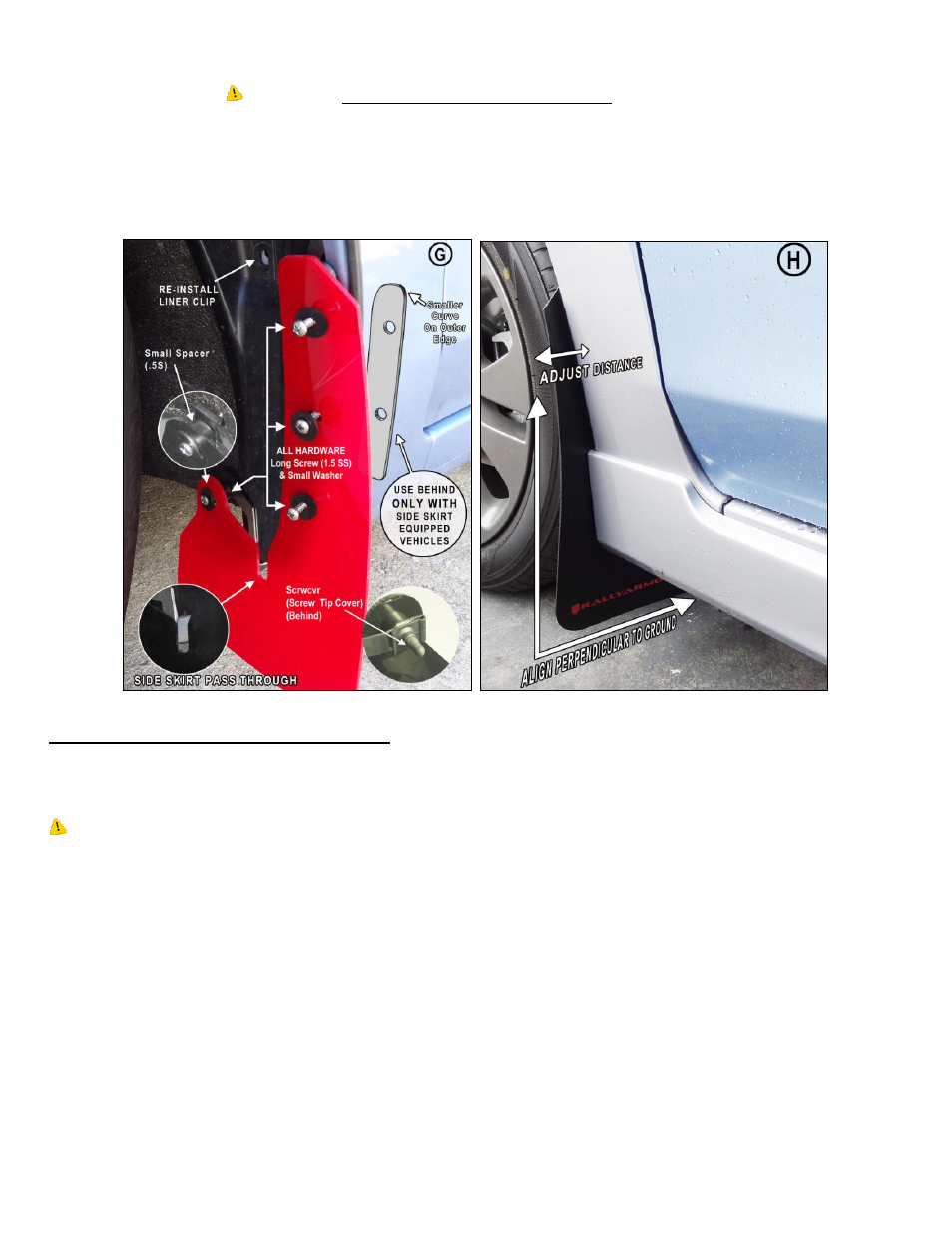

any remaining/unused side skirt and fender liner clips. Do not fully tighten. The mounting points are slotted to allow for movement
and final alignment of flap. IMPORTANT – ON SIDE SKIRT EQUIPPED VEHICLES ONLY: utilize the front spacer (SSK-SP) for the upper
two mounting points behind the mud flap. The spacer is correctly mounted when the upper edge with the smaller curve is positioned
on the outer edge, behind the flap and even with the liner. Place Rubber Screw Tip Cover (Scrwcvr) over tip of screw behind mounting
point. The cover can touch vehicle body.
• (Figure H) Align outer edge of the flap by incrementally adjusting the angle of the flap and walking away from the vehicle until the
flap is perpendicular to even ground.
• (Figure I) Note Expanded Reference Diagram (page 5)
Rear Mud Flap Installation
• (Figure J) Place 2 round edge clips (RoCl) over the outer edge mounting tabs (as shown). Rear clips mount behind inner liner.
• (Figure K) Working from under the rear of the vehicle, remove bumper skin retainer clip(s).
• (Figure L) Gently pull back bumper skin. Install a polygon (PolCl) clip on the inside portion of the inner bumper piece.
TIP : You may choose to remove the inner bumper piece in its entirety to install the clip.
