Rally Armor 11-14 Subaru WRX & STI Sedan User Manual
Page 5
IMF19
Version 1.3 Release Date 10.22.2010
5

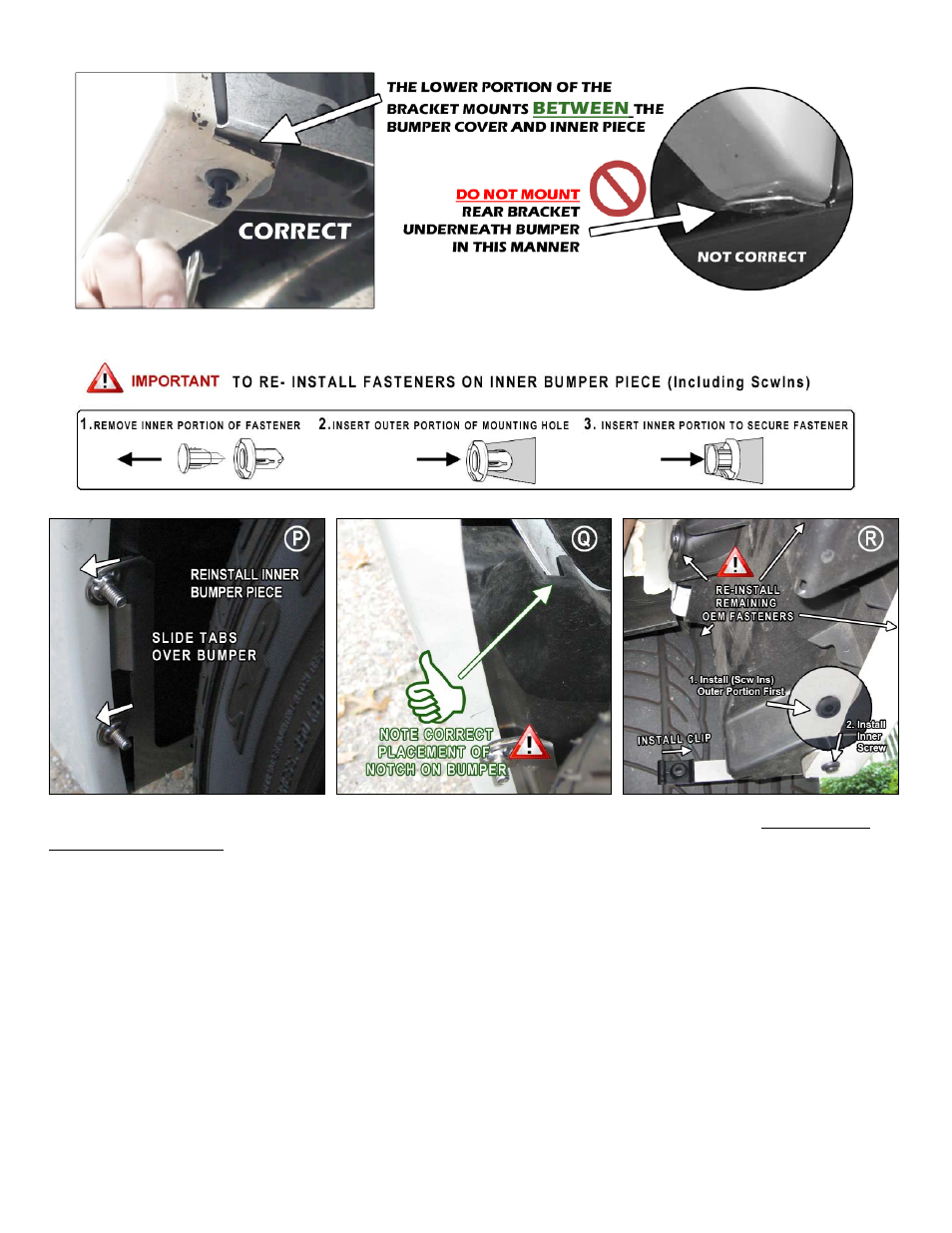

• (Figure S) Place the mud flap against the corresponding mounting points on the bracket. Base of threaded bolt must be inside of
mounting point of mud flap. Pass small washers (SmWash) over the flap on to the threaded bolts. Install lock nuts (SSLnut) on the two
threaded mounting points. Thread a short screw (1SS) with small washer through the flap into the mounted clip (PolCl). Do not fully
tighten as you will be aligning the flap.
• (Figure T) Align outer edge of the flap by incrementally adjusting the lower portion of the flap and walking away from the vehicle
until the flap is perpendicular to even ground.
• (Figure U) You must adjust the inner mounting point by holding the outer edge of the assembly and gently bending the inner bracket
about a ¼”towards the rear of the vehicle, away from the tire to ensure adequate clearance during suspension compression. Tighten
all mounting screws and nuts only until snug against washer. Do not over tighten.
