Rally Armor 11-14 Subaru WRX & STI Sedan User Manual
Page 4
IMF19
Version 1.3 Release Date 10.22.2010
4

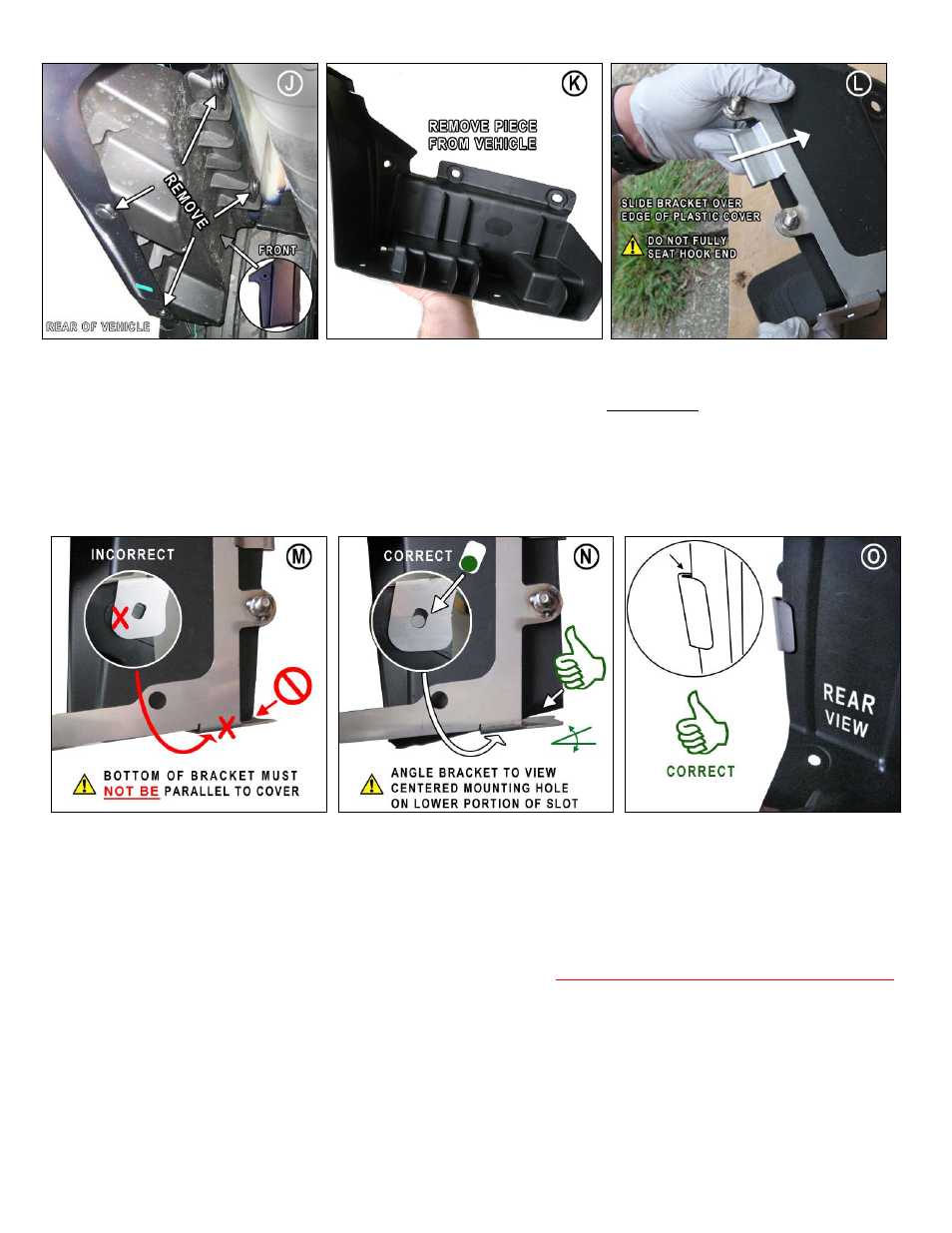

• (Figure M) Example of bracket
incorrectly
positioned. Lower portion of bracket should not be parallel to cover.
• (Figure N) Example of bracket
correctly
positioned. Mounting hole will be visible through the lower slot of bracket.
• (Figure O) Note proper tabbed end placement on cover. The components will align during re‐installation into bumper cover.
• (Figure P) Position the bumper piece assembly with bracket back on to vehicle. Position the bracket tabs over bumper cover.
• (Figure Q)
Important
‐
Check the make sure that the upper portion of bumper piece notch is installed correctly on the vehicle.
• (Figure R) Reinstall bumper piece with original OEM fasteners. For the lowest point underneath bumper cover, use the supplied
insert with plastic screw (Scw Ins).
Important‐ lower portion of bracket mounts BETWEEN BUMPER COVER and INNER BUMPER PIECE
