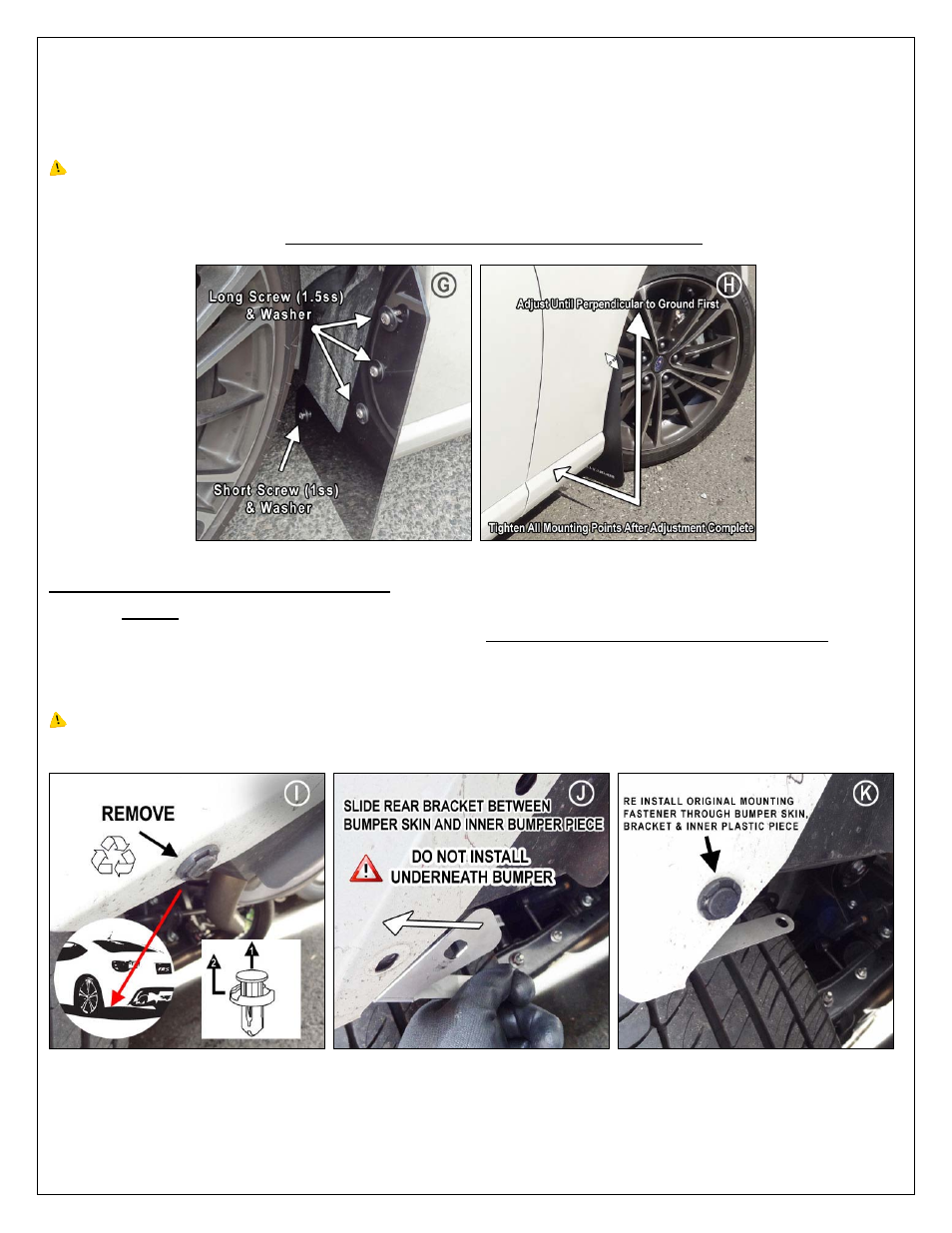

• (Figure G) Place the front mud flap against the corresponding mounting points with the logo facing toward the rear of the vehicle.
Thread long screws (1.5SS) with washers (SmWash) through the flap and into each the 3 outer edge mounted clips. On the innermost
mounting point of the bracket, use a short screw (1SS).
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IMPORTANT -Do not fully tighten. The mounting points are slotted to allow for movement and final alignment of flap.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
• (Figure H) Align outer edge of the flap by incrementally adjusting the angle of the flap and walking away from the vehicle until the
flap is perpendicular to even ground. Do not over tighten. Tighten all mounting screws only until snug.
Rear Mud Flap Installation
• (Figure I) Carefully remove the OEM fastener found underneath the bumper skin closest to the tire. Pry the inner portion out
with a small flathead screwdriver. Remove outer portion afterwards. You will reuse this fastener to mount the rear bracket.
• (Figure J) Slide the matching portion of the rear bracket BETWEEN the bumper skin, and the inner plastic bumper piece.
• (Figure K) Re-install the fastener you removed through the bumper skin, bracket, and the inner black plastic piece.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IMPORTANT (K): YOU MUST INSTALL THE FASTENER THROUGH ALL THE MOUNTING POINTS INCLUDING THE INNER PLASTIC PIECE
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
