Rally Armor 2013+ BRZ/FRS - Manual (Page 2)

IMF 23
Version 1.0 Release Date 07.17.2012
2

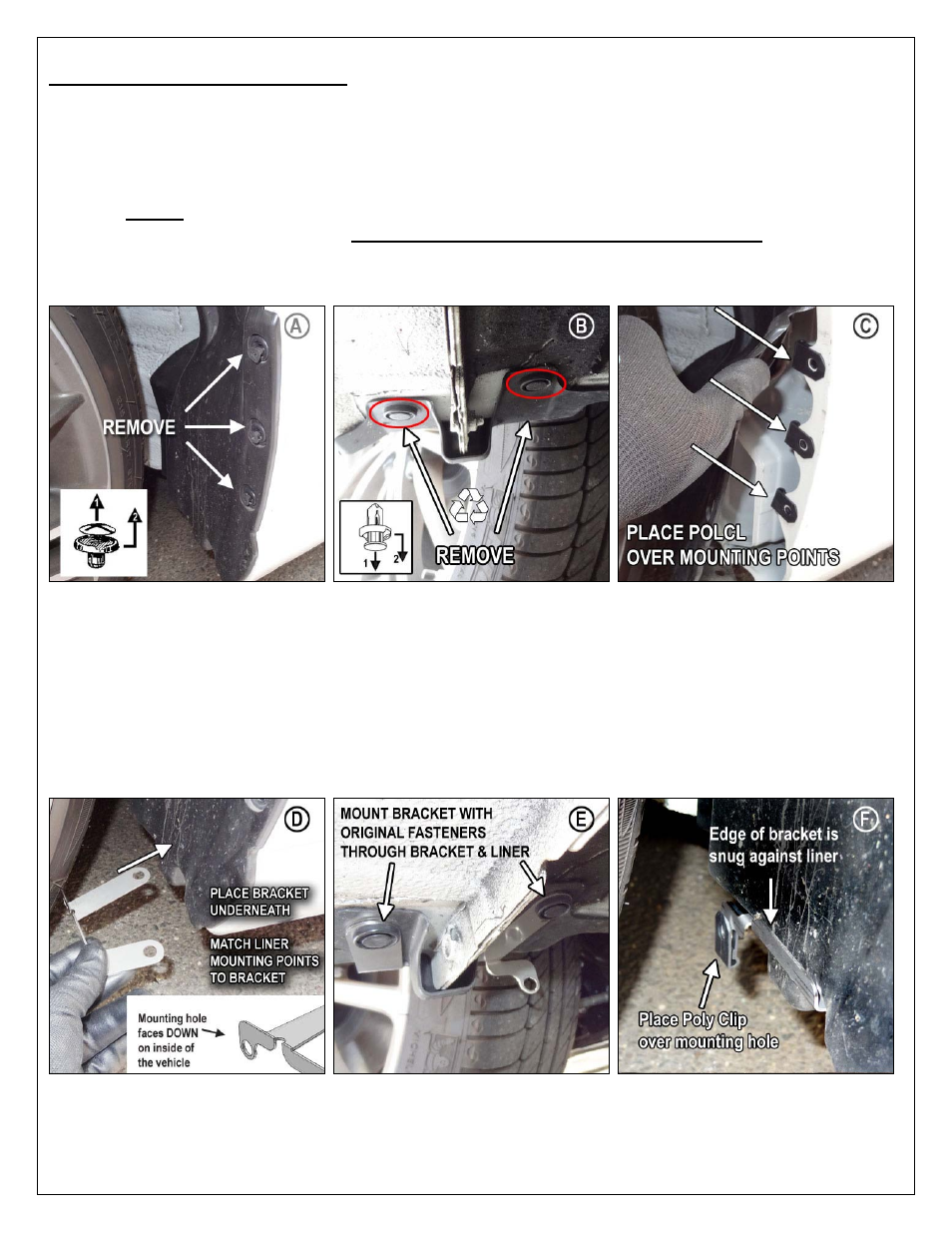

Front Mud Flap Installation
Begin by parking the vehicle on an even surface. Turn the steering wheel to allow access to the inner wheel well area.
• (Figure A) Remove the 3 outer OEM fender line fasteners. Using a small screwdriver, separate inner screw, then pry out entire
assembly.
• (Figure B) Carefully remove the two OEM fasteners located underneath the liner. Pry inner portion out first with a small flathead
screwdriver. Remove outer portion afterwards. You will be re-using these fasteners to mount the front bracket.
• (Figure C) Pull liner back slightly and place 3 supplied poly edge clips (PolCl ) over the 3 outer mounting tabs. Replace liner over clips.
• (Figure D) Place the front bracket underneath the fender liner. The inside front mounting point faces down towards the ground. The
longer of the two bracket legs mounts to the inside of the vehicle.
• (Figure E) Align the front bracket mounting points with fender liner mounting holes and install bracket to vehicle through liner using
the previously removed OEM retainers. The bracket will be immobilized when installed correctly.
• (Figure F) Ensure front facing portion of bracket is snug against liner place polygon clip (PolCl) over the interior mounting point of the
bracket.
