74 Installing System Components
CAUTION: The processor is held in its socket under strong pressure. Be aware
that the release lever can spring up suddenly if not firmly grasped.
9 Position your thumb firmly over the processor socket-release lever and
release the lever from the locked position.
10 Rotate the lever 90 degrees upward until the processor is released from the
socket. See Figure 2-14.

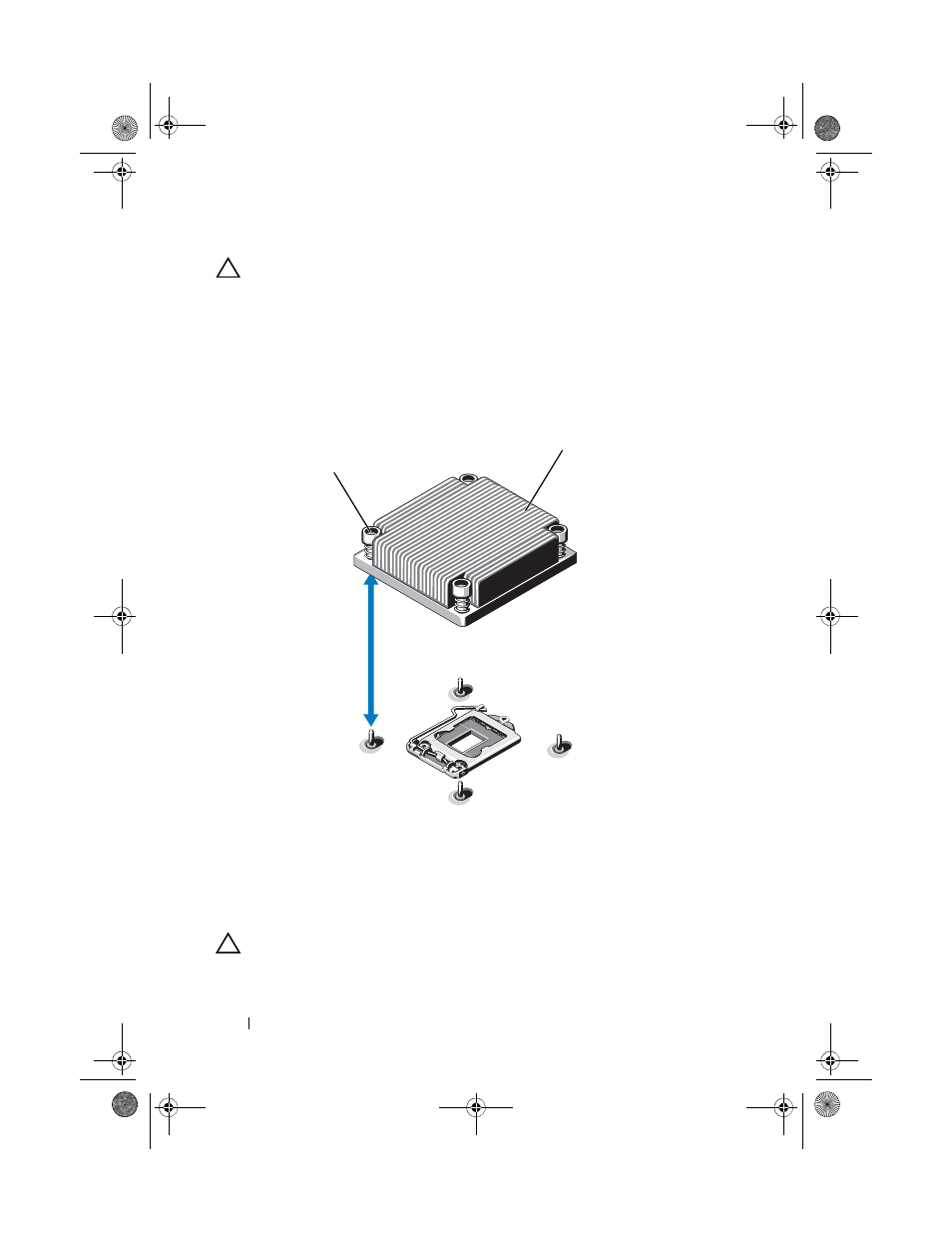

Figure 2-13. Removing and Installing the Heat Sink
11 Rotate the processor shield upward and out of the way. See Figure 2-14.
12 Lift the processor out of the socket and leave the release lever up so that
the socket is ready for the new processor.
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
1 heat-sink retention screws (4) 2 heat sink
1
2
