Installing System Components 51
Front Bezel
1 Unlock the keylock at the left end of the bezel.
2 Lift up the release latch next to the key lock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from
the system.

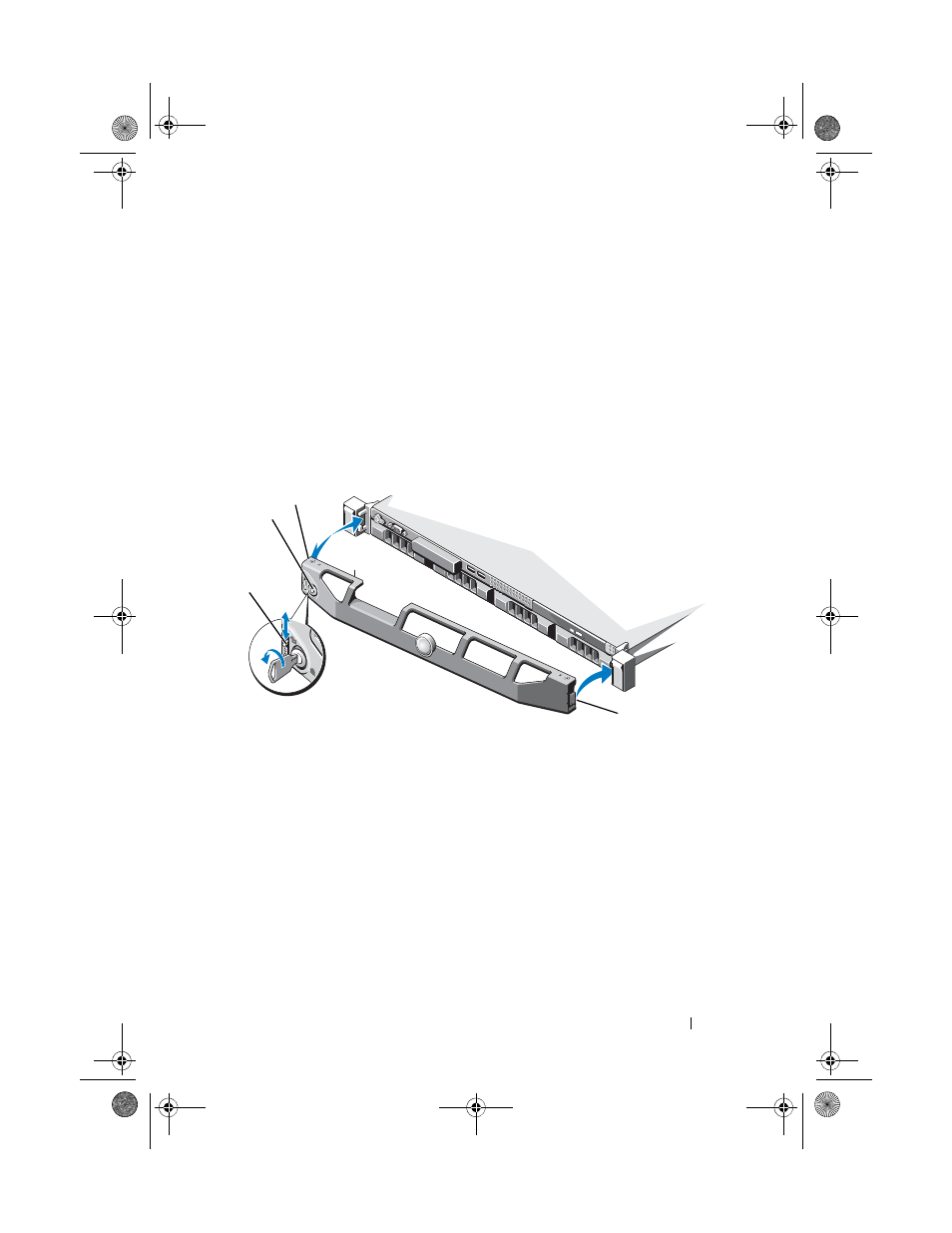

Figure 2-2. Removing and Installing the Front Bezel
To replace the bezel, hook the right end of the bezel onto the chassis, then fit
the free end of the bezel onto the system. Secure the bezel with the keylock.
See Figure 2-2.
1 release latch 2 keylock
3 front bezel 4 hinge tab
