About Your Solution 17
PowerVault NX3500 Back-Panel Features and
Indicators

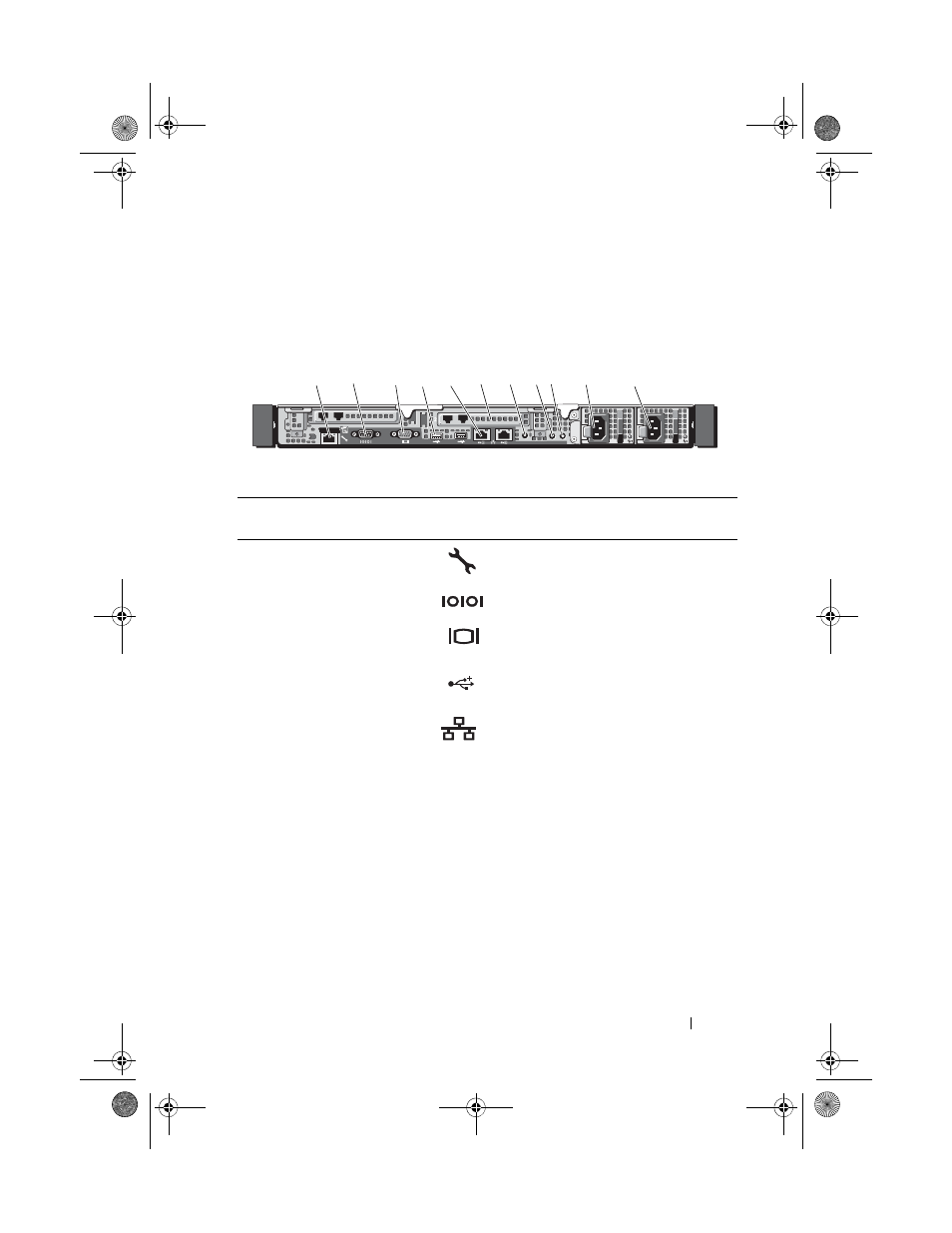

Figure 1-5. Back-Panel Features and Indicators
Item Indicator, Button, or
Connector Icon Description
1 iDRAC6 Enterprise
port
Dedicated management port for the
iDRAC6 Enterprise card.
2 Serial connector Connects a serial device to the system.
3 Video connector Connects a VGA display to the system.
4 USB connectors (2) Connect USB devices to the system.
The ports are USB 2.0-compliant.
5 Ethernet connectors
(2)
Embedded 10/100/1000 NIC
connectors.
6 Dual NIC ports (2) PCI Express (generation 2) expansion
slot (full-height, half-length).
7 Active ID CMA
connector
Connector for attaching a system
indicator extension cable that is used
on a cable management arm.
1 2 3 6 7 8 9 10 11 4 5
