Back to Contents Page

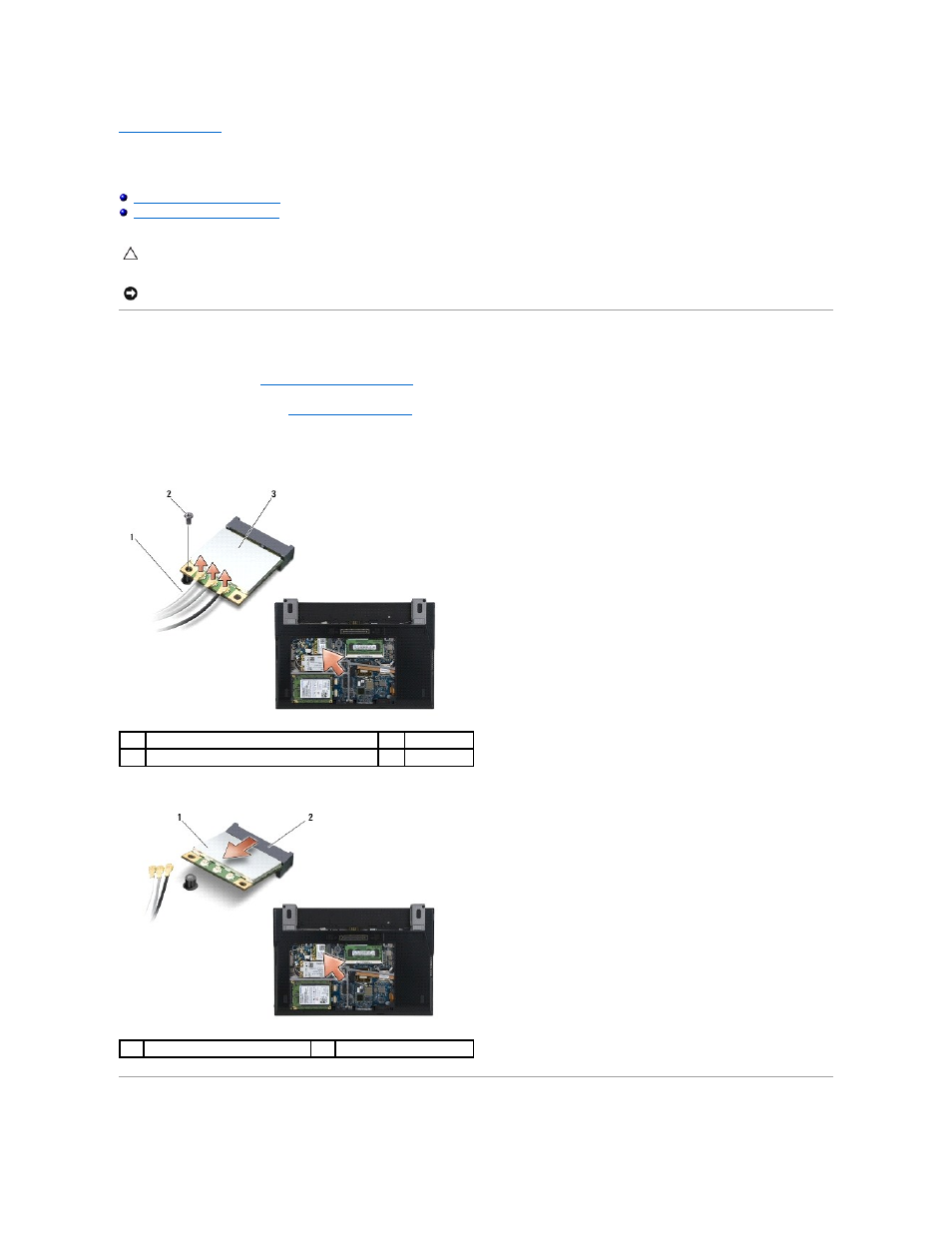

WLAN/WiMax Card
Dell™ Latitude™ E4200 Service Manual
Removing the WLAN/WiMax Card
1.
Follow the procedures in
Before Working on Your Computer
.
2.
Remove the service panel (see
Removing the Service Panel
).
3.
Disconnect the antenna cables from the card.
4.
Remove the M2 x 3-mm screw. The card will pop up at a 45-degree angle.
5.
Slide the card out of the card connector on the system board.
Replacing the WLAN/WiMax Card
CAUTION:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
NOTICE:
Insert a WLAN or WiMax card only into the slot labeled WLAN/WiMax.
1
antenna cables (2 or 3)
2
screw
3
WLAN/WiMax card
1
WLAN/WiMax card
2
card connector
