Latitude ON™ Card
Dell™ Latitude™ E4200 Service Manual
Removing the Latitude ON Card
Replacing the Latitude ON Card

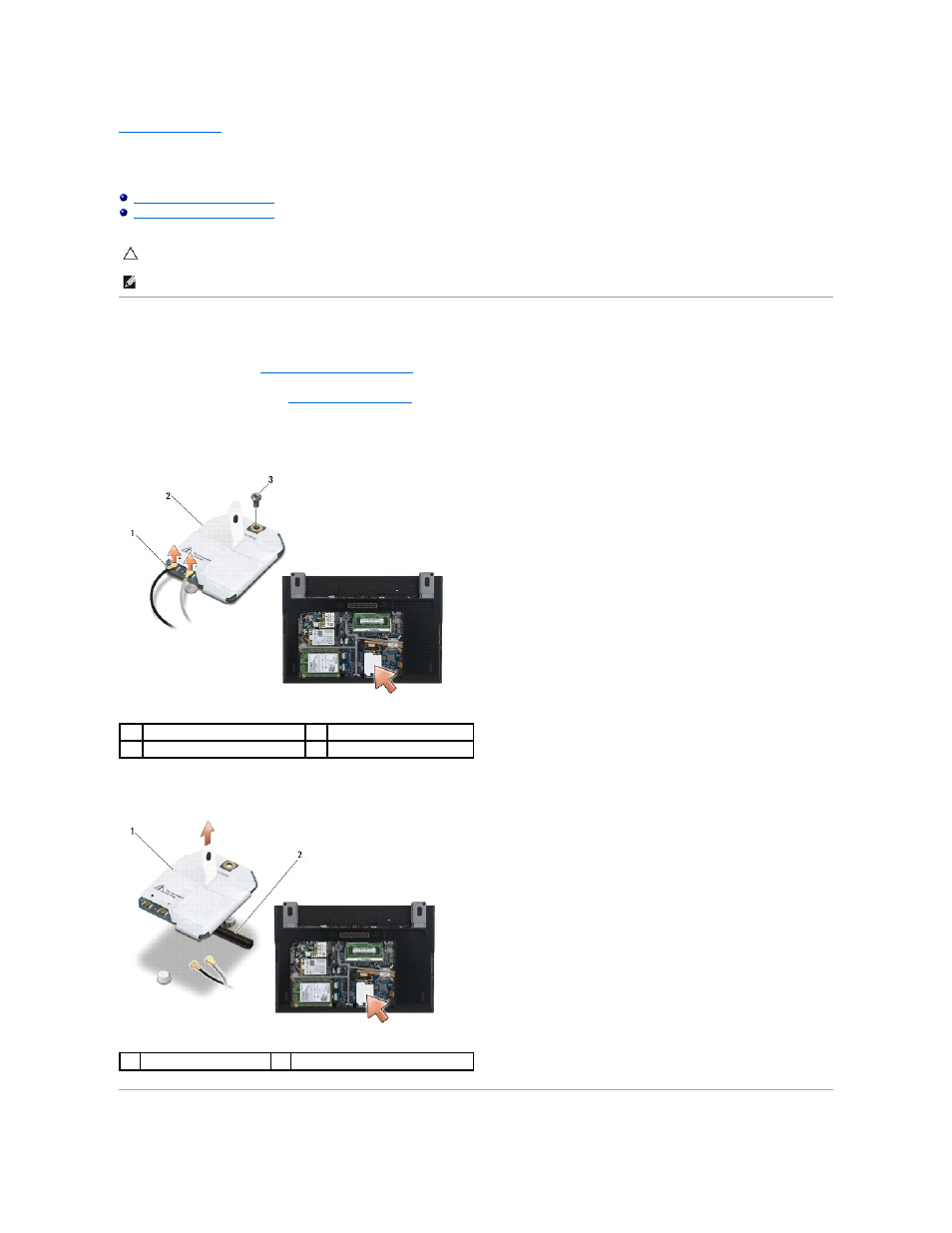

Removing the Latitude ON Card
1. Follow the procedures in Before Working on Your Computer .
2. Remove the service panel (see Removing the Service Panel ).
3. Disconnect the antenna cables from the card.
4. Remove the M2 x 3-mm screw.
5. Pull the card up to disconnect it from the system board connector.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
NOTE: The Latitude ON™ card is optional and may not be present in some computers.
1 antenna cables (2) 2 Latitude ON card
3 screw
1 Latitude ON card 2 system board connector
