Connect the Latitude ON card cables to the connectors on the front left side of the board, connecting the gray cable to the connector marked with a "G"
and the black cable to the connector marked with a "B".
5. Replace the WLAN/WiMax card (see Replacing the WLAN/WiMax Card ).
6. Replace the service panel (see Replacing the Service Panel ).
7. Follow the procedures in After Working on Your Computer .
Back to Contents Page
NOTE: It is important to reconnect all of the cables to their correct posts when replacing related components.

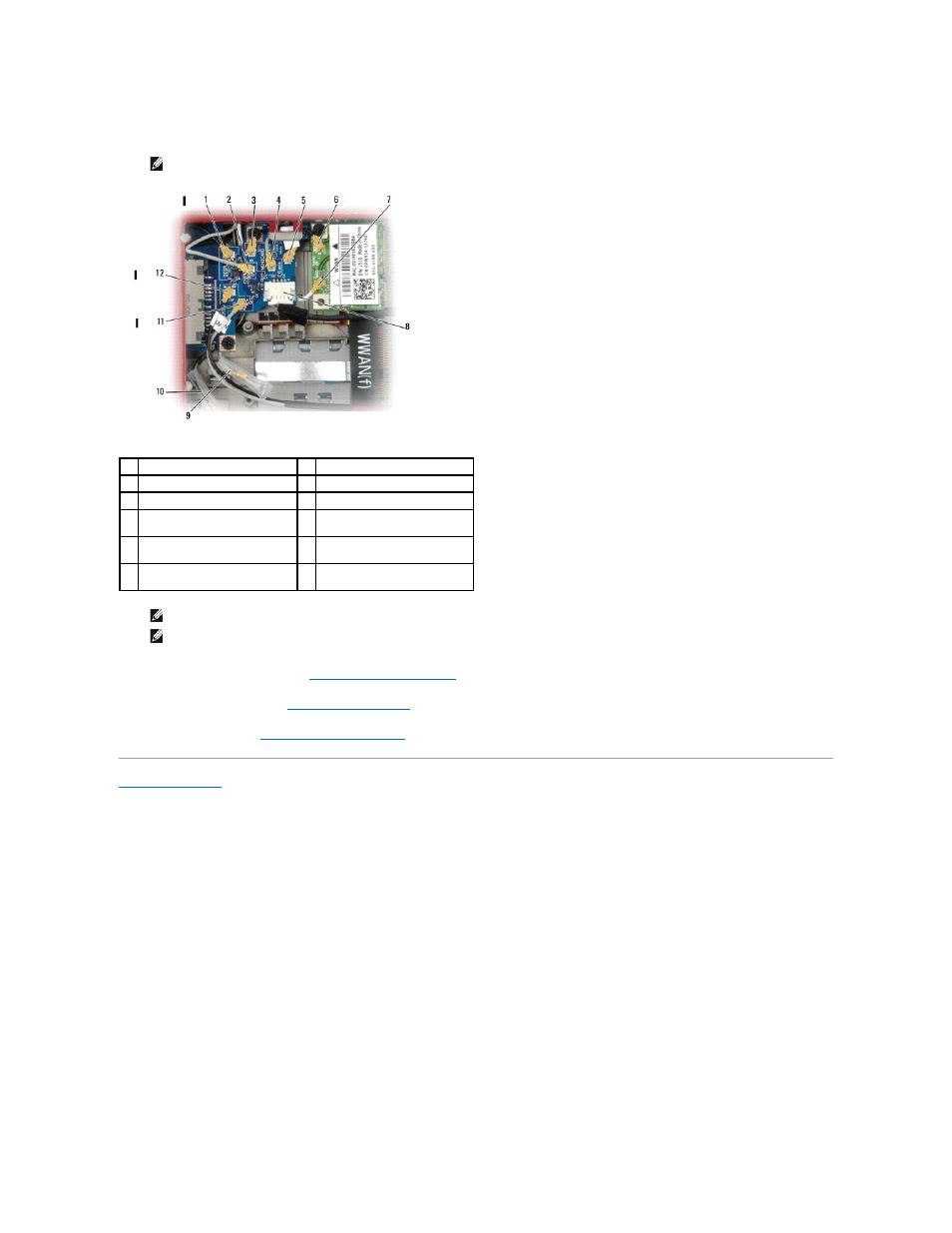

1 black WLAN antenna (from LCD) 2 grey WLAN antenna (from LCD
3 black WLAN relay cable 4 grey WLAN relay cable
5 grey WLAN antenna holder 6 black WLAN antenna post
7 white WLAN antenna cable (from
LCD) 8 power cable (from system board)
9 grey and white WWAN antenna
(from LCD) 10 black and grey WWAN antenna
(from LCD)
11 grey cable (from Latitude ON
card)
12 black cable (from Latitude ON
card)
NOTE: Grey WLAN antenna holder is used as a holder if the WLAN card does not have a grey antenna post.
NOTE: The white WLAN anteena can be routed over or under the RSB.
