Coin-Cell Battery
Dell™ Latitude™ E4200 Service Manual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working on Your Computer .
2. Remove the LED cover (see Removing the LED Cover ).
3. Remove the keyboard (see Removing the Keyboard ).
4. Pry up the coin-cell battery to release the double-sided adhesive tape on the bottom.
5. Lift the coin-cell battery out of the computer.
6. Disconnect the battery cable from the system board.
Replacing the Coin-Cell Battery
1. Connect the coin-cell battery cable to the system board.
2. Insert the coin-cell battery into the computer.
3. If you are re-installing the old coin-cell battery, press down to seal the tape on the bottom.
If you are installing a new coin-cell battery, remove the adhesive backing from the battery and slide the battery under the tab. Press to seal the tape on
the bottom.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.

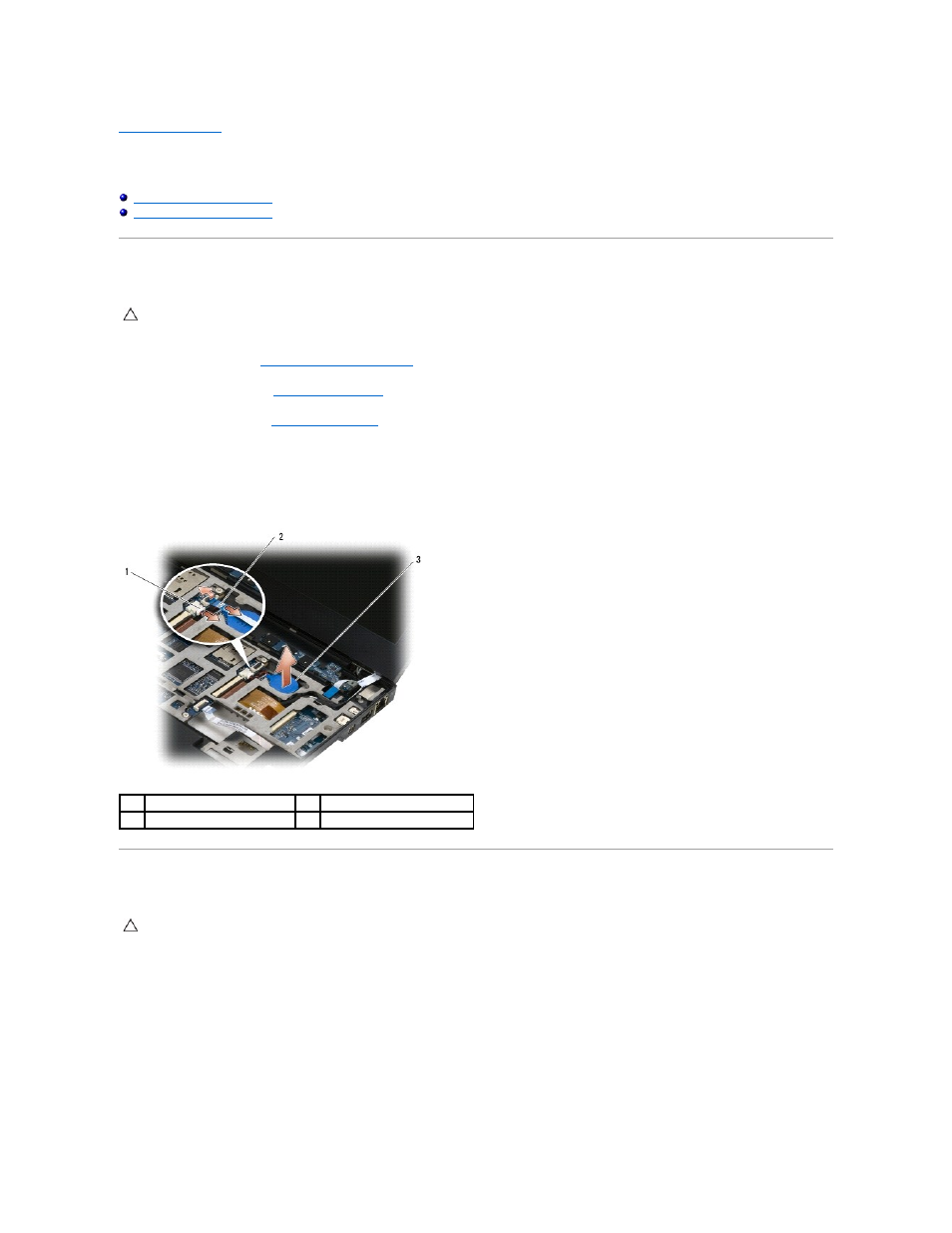

1 battery cable 2 LED board cable
3 coin-cell battery
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
