Smart Card Reader
Dell™ Latitude™ E4200 Service Manual
Removing the Smart Card Reader
Replacing the Smart Card Reader
Removing the Smart Card Reader
1. Follow the instructions in Before Working on Your Computer .
2. Remove the service panel (see Removing the Service Panel ).
3. Remove the WLAN and WWAN cards (see Removing the WLAN/WiMax Card and Removing a WWAN Card ).
4. Remove the memory module (see Removing the Memory Module ).
5. Remove the solid state drive (see Removing the Solid State Drive and Cable Assembly ).
6. Remove the LED cover (see Removing the LED Cover ).
7. Remove the keyboard (see Removing the Keyboard ).
8. Remove the module with Bluetooth ® wireless technology (see Removing the Card With Bluetooth Wireless Technology ).
9. Remove the display assembly (see Removing the Display Assembly ).
10. Remove the coin-cell battery (see Removing the Coin-Cell Battery ).
11. Remove the palm rest assembly (see Removing the Palm Rest Assembly ).
12. Remove the system board assembly (see Removing the System Board Assembly ).
13. Remove the M2 x 3-mm screw from the smart card reader.
14. Slide the smart card reader to the right to free the tabs from the base assembly, and lift the reader out of the base assembly.
Replacing the Smart Card Reader
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.

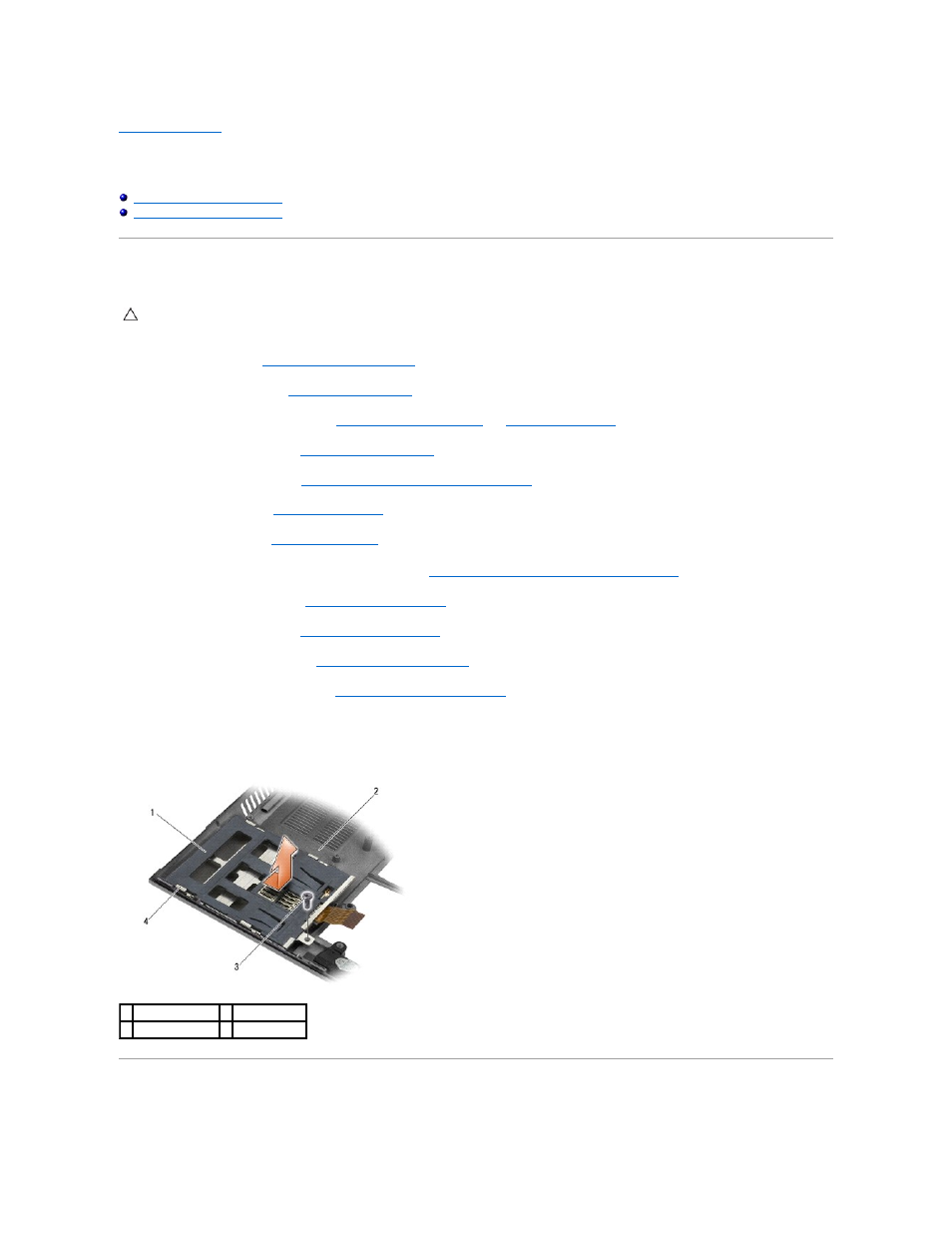

1 smart card reader 2 base assembly
3 screw 4 tabs
