1-14 Dell PowerVault 51F 8-Port Fibre Channel Switch Installation and Troubleshooting Guide

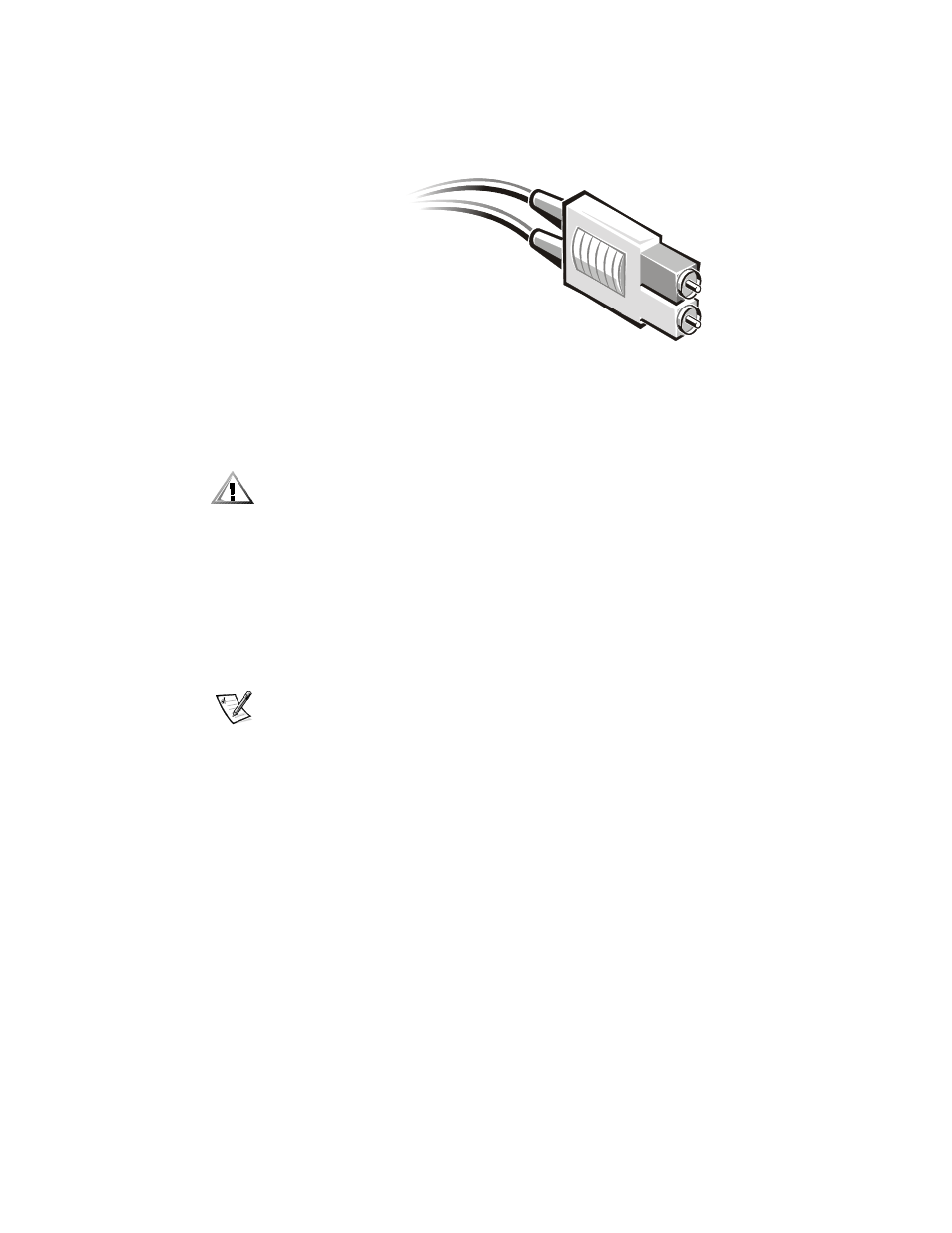

Figure 1-9. Dual SC Fiber-Optic Plug Connector
The connectors are indexed and must be inserted into the GBIC module’s connector
in proper alignment. In most cases, one of the two connector plugs is a different color
to aid in proper connector alignment.
CAUTION: Remove the protective plug from the GBIC module. Do not force
the fiber-optic plug into the GBIC module as you may damage the connec-
tor, the GBIC module, or both. Make certain the fiber surface is free of dust
or debris before inserting the connector into the GBIC module.
Ethernet Connection
Connecting an existing Ethernet 10/100BASE-T local area network (LAN) to the switch
via the front panel RJ-45 connector gives access to the switch’s internal Simple Net-
work Management Protocol (SNMP) agent, allowing remote Telnet and Web access
for remote monitoring and testing.
NOTES: The connection is only for Telnet, SNMP agent, and the Web-based server
access. No Fibre Channel services are available via this connection.
Only one Telnet session can be opened at a time.
Serial Port Connection
The PowerVault 51F switch includes a serial port (see Figure 1-10) used to set the
Internet Protocol (IP) address. The serial port is used to set the IP address when set-
ting up or reinitializing a switch. The serial port settings are as follows:
•
8 bit
•
No parity
•
One stop bit
•
9600 baud
•
HyperTerminal
