Figure 1-3, Opening the latch on the door -6 – Dell PowerVault 51F (8P Fibre Channel Switch) User Manual
Page 34
1-6
Dell PowerVault 51F 8-Port Fibre Channel Switch Installation and Troubleshooting Guide

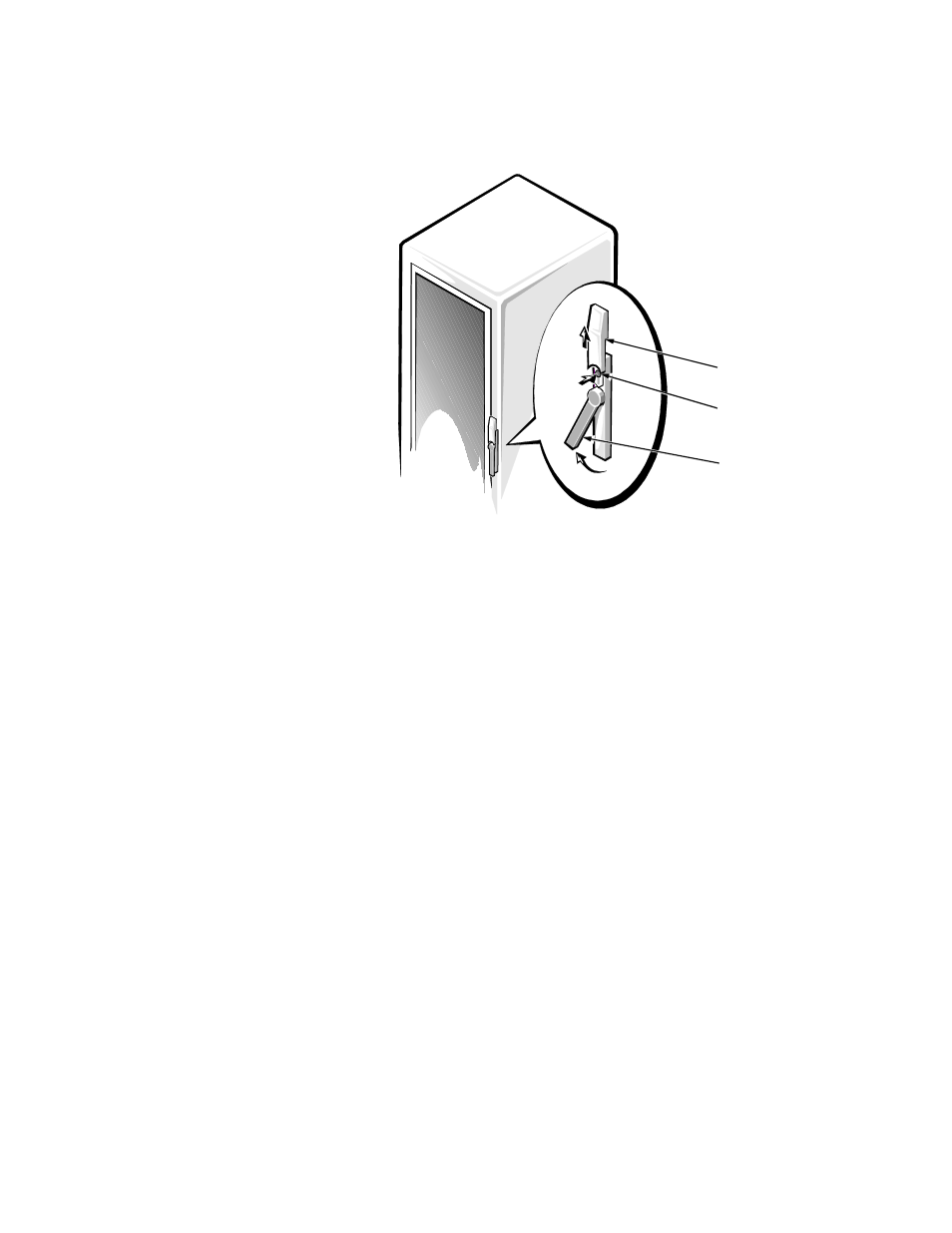

Figure 1-3. Opening the Latch on the Door
2.
Remove the front door (see Figure 1-4):
a.
One person should grasp the top of the door to stabilize it. The other person
should grasp the bottom of the door.
b.
The person holding the bottom of the door should press the hinge release
lever on the bottom hinge and then pull the bottom of the door away from
the rack a few inches.
c.
The person holding the top of the door should press the hinge release lever
on the top hinge and then pull the door away from the rack.
push button
push-button
cover
handle
