Installing System Components 85

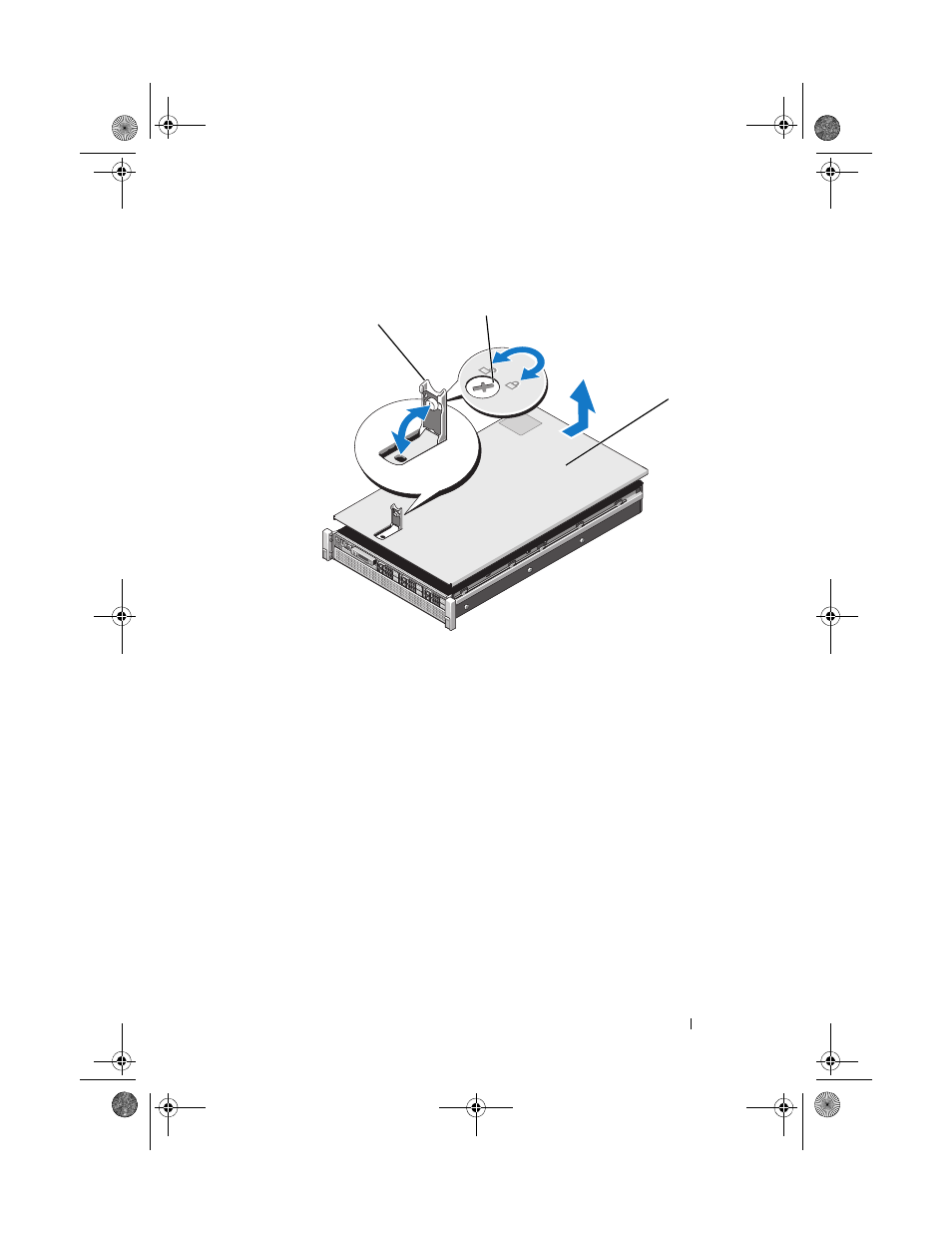

Figure 3-3. Opening and Closing the System
Closing the System
1 Place the cover onto the chassis and offset it slightly toward the back of the
system, so that the slots on the sides of the cover fit into the corresponding
hooks on the sides of the chassis. See Figure 3-3.
2 Slide the cover toward the front of the chassis till it snaps in position.
3 Push down the latch to secure the cover into the closed position.
4 Rotate the latch release lock in the clockwise direction to secure the cover.
1 latch 2 latch release lock
3 cover
