76 About Your System

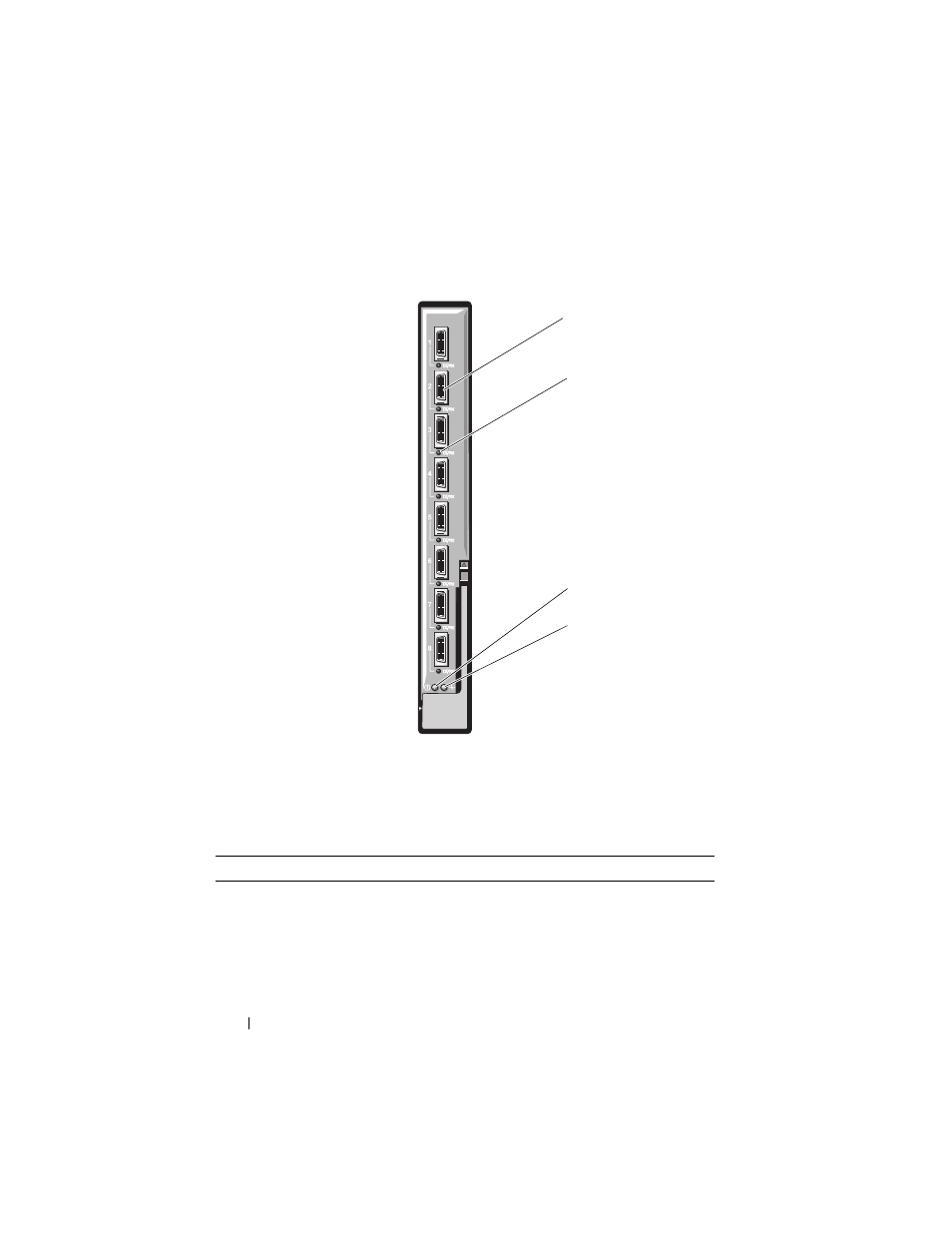

Figure 1-31. Cisco SFS M7000e Infiniband Switch Module Features
1 Infiniband ports (8) 2 port status indicator (8)
3 diagnostic status indicator 4 power indicator
Table 1-21. Cisco SFS M7000e Infiniband Switch Indicators
Indicator Type Pattern Description
Infiniband
port status
indicator
Off Link error or Subnet Manager not operating
Green flickering I/O activity on port
Green on
Link established
3
1
4
2
