182 Installing Blade Components

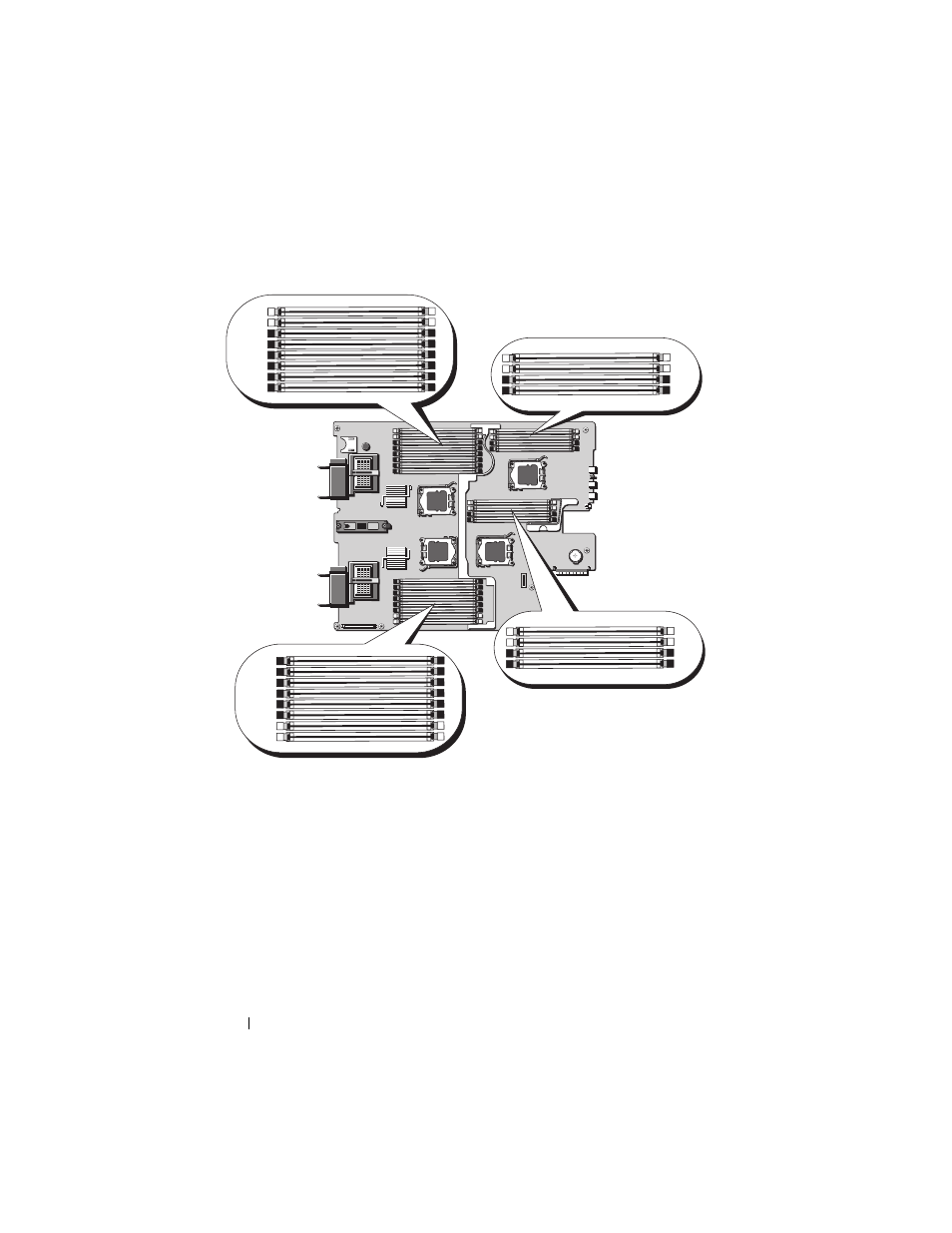

Figure 3-15. Memory Locations – PowerEdge M905
General Memory Module Installation Guidelines – PowerEdge M905
To ensure optimal performance of your system, observe the following
guidelines when configuring your system memory:
• Memory modules must be installed in pairs, beginning with the first two
sockets in each set of memory modules. These sockets are marked by white
retention levers.
• All memory modules in the blade must be identical in speed and
technology. The memory modules in each pair must be the same size.
