Installing Blade Components

System Memory

–

PowerEdge M710HD

Your system supports DDR3 registered DIMMs (RDIMMS).
Eighteen memory sockets are located on the system board, organized in three

channels per processor with three DIMMs per channel. This configuration

supports up to three 2 GB, 4 GB, 8 GB and up to two16 GB RDIMMs per

channel, for a total of up to 192 GB. Single-rank, dual-rank, and quad-rank

RDIMMs are supported.

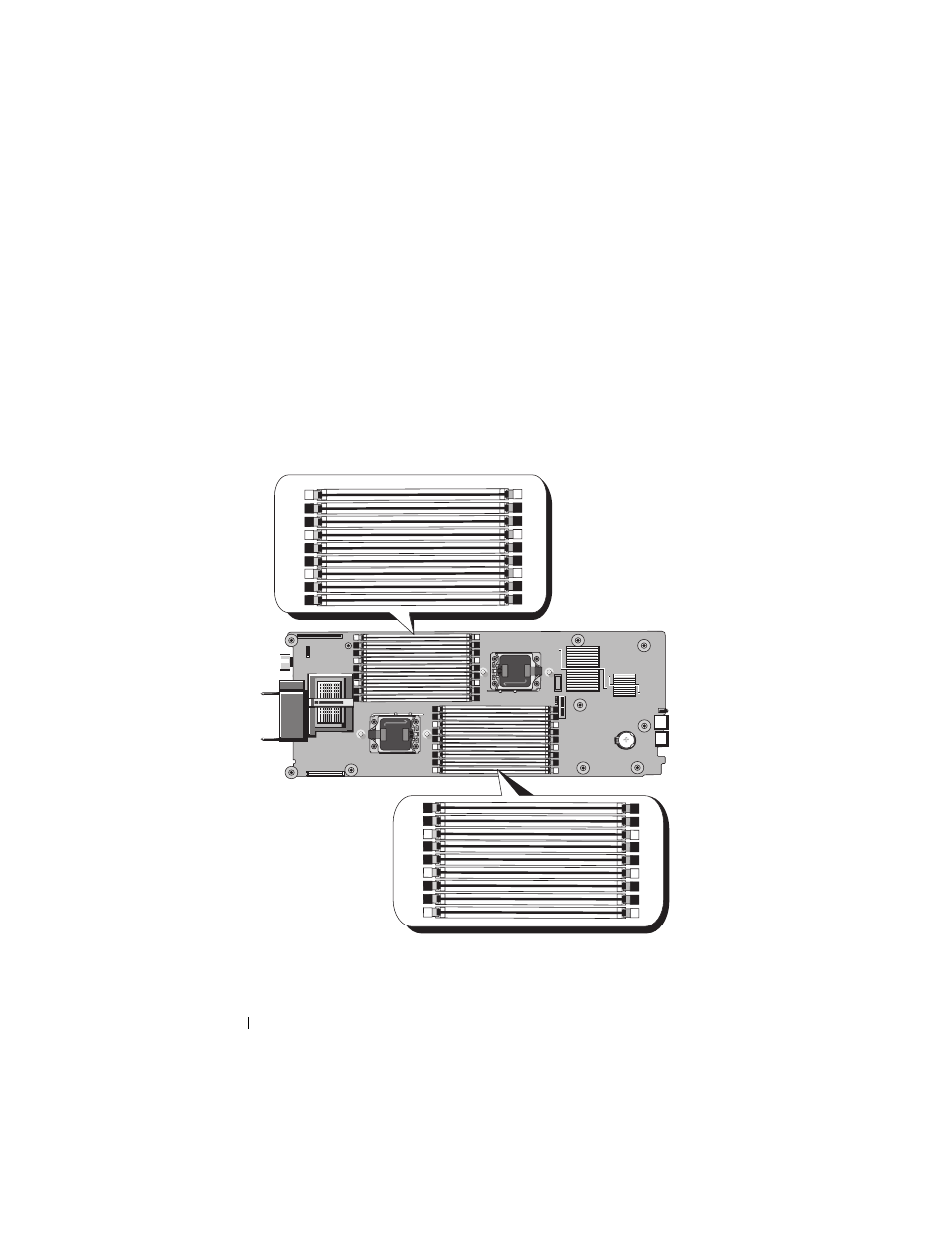

Figure 3-18. Memory Locations

– PowerEdge M710HD

Channel 2

(B1, B4, B7)

Channel 1

(B2, B5, B8)

Channel 0

(B3, B6, B9)

Channel 0

(A3, A6, A9)

Channel 1

(A2, A5, A8)

Channel 2

(A1, A4, A7)

CPU2

CPU1
