Installing Enclosure Components

299

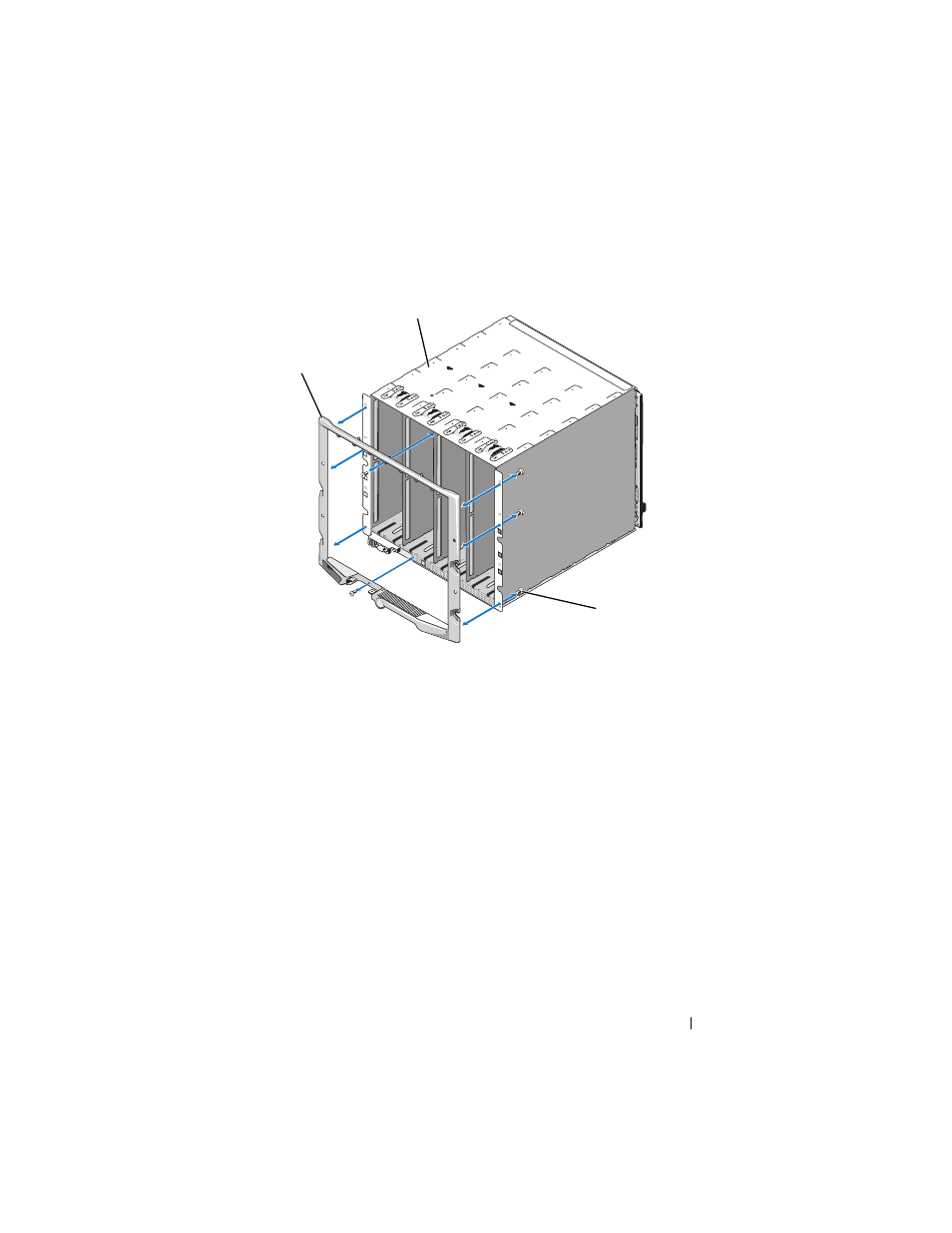

Figure 4-7. Removing and Installing the Bezel

Installing the Enclosure Bezel

1 Attach the bezel to the enclosure using the screws. See Figure 4-7.
2 Connect the ribbon cable to the LCD module, and reinstall the cover

plate.

1

bezel

2

enclosure

3

screws (8)

1

2

3
