168 Installing Blade Components

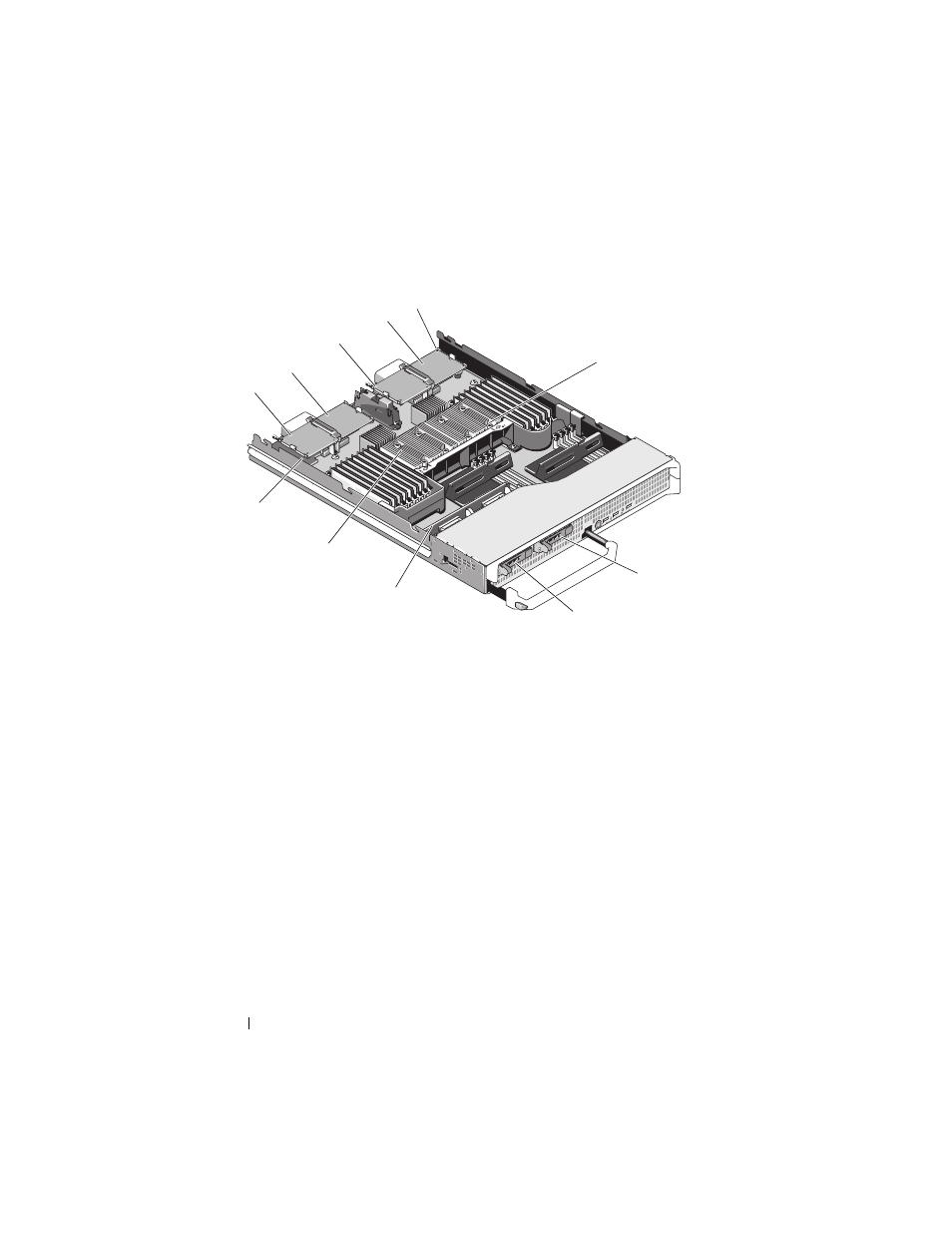

Figure 3-10. Inside a Full-Height Blade (PowerEdge M805)
1 optional mezzanine card 1 -
Fabric C
2 optional mezzanine card 2 -
Fabric B
3 optional mezzanine card 3 -
Fabric C
4 optional mezzanine card 4 -
Fabric B
5 SD card location 6 processor CPU2 and heat sink
7 hard drive 1 8 hard drive 0
9 hard-drive backplane 10 processor CPU1 and heat sink
11 video riser card
1
6
7
8
10
2
3
4
9
5
11
