Installing Blade Components 221

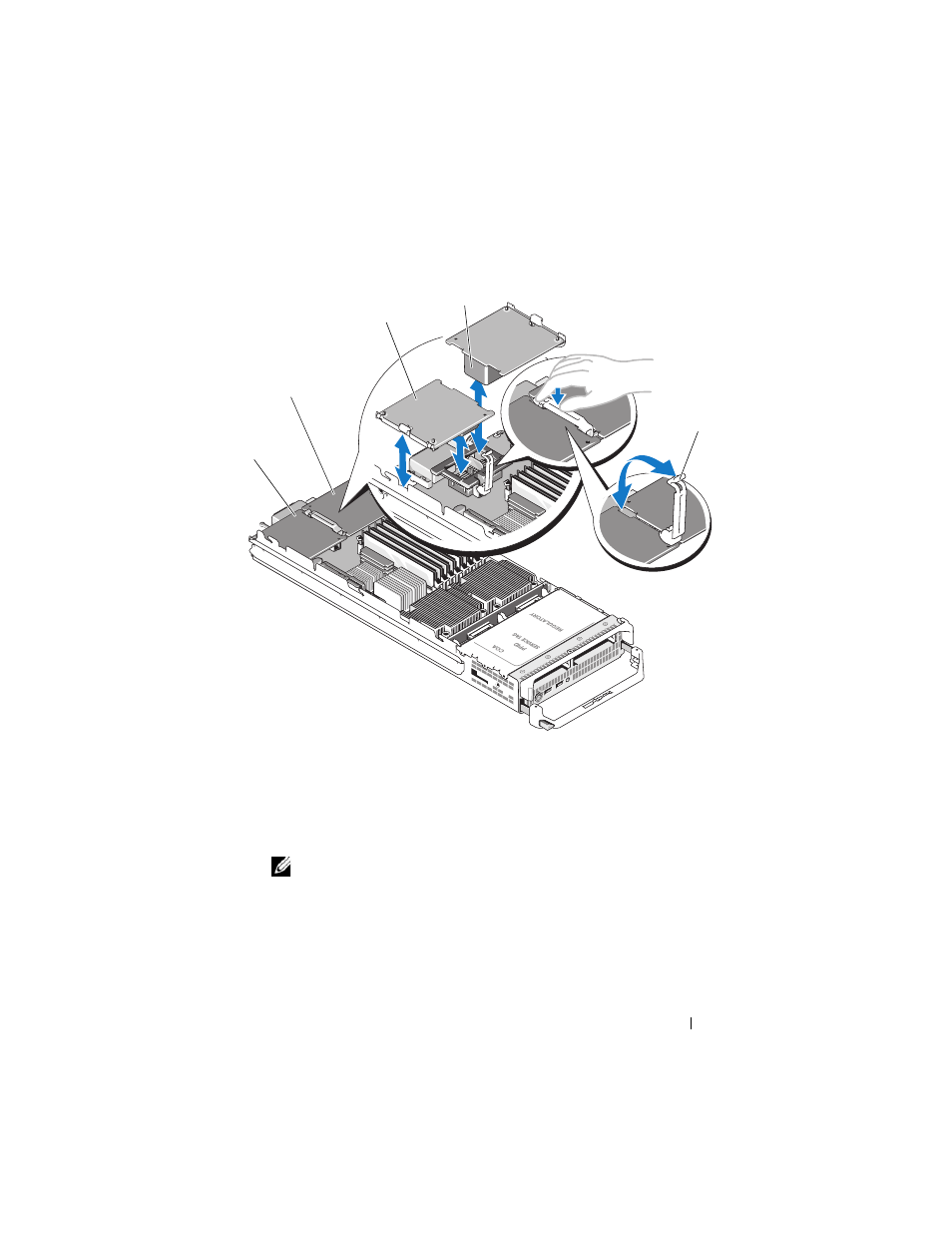

Figure 3-25. Installing and Removing a Mezzanine Card - Half-Height Blades
4 If present, remove the connector cover from the mezzanine card bay.
NOTE: Hold the mezzanine card by its edges only.
5 Mezzanine cards are designed to fit in either card slot. Rotate the card to
align the connector on the bottom of the mezzanine card with the
corresponding socket on the blade board.
1 Fabric C mezzanine card slot 2 Fabric B mezzanine card slot
3 mezzanine card 4 mezzanine card connector
5 retention latch
