344 System Board Information
PowerEdge M805 System Board

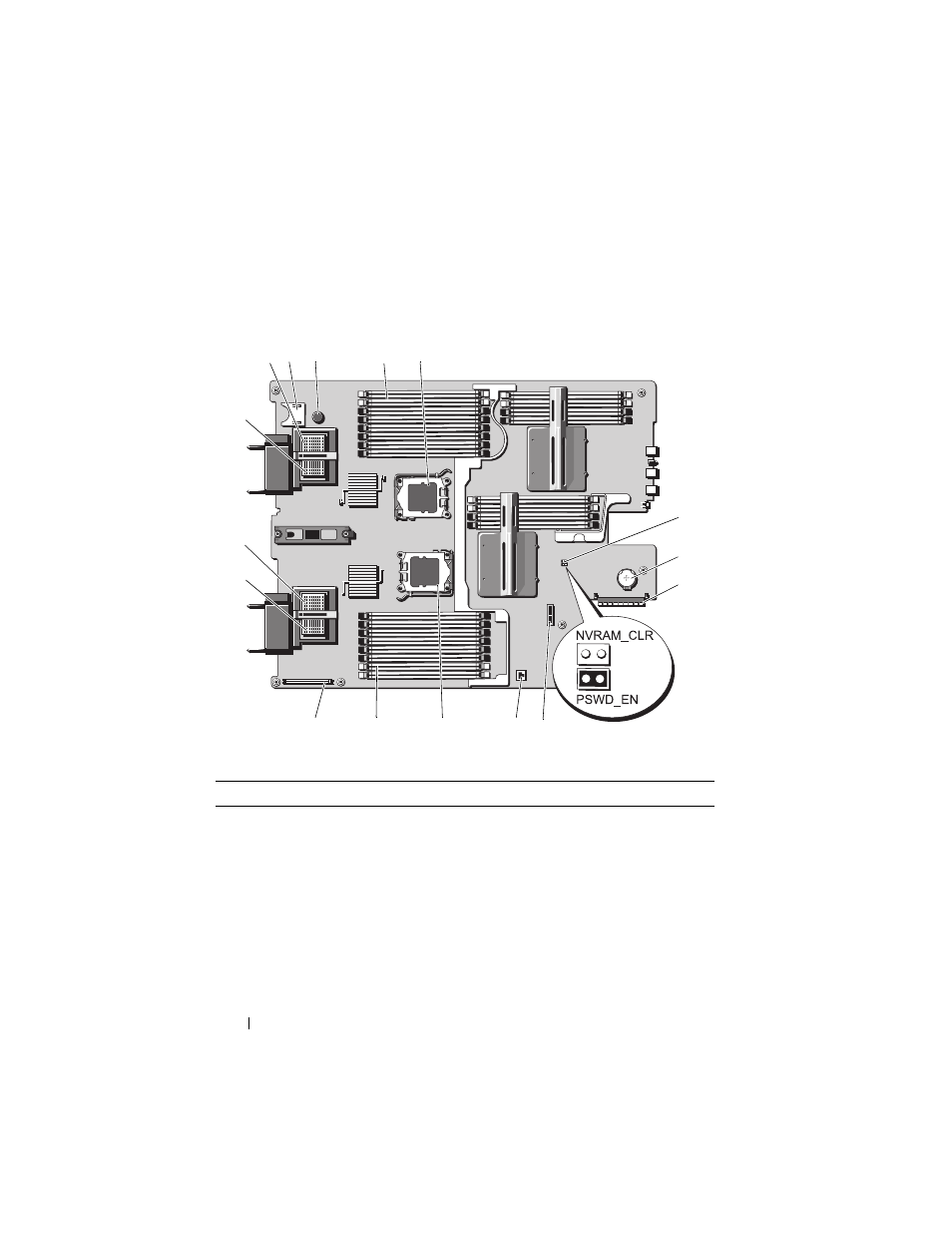

Figure 7-4. PowerEdge M805 System Board Connectors
Table 7-12. PowerEdge M805 System Board Connectors
Connector Description
1 MEZZ4_FAB_B Mezzanine card connector 4 Fabric B
2 - SD card connector
3 - System board retention pin
4 B1 – B8 Memory modules B1 – B8
5 CPU2 Processor 2 socket
1
16
2 3 4 5
7
6
9 10 13 11 12
15
14
8
