342 System Board Information
PowerEdge M905 System Board

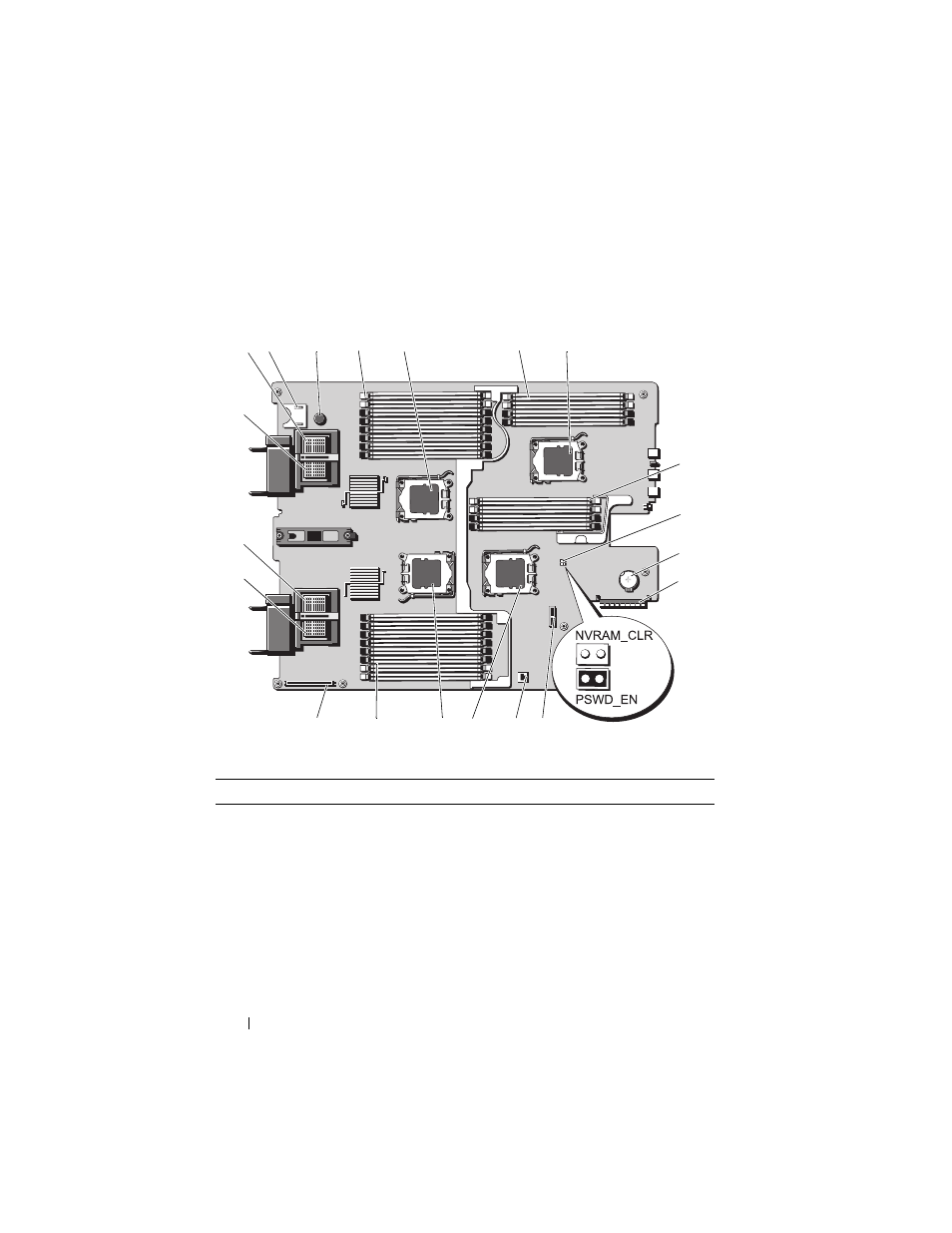

Figure 7-3. PowerEdge M905 System Board Connectors
Table 7-11. PowerEdge M905 System Board Connectors
Connector Description
1 MEZZ4_FAB_B Mezzanine card connector 4 Fabric B
2 - SD card connector
3 - System board retention pin
4 B1 – B8 Memory modules B1 – B8
5 CPU2 Processor 2 socket
6 D1 – D4 Memory modules D1 – D4
7 CPU4 Processor 4 socket
1
20
2 3 4 5 6 7
8
10
9
12 13 17 15 16
19
18 11
14
