System Board Information

357

PowerEdge M600 System Board

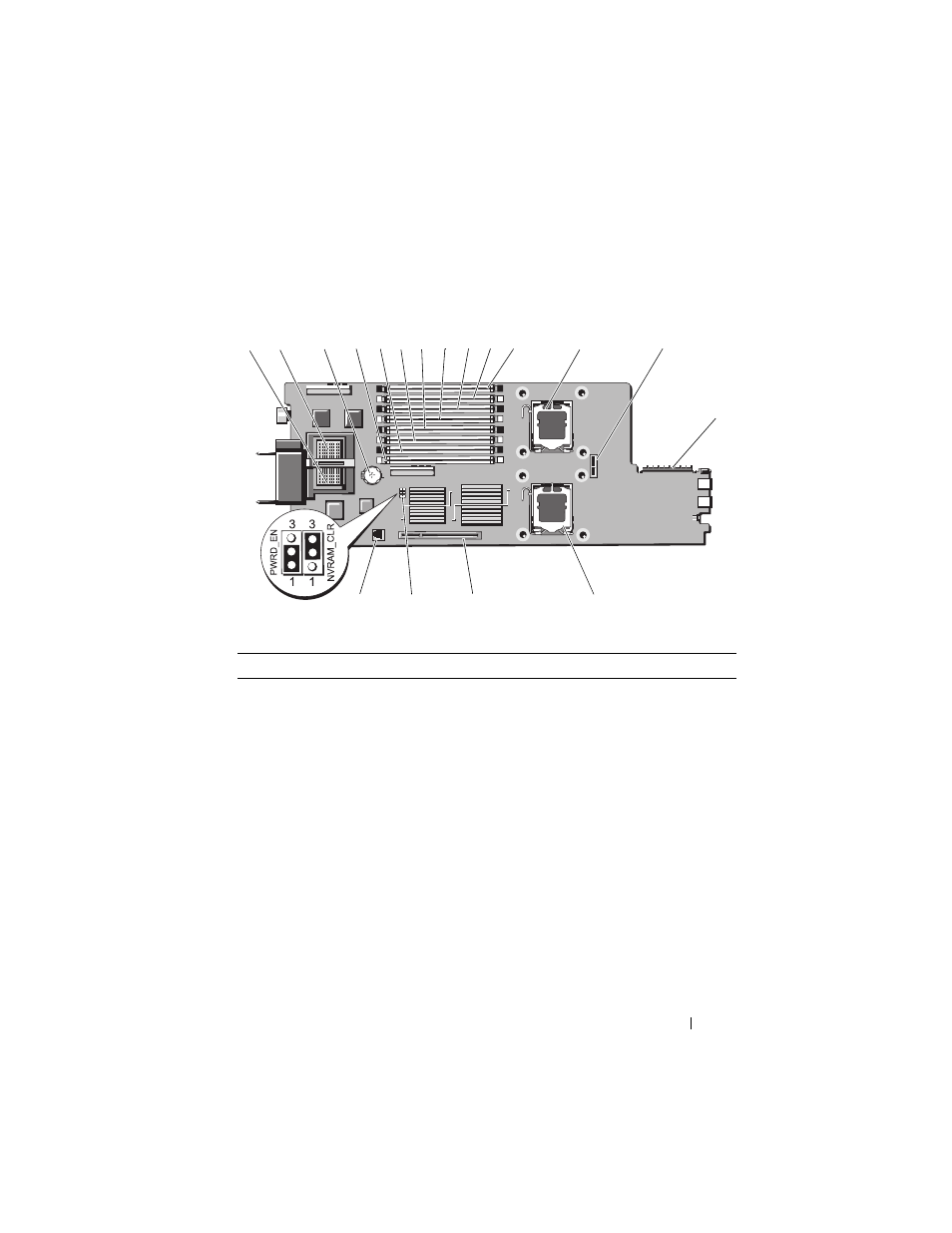

Figure 7-13. PowerEdge M600 System Board Connectors

Table 7-19. PowerEdge M600 System Board Connectors

Connector

Description

1

-

Mezzanine card connector - Fabric C

2

-

Mezzanine card connector - Fabric B

3 BATTERY

Connector for the 3.0 V coin battery

4 1

Memory module connector, slot 1

5 5

Memory module connector, slot 5

6 2

Memory module connector, slot 2

7 6

Memory module connector, slot 6

8 3

Memory module connector, slot 3

9 7

Memory module connector, slot 7

10 4

Memory module connector, slot 4

11 8

Memory module connector, slot 8

12 CPU1

Processor 1 socket

2

1

4

5 6 7 8 9 10 11

12

13

14

15

16

17

18

3
