Planning: RAID Controller Modules
RAID Controller Module Connectors and Features

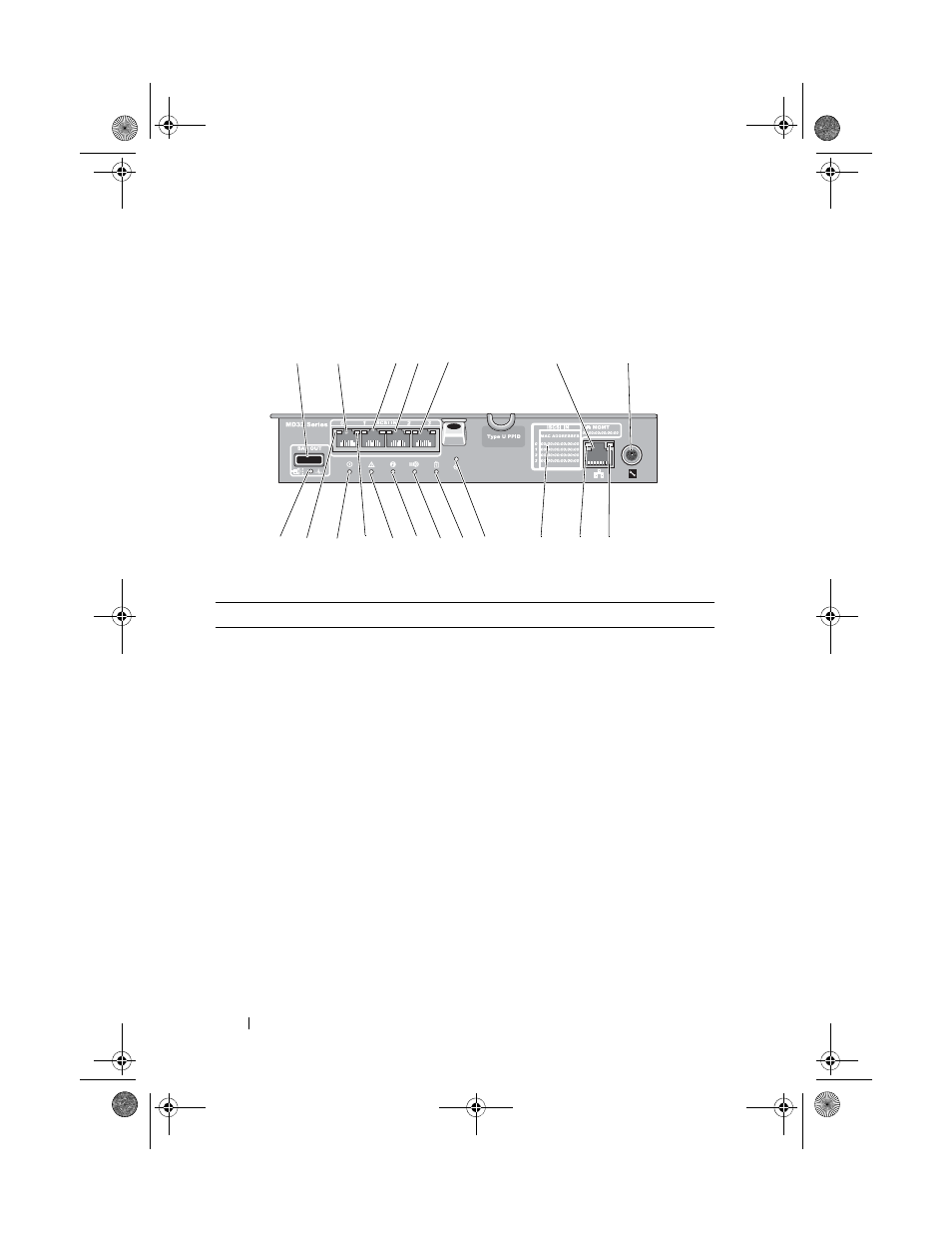

Figure 3-1. MD3200i Series iSCSI RAID Controller Module
Item Component
Function
1
SAS OUT port
Provides SAS connection for cabling to an expansion
enclosure.
2
iSCSI IN port 0
Provides host-to-controller iSCSI 1Gbps Ethernet
connection.
3
iSCSI IN port 1
Provides host-to-controller iSCSI 1Gbps Ethernet
connection.
4
iSCSI IN port 2
Provides host-to-controller iSCSI 1Gbps Ethernet
connection.
5
iSCSI IN port 3
Provides host-to-controller iSCSI 1Gbps Ethernet
connection.
6
Management port
ethernet connector
Provides a 100/1000 Mbps Ethernet connection for
out-of-band management of the enclosure.
7
Debug port
Dell support only.
1
2
5
6
7
8
11 12
14 15 16
9
10
13
18 19
17
3
4
