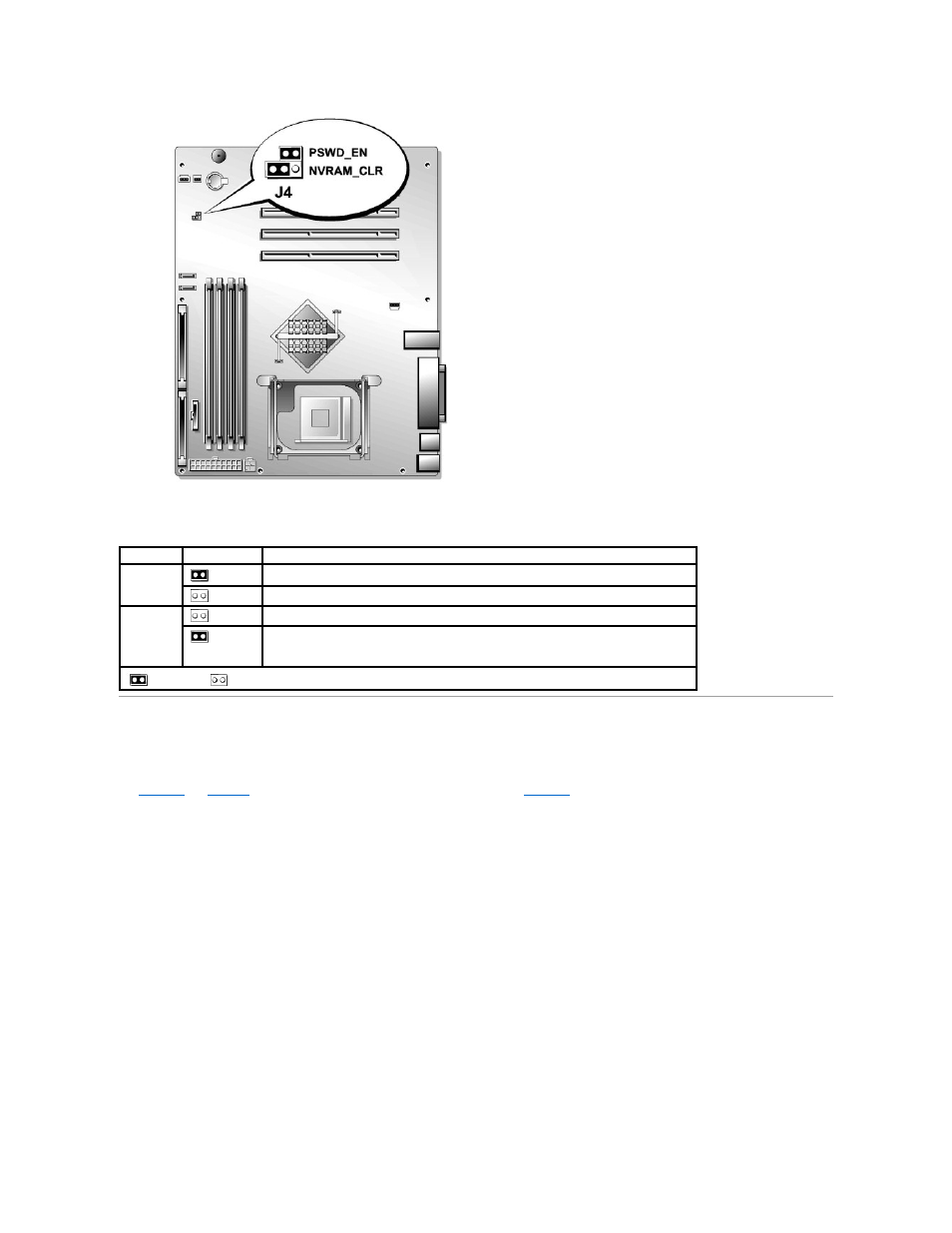

Table A-1. System Board Jumper Settings



System Board Connectors



See

Figure A

-3

and

Table A

-2

for the location and description of system board connectors.

Figure A

-3

also lists expansion slot numbers, buses, and bus

operating speeds.

Figure A-3. System Board Connectors



Jumper

Setting

Description



PSWD_EN



   (default)



The password feature is enabled.





The password feature is disabled.



NVRAM_CLR

   (default)

 The configuration settings are retained at system startup.





The configuration settings are cleared at next system startup.



NOTE:

You can store a spare, unused jumper plug on one pin of the NVRAM_CLR jumper block.



  jumpered

  unjumpered
