Table 2-3. NIC Indicator Codes
Hot-Plug SCSI Hard-Drive Indicator Codes
Each SCSI hard-drive carrier has two indicators: a busy indicator and a status indicator (see Figure 2 -4 ). The indicators provide information on the status of
the respective hard drive.

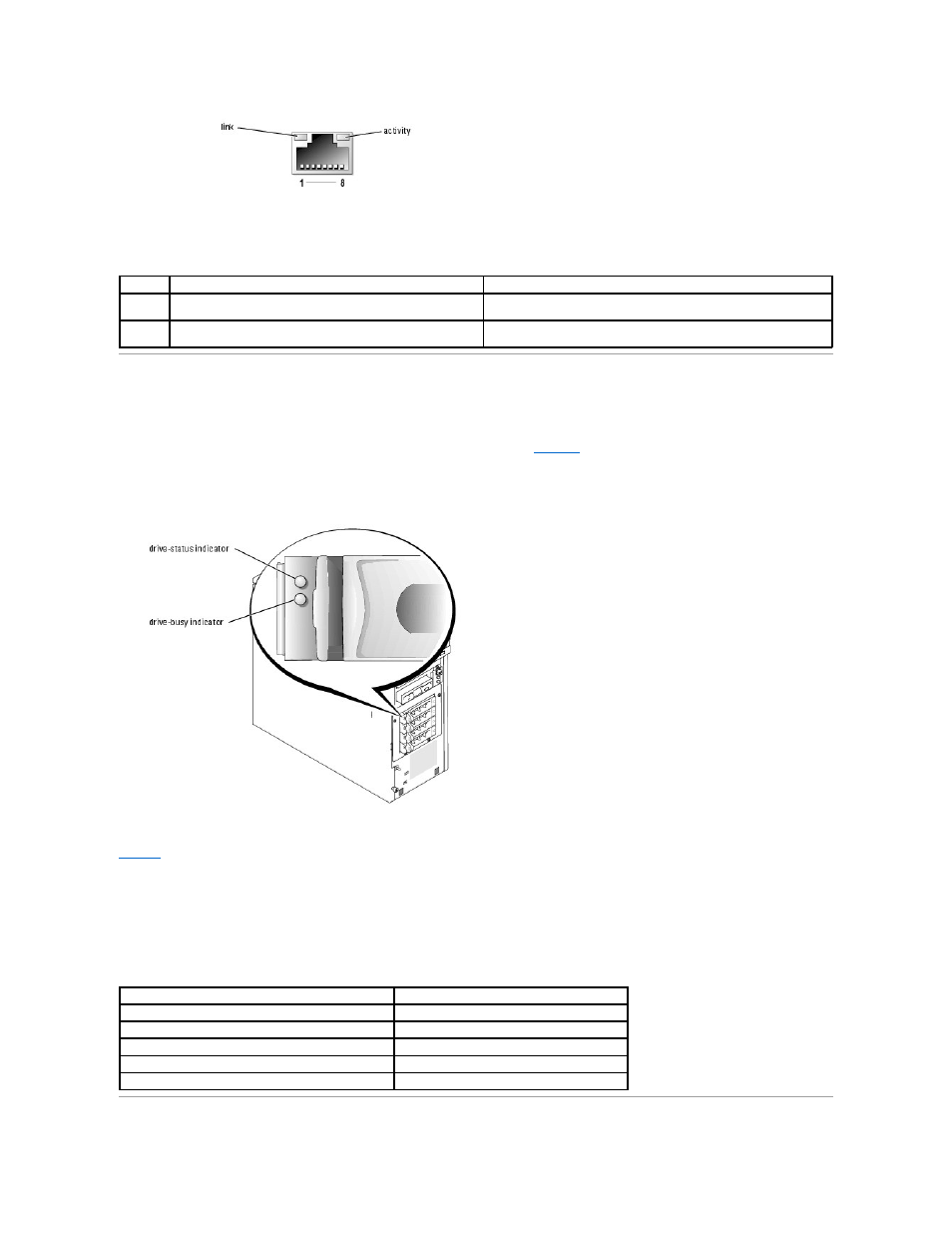

Figure 2-4. Hard-Drive Indicators
Table 2 -4 lists the drive-status indicator codes. Different codes display as drive events occur in the system. For example, in the event of a hard-drive failure,
the "drive fail" code appears. After the drive is selected for removal, the "preparing for removal" code appears. After the replacement drive is installed, the
"preparing for operation, drive online" code appears.
The drive-busy indicator signifies whether the hard drive is active on the SCSI bus. This indicator is controlled by the hard drive.
Table 2-4. SCSI Hard-Drive Status Indicator Codes
Indicator Normal Operation Error Condition
Activity Flashing amber indicates that network data is being sent or
received
When off at the same time that the link indicator is off, the network
adapter is not connected to the network.
Link Steady green indicates that the network adapter is connected to a
valid link partner on the network.
When off at the same time that the activity indicator is off, the network
adapter is not connected to the network.
Drive-Status Indicator Indicator Code
Drive bay empty Off
Drive being prepared for operation, drive online Steady green
Drive being identified, prepared for removal, or drive offline Blinks green 3 times per second at equal intervals
Drive rebuilding Blinks green once per second
Drive failed Steady amber
