h2000 Autopilot User Manual
Part 4 - Installation Information
HB-0842-04
4-17

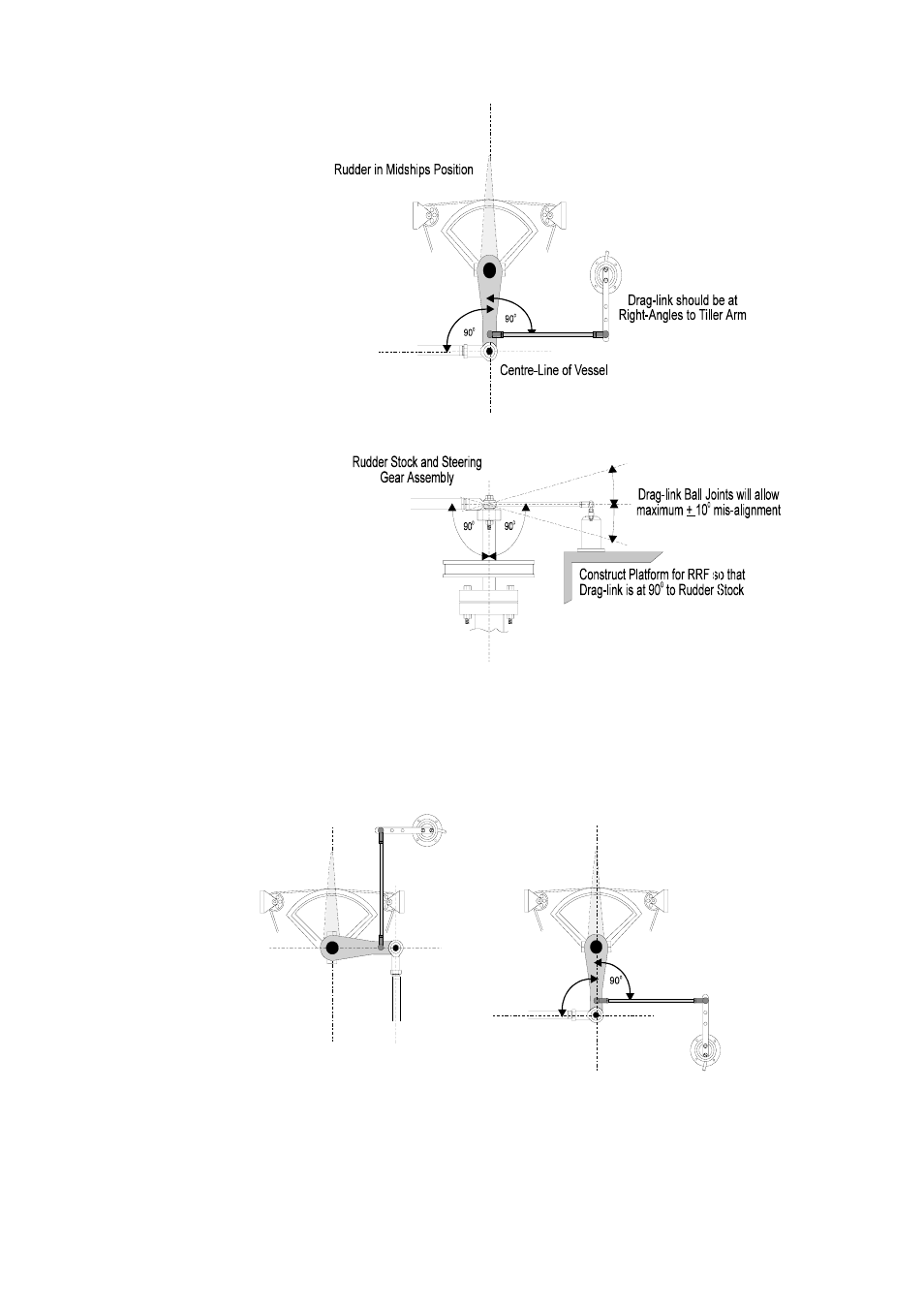

Fig 4.11 Plan View - Typical System with Tiller Arm and Quadrant
The RRF can be mounted in many different positions and
orientations depending on the layout of the steering system.
Fig 4.12 Steering System Orientation
