h2000 Autopilot User Manual
Part 5 - Options
HB-0842-04
5-16
88.9mm
(3.5)
centres
50.8mm
(2.00)
centres
4 holes
I 7.0mm
(0.28)
240 mm
(9.45)
105mm
(4.13)
80mm
(3.15)

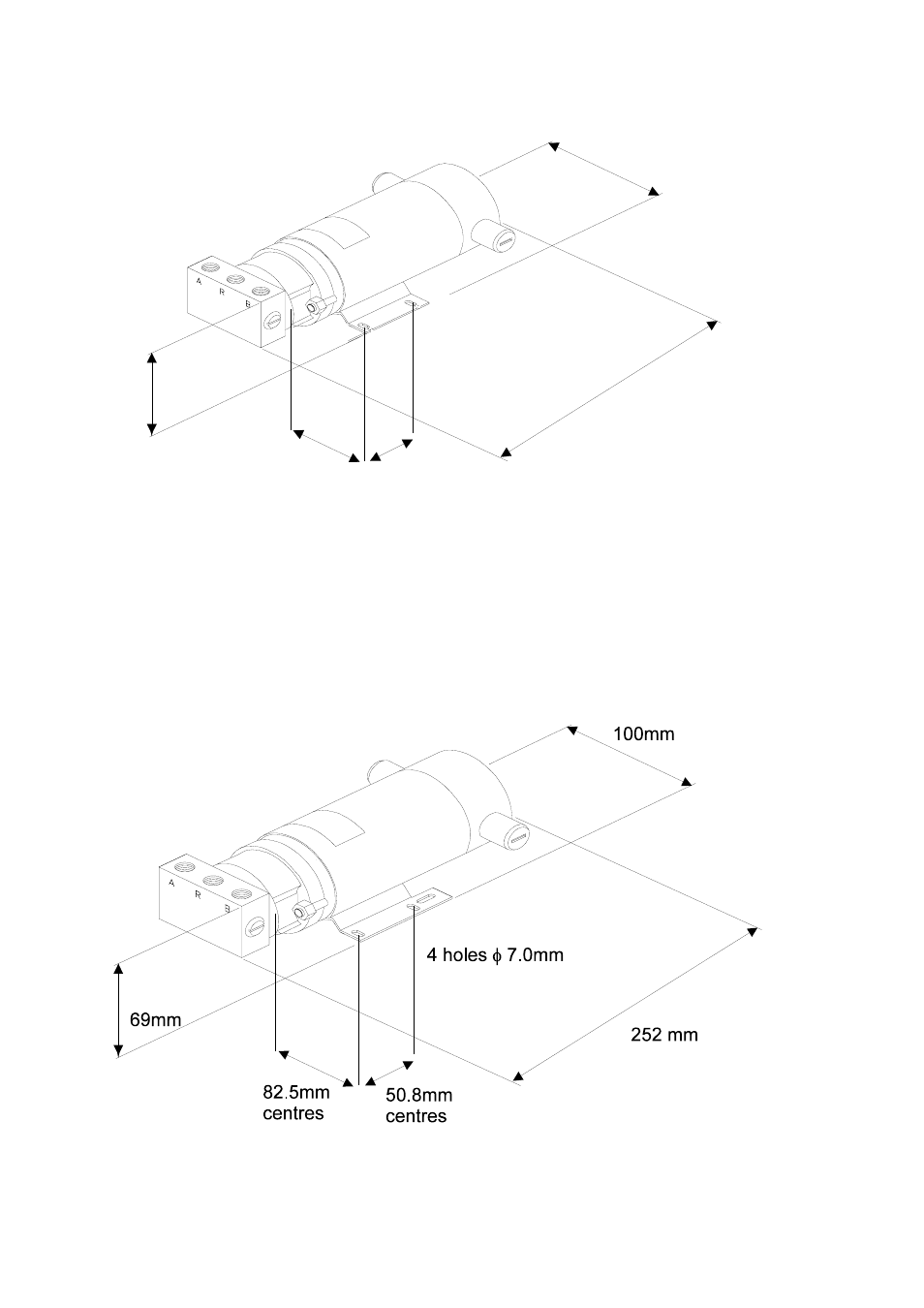

Fig 5.8 Type 1 and 2 Hydraulic Pump Dimensions
Fig 5.9 Type 3 Hydraulic Pump Dimensions
