h2000 Autopilot User Manual
Part 5 - Options
HB-0842-04
5-18
(12) Check the fluid level in the helm unit reservoir.
(13) When the system appears to be fully functional, with
the pump running and the helm hard over check for leaks.
(14) Secure all hoses and cables to prevent damage.

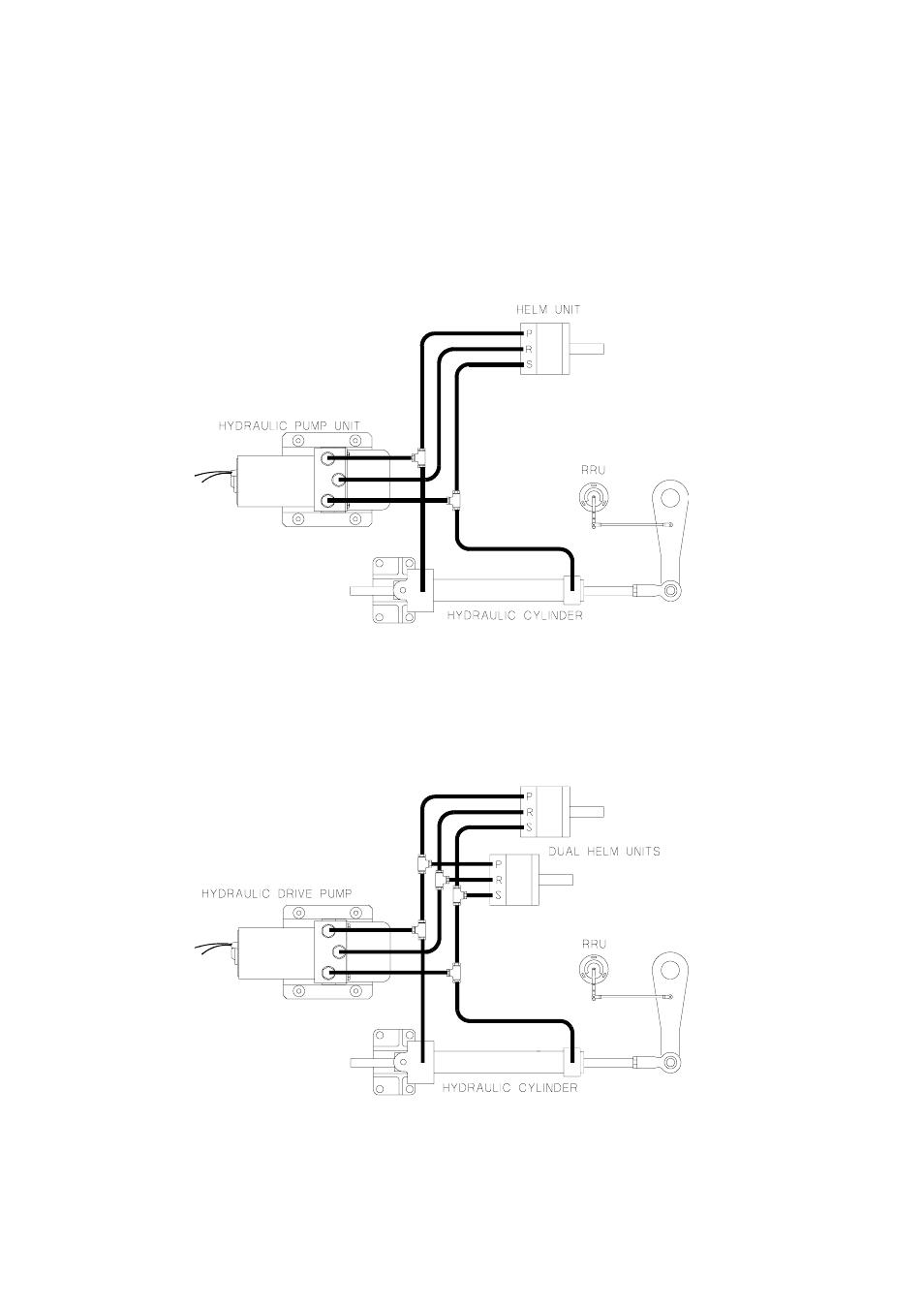

Fig 5.10 Single Station System Example
Fig 5.11 Dual Station System Example
