(3) Press Enter to store the value.

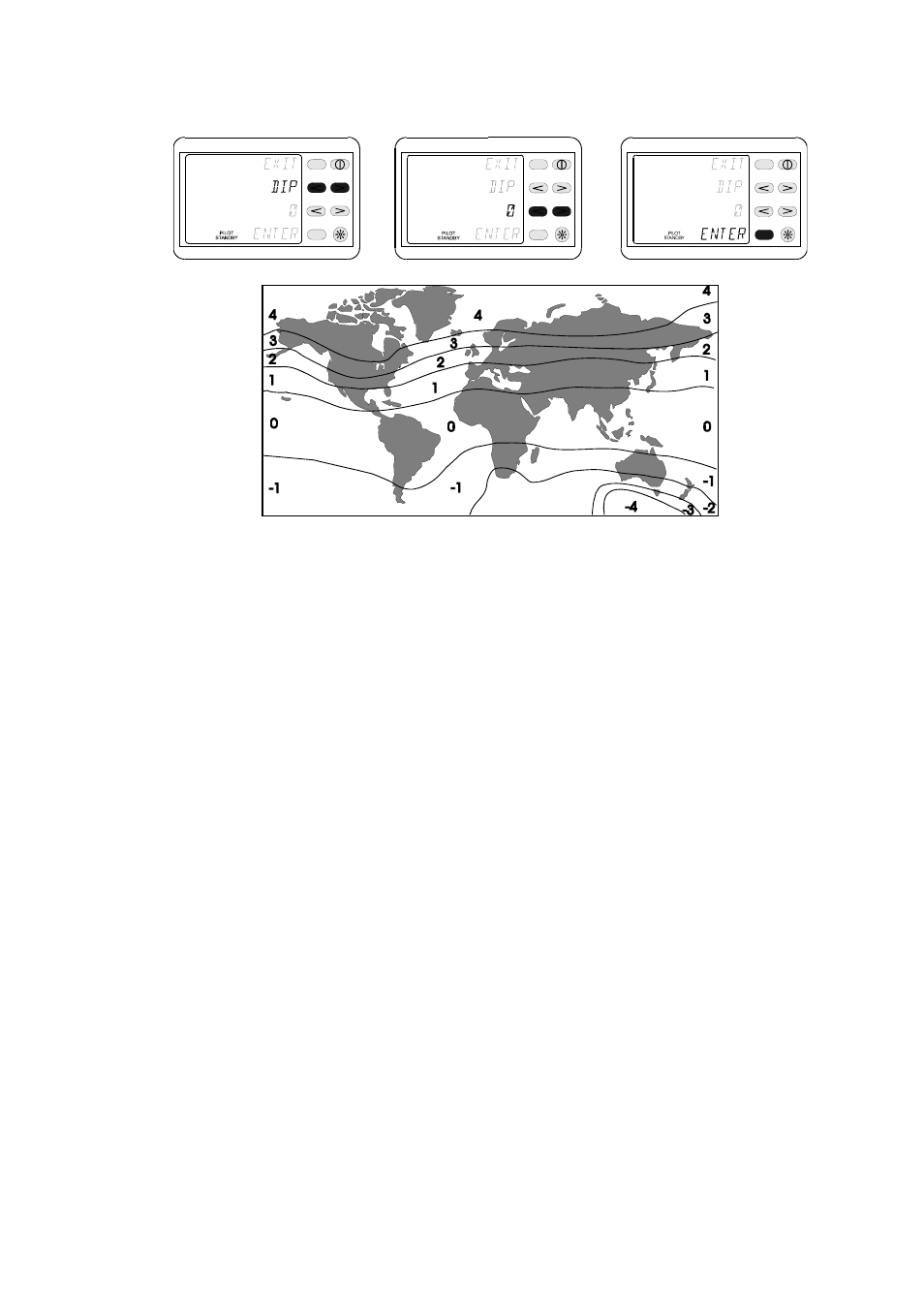

Fig 3.1 Magnetic DIP Angle Corrections
3.3.9 Rudder Drive Type (Drive)
Note
Depending upon the type of rudder drive unit fitted, the autopilot
controls the rudder drive motor in different ways; this optimises the
autopilot steering response.
There are three selections for DRIVE:
TYP-A All Linear Rams, Hydraulic pumps and Rotary
drives.
TYP-B Pedestal drive motors fitted by some steering
gear manufacturers.
TYP-C Outdrive drive units and Continuous drive units.
3.3.10 Setting the Drive Type
(1) Select DRIVE from the menu.
(2) Select the correct value from the list above.
(3) Press Enter to store the drive type.
