(5) Observe the performance of the autopilot when
changing course. The rudder gain value is inversely
proportional, therefore, if the rate of turn is too SLOW,
REDUCE the value of rudder gain and the autopilot will
use more rudder. If the rate of turn is too FAST,
INCREASE the value of rudder gain and the autopilot will
use less rudder.
(6) Adjust the Rudder Gain to give an average rate
of turn of approximately 6
o
to 8
o
per second.
Boat Type Factory Set Value Typical Values
Sail Boats 2.0 1.0 to 3.0
Power Boats 0.8 0.3 to 1.0
Table 3.2 Rudder Gain Value
Note
The factory set value is selected by setting Boat Type and Rudder
Drive Type during commissioning.
3.4.13 SETTING THE RUDDER GAIN VALUE
Note
The autopilot must be disengaged and in commissioning mode to
adjust the Rudder Gain value.

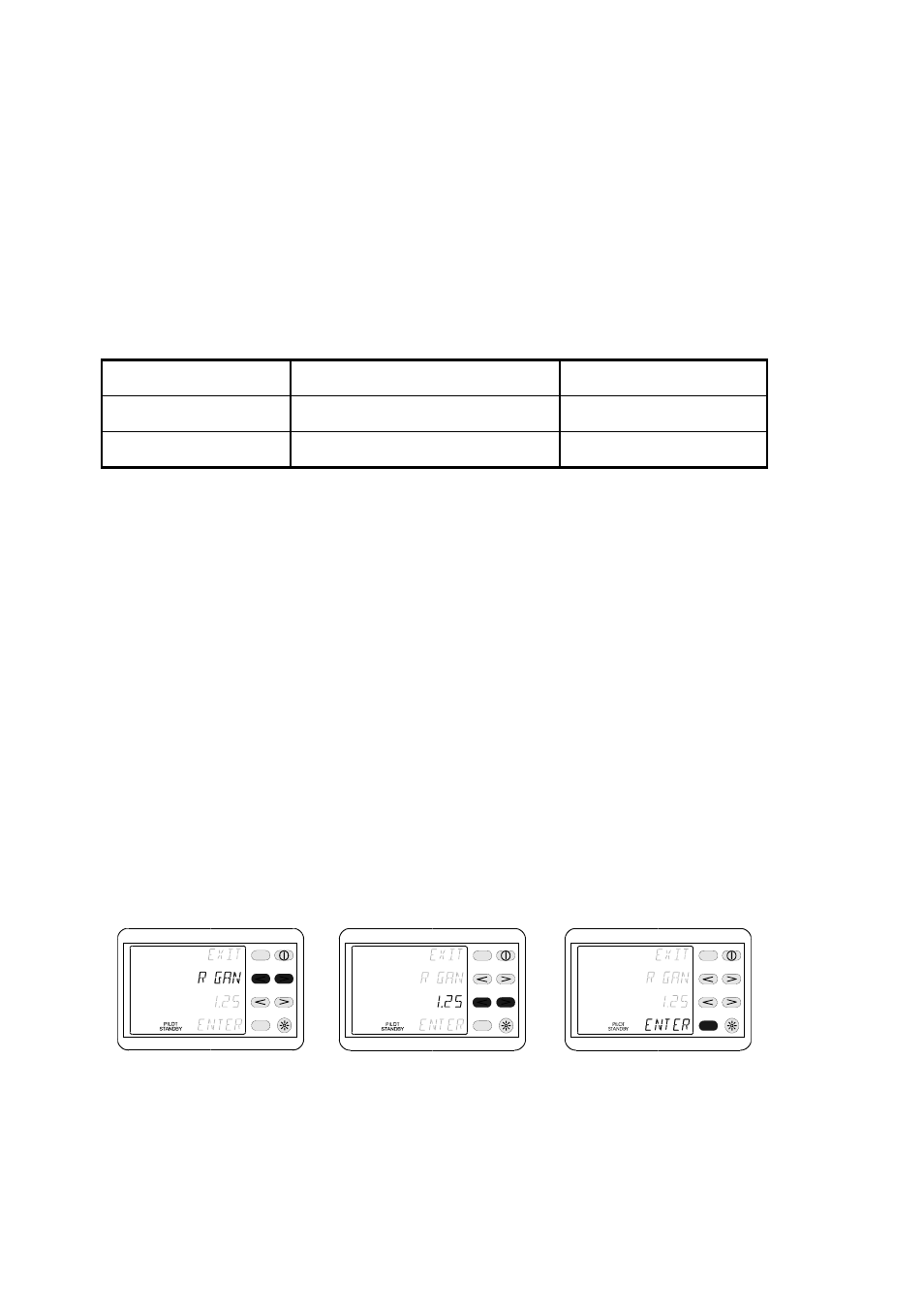

(1) Select R GAN from the menu.
(2) Adjust the value with the < > Keys shown.
(3) Press Enter to set the value.
