h2000 Autopilot User Manual
Part 5 - Options
HB-0842-04
5-7

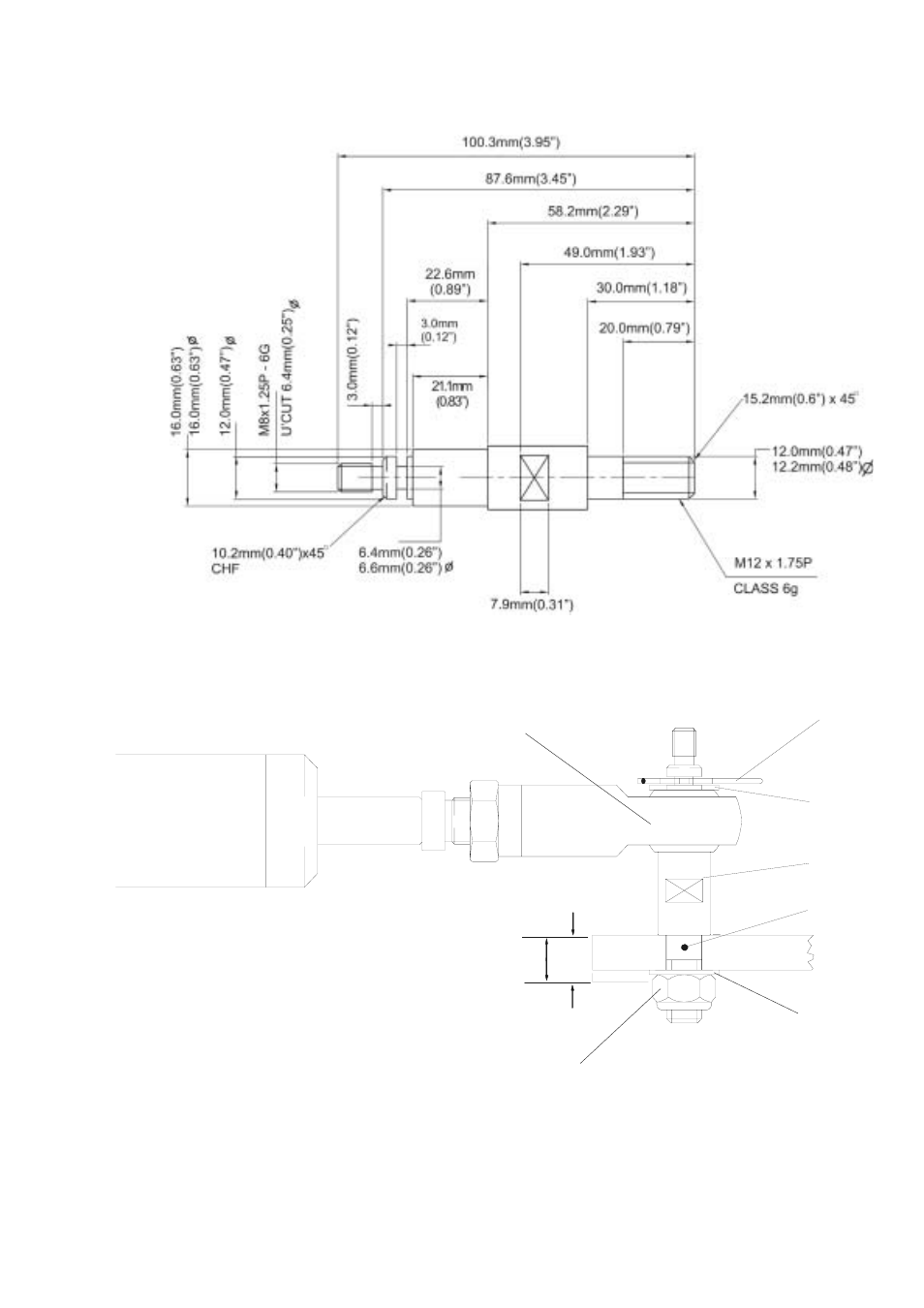

Fig 5.2 Type 1 and 2 Rose Joint and Ram Bolt Detail
‘R’ CLIP
R
3773
RECOMMENDED
QUADRANT THICKNESS
NUT TORQUE - 27NM
20 Ft.Ib
W A S H E R
LOCTITE
TILLER BOLT
W A S H E R
ROD END
12MM
MIN
16MM
MAX
