h2000 Autopilot User Manual
Part 1 - Introduction
HB-0842-04
1-6
(f) Red Off Key (top right of keypad) - This key
disengages the Autopilot and returns the boat to Manual
Steering. It has no other function.
(g) Lights Key (bottom right of keypad) - This key turns
the LCD back lighting ON and OFF, and allows three
levels of illumination to be selected for all displays
(including Instrument System FFDs) under system control.
It has no other function.
Note
The Autopilot can be disengaged at any time from any mode or
menu by pressing the Red Off Key.
1.5 HAND-HELD CONTROLLER
10
1
56.5 24.0
128.0
auto/resume
off

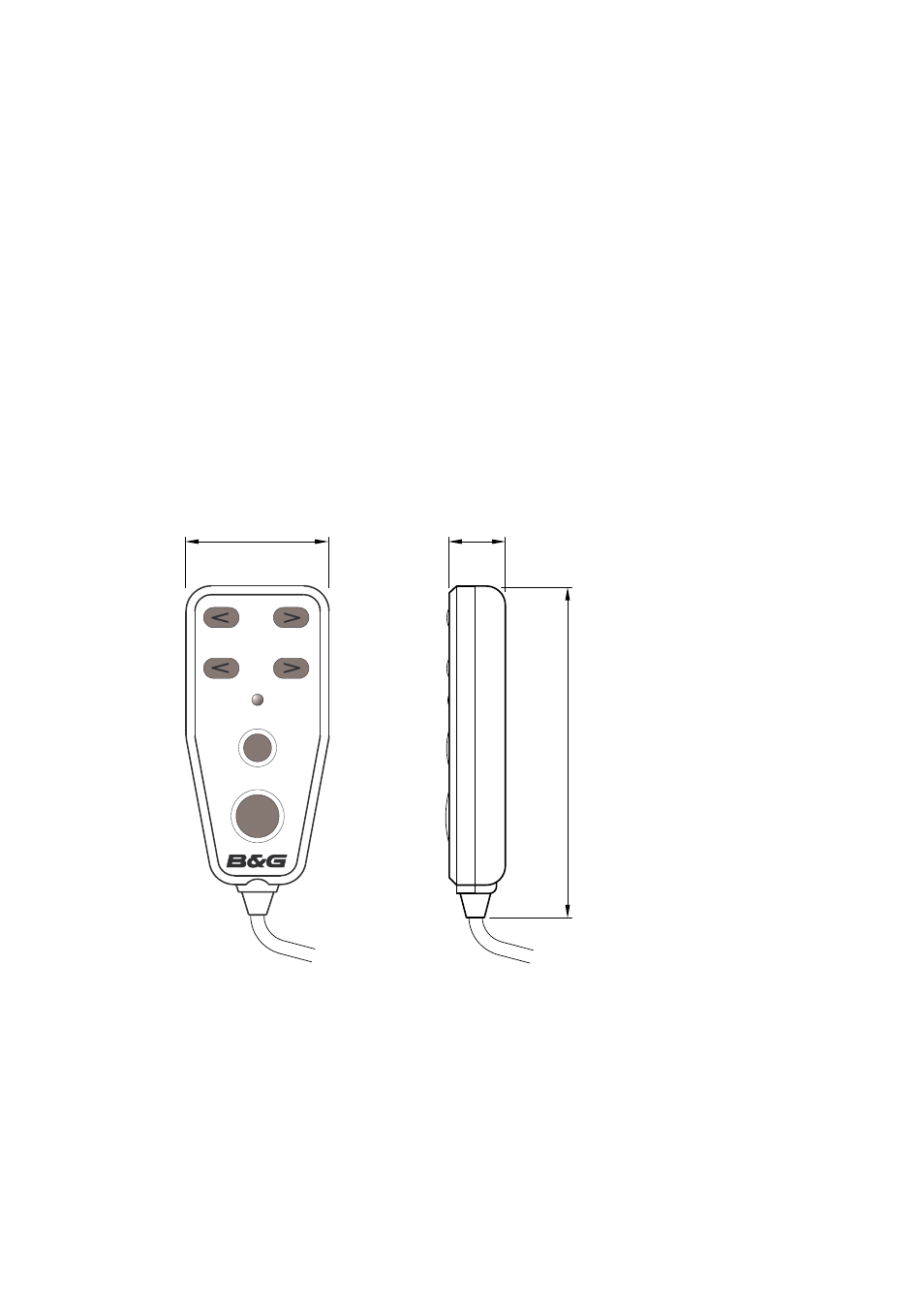

Fig 1.2 - Hand-held Controller
The Hand-held Controller provides remote control of the h2000
Autopilot. The six keys used for dedicated functions are as follows:
(a) 10 degree course change (Port/Starboard).
(b) 1 degree course change (Port/Starboard).
