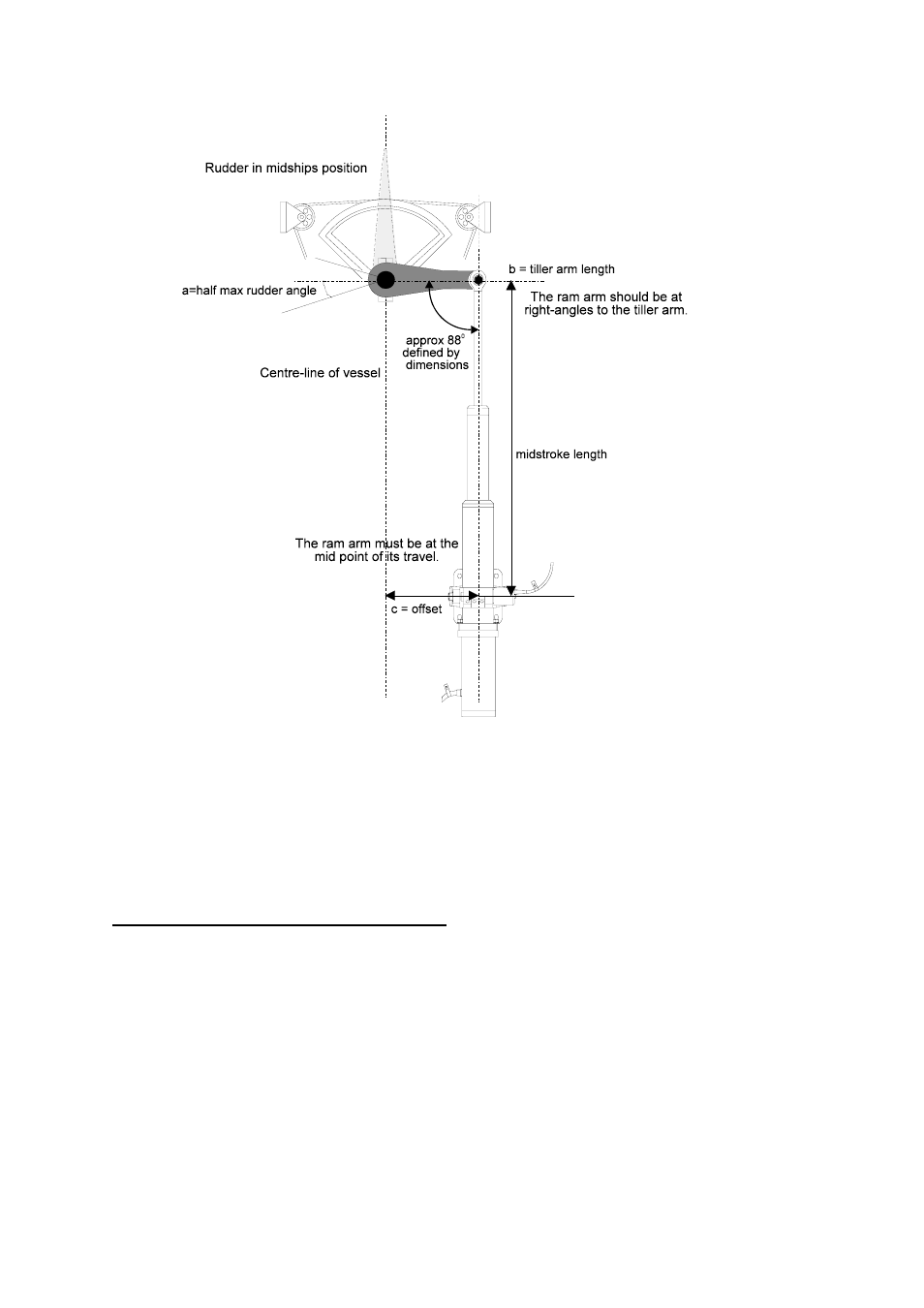

Fig 5.6 Ram Mounted Parallel to Vessel’s Centre-line
KEY POINTS ON INSTALLATION
x Ensure that the rudder angle is limited by the rudder stops and
not the limit of travel of the ram arm. Failure to do this will
damage the unit and invalidate the warranty.
x Ensure that there is sufficient space at each end for the ram
arm to extend fully.
x Check for full movement and security of the steering gear
before applying any power to the autopilot system.
