Air System Operation
Meter Pressurization System Elements ( shows air direction)
A11Hydraulic Fan A20In-Wing Manifold Port A28Seed Tube
A13Fan Pressure Sensor Port A21Manifold Port Elbow A29Seed Tube Sensor (Figure 36)
A14Fan Magnehelic
®
Gauge A22Air-Pro
®
Seed Meter A30Sensor Port (Figure 36)
A15DF Butterfly Valve A23Seed Hopper A31Pressure Sensor Lines
A16Meter Pressurization Air A24Meter Seed Inlet A32Pressure Sensor Chamber
A17L/R Airflow Splitter A25Seed Inlet Shutter A33Magnehelic
®
gauge
A18Wing Manifold Inlet A26Seed Pool (Figure 36)
A19Wing Butterfly Valve A27Disk Seed Pocket (Cell) See page 58 for: D28 and D29

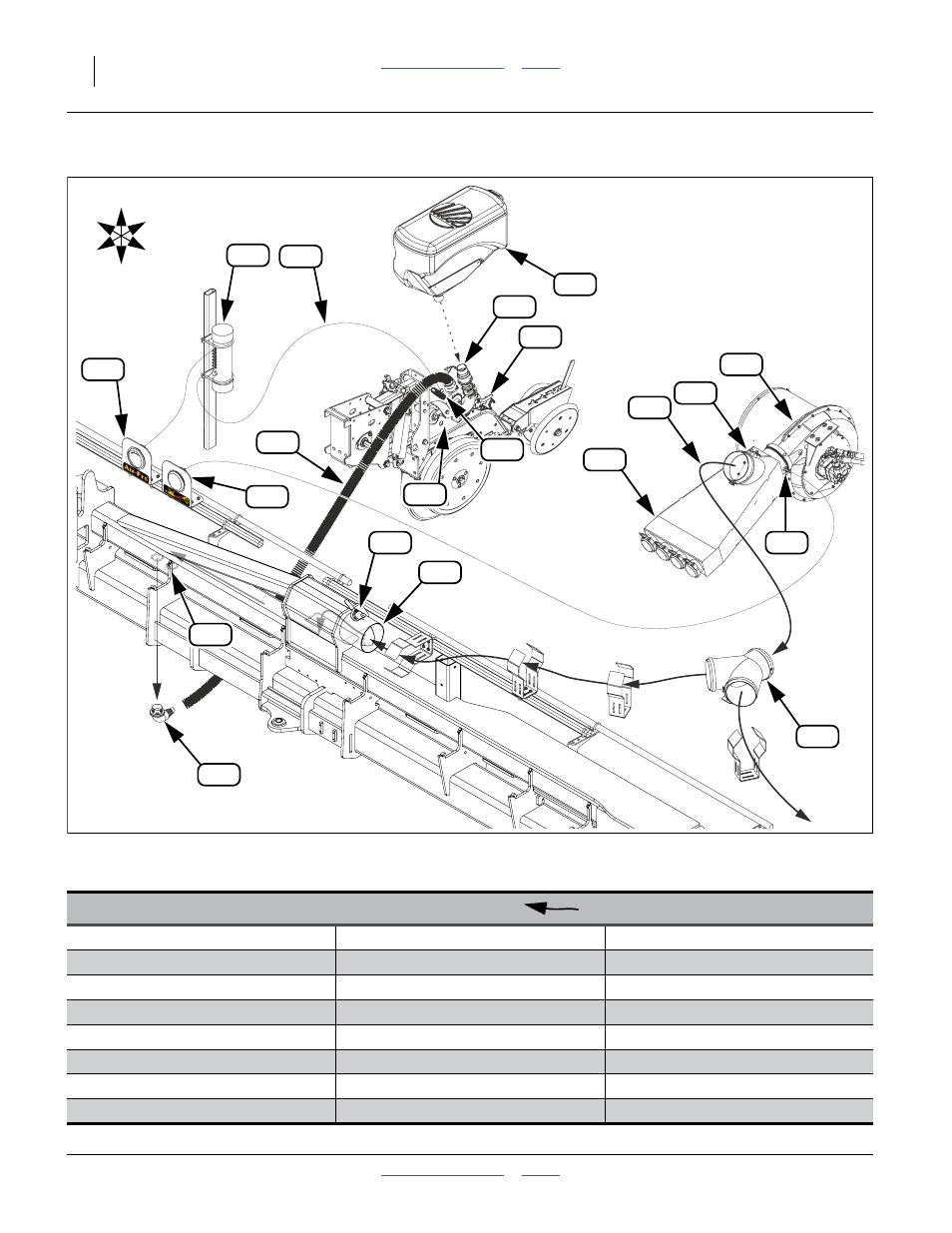

Figure 35
Planter Air System for Air-Pro
®
Seed Metering
36134
U
D
F
B
L
R
A32 A31
A33
A16
D28
A20
A19
A21
A18
A22
A30
A25
A24
A23
D29
A16
A15
A11
A13
A17
