Monitor

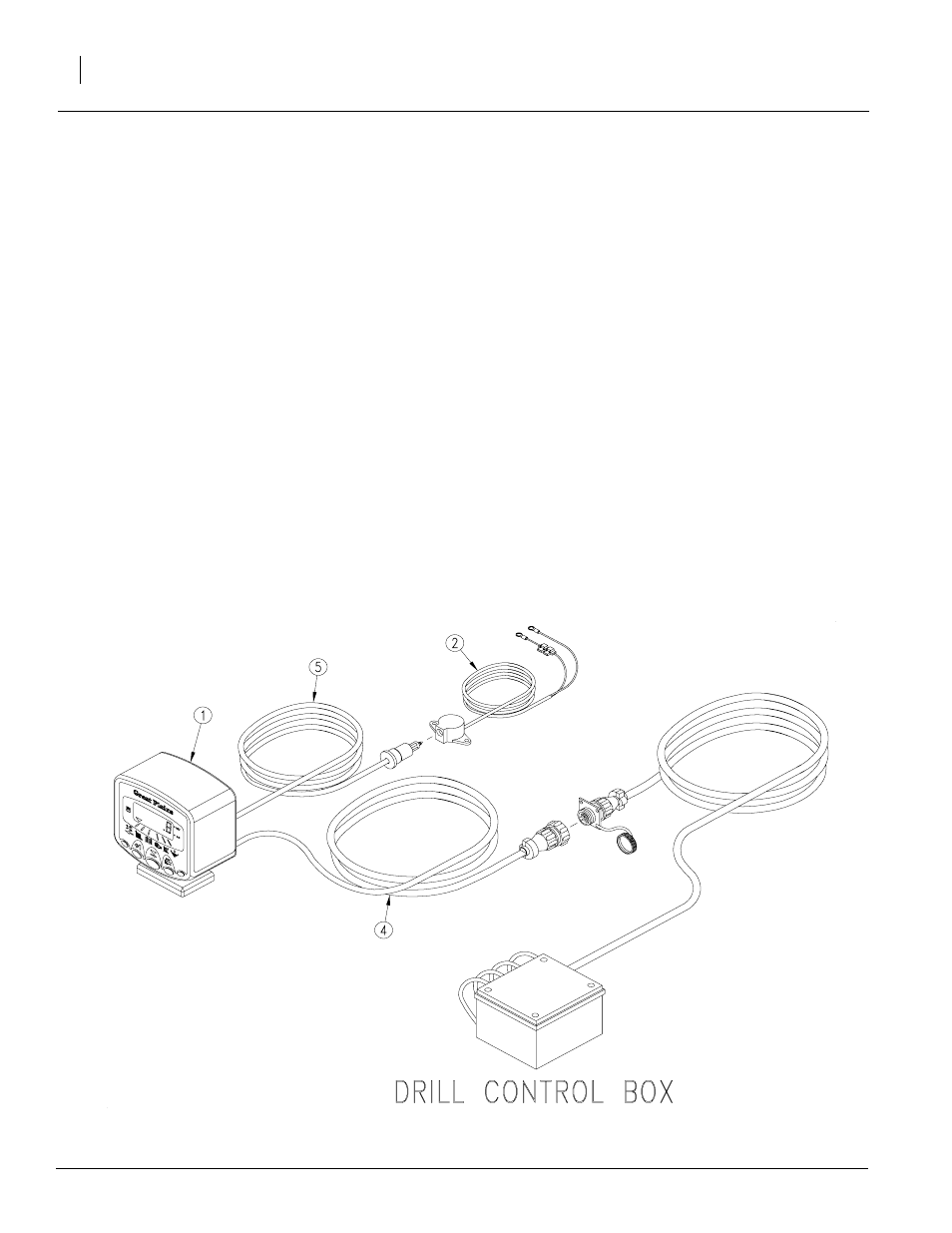

Refer to Figure 61
1. Mount monitor control box (1) in a
convenient location in tractor cab.
Route the lead cable (4) back toward
the tractor drawbar area making sure
it will not get kinked or pinched.
2. Connect the power cord (2) to a good
uninterrupted 12 volt power source on
the tractor. Connecting directly to the
battery is recommended.
NOTE: To prevent circuit damage, be sure
to attach the ground wire to the negative
battery terminal and the fused wire to the
positive battery terminal.
3. Plug the cord into the power lead (5)
on the back of the control box (1).
23382
Figure 61
Monitor
