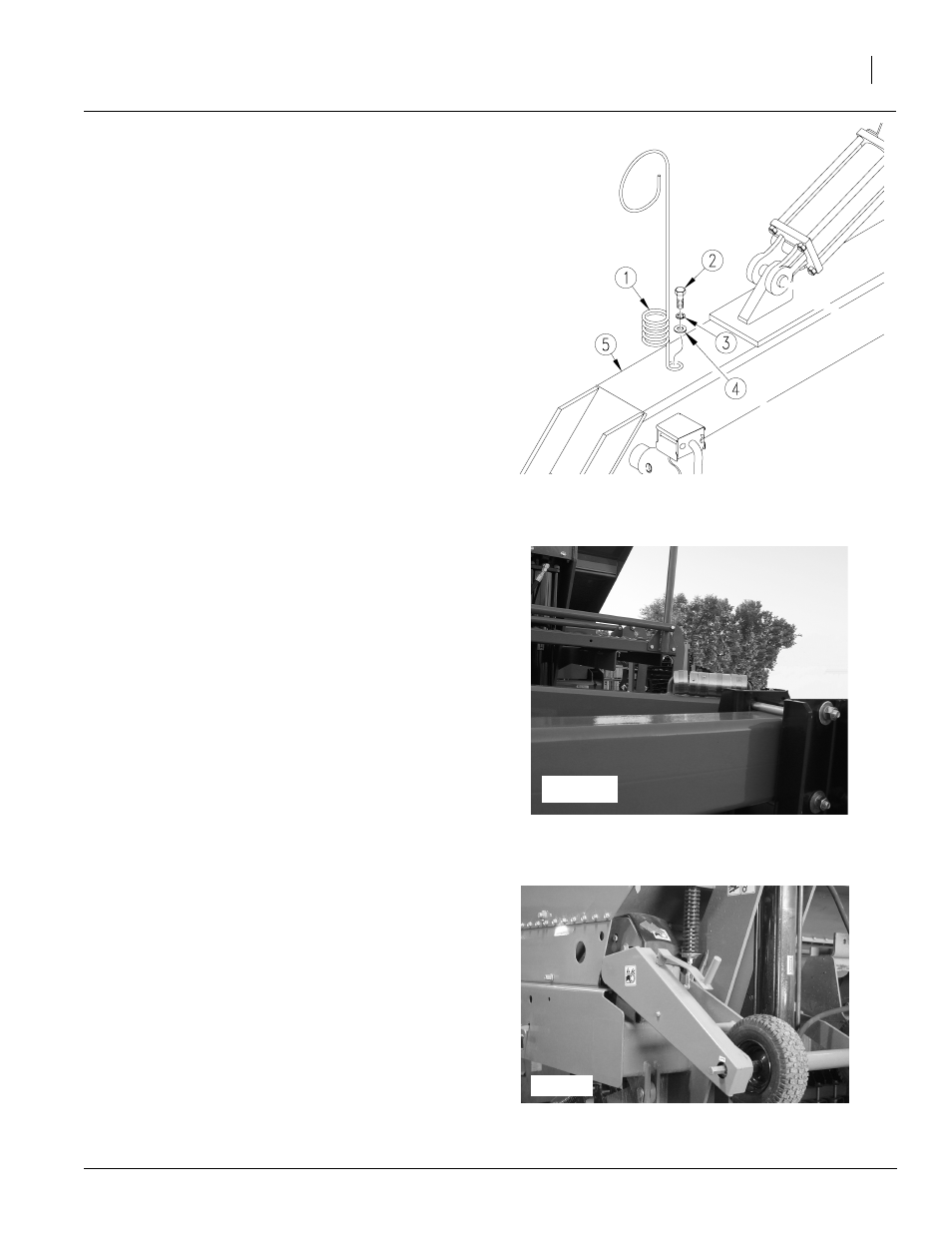

Hose Guide Attachment
Refer to Figure 48
1. Attach hose guide attachment (1) to tongue
(5) using two 1/2 flat washers (4), 1/2 lock
washer (3), and 1/2-13 x 1 bolt (2).
2. Route all hydraulic hoses through hose guide
attachment to tractor.
Cylinder Stop Bushings
Refer to Figure 49
NOTE: Cylinder stop bushings are stored on the
frame of the drill.
23377
Figure 48
Hose Guide Attachment
23379
Calibration Crank
Refer to Figure 50
1. When not in use, store calibration crank on
stob located on top of contact wheel arm.
23380
Figure 50
Calibration Crank
Figure 49
Cylinder Stop Bushings
