V300, V300F
148-057Q 1/2/2006
12
Coulter Toolbar

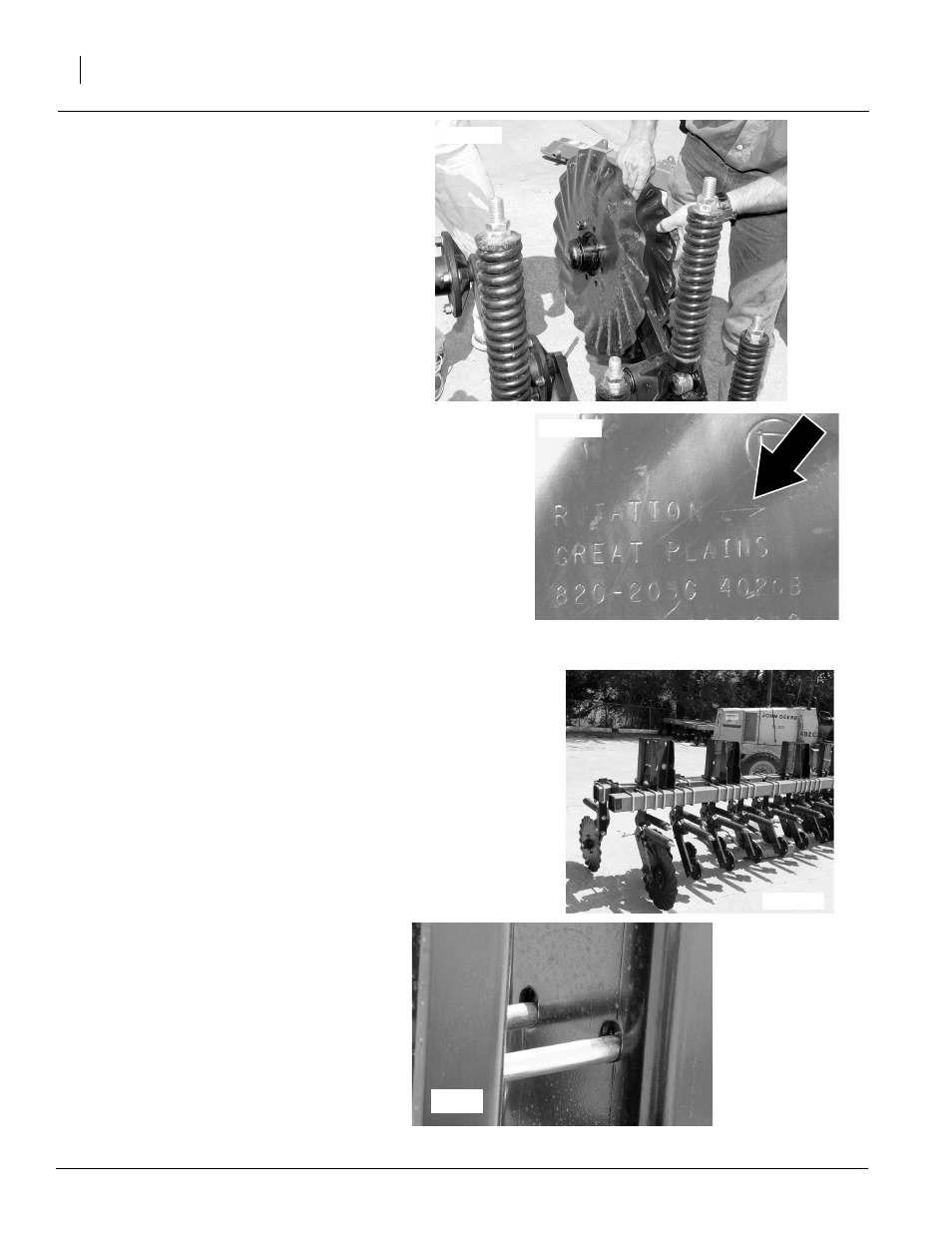

Refer to Figure 9
1. Secure coulter blades to coulter toolbar
using 1/2-13 x 1 1/4 bolts, 1/2 lock wash-
ers, and 1/2-13 hex nuts.
NOTE: If attaching turbo coulter blades,
blades must be attached correctly with
the rotation arrow pointing toward the di-
rection of travel.
Refer to Figure 10
2. Once all coulter blades are attached, re-
move one coulter from each end of
coulter toolbar. Turn coulter backwards
and reattach to coulter toolbar.
NOTE: End coulters are turned backwards
to support the toolbar prior to installation
on the frame.
3. Stand coulter toolbar up on coulter
blades.
4. Remove top two bolts from each coulter
toolbar clamp. Keep bolts for reuse.
NOTE: Make sure bottom two bolts of
each coulter toolbar clamp are resting at
the very bottom of the slot.
23343
23301
Figure 9
Installing Coulter Blades
Figure 10
Assembling Coulter Toolbar
23305
23303
