Refer to Figure 39
13. Attach walkboard ladder to folding ladder
mount base using 3/8-16 x 1 1/4 bolts, 3/8 flat
washers, and 3/8-16 lock nuts.
14. Tighten all bolts.
Small Seeds Rear Walkboard Extension
Refer to Figure 40
NOTE: If equipped with small seeds, attach walk-
board extension before attaching rear walkboard.
If not equipped with small seeds, follow instruc-
tions under Rear Walkboard section.
NOTE: The small seeds rear walkboard exten-
sions come in a pair of left and right.
1. Attach the right-hand side small seeds rear
walkboard extension to back of frame on
right-hand side of drill.
2. Use three 1/2-13 x 1 1/2 bolts, two 1/2 flat
washers, one 1/2 lock washer, and one 1/2-13
hex nut to secure extension to frame.
3. Repeat steps 1 and 2 to attach left-hand side
small seeds extension to back of frame on
left-hand side of drill.
23325

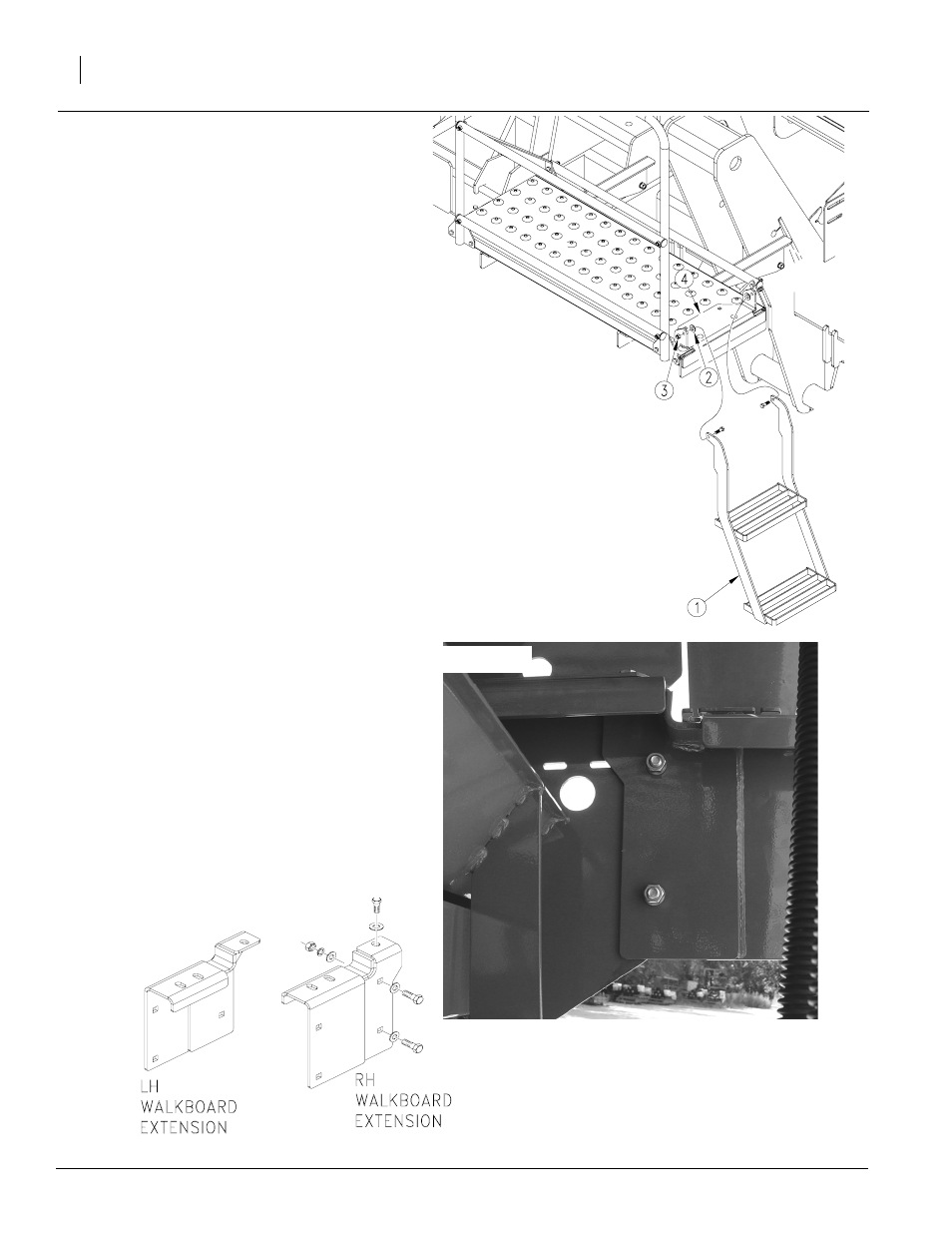

Figure 39
Walkboard Ladder
23329
Figure 40
Rear Walkboard Extension
23327
