Refer to Figure 5
7. Unscrew bolts attaching coulter toolbar to
rack. Keep bolts for reuse.
8. Using forklift or other implement, gently lift the
coulter toolbar and tongue up so they are not
resting on rack crossbar.
NOTE: Do not fully remove toolbar and tongue
from rack.
9. Before removing toolbar and tongue from
rack, secure toolbar and tongue to forklift with
chains.
10. Remove toolbar and tongue from rack and
place on empty palette.
Refer to Figure 6
11. Remove packing material from tongue. Re-
move tongue from coulter toolbar.
NOTE: DO NOT REMOVE DRILL BOX FROM
RACK. SOME ASSEMBLY REQUIRED BE-
FORE REMOVING BOX FROM RACK.

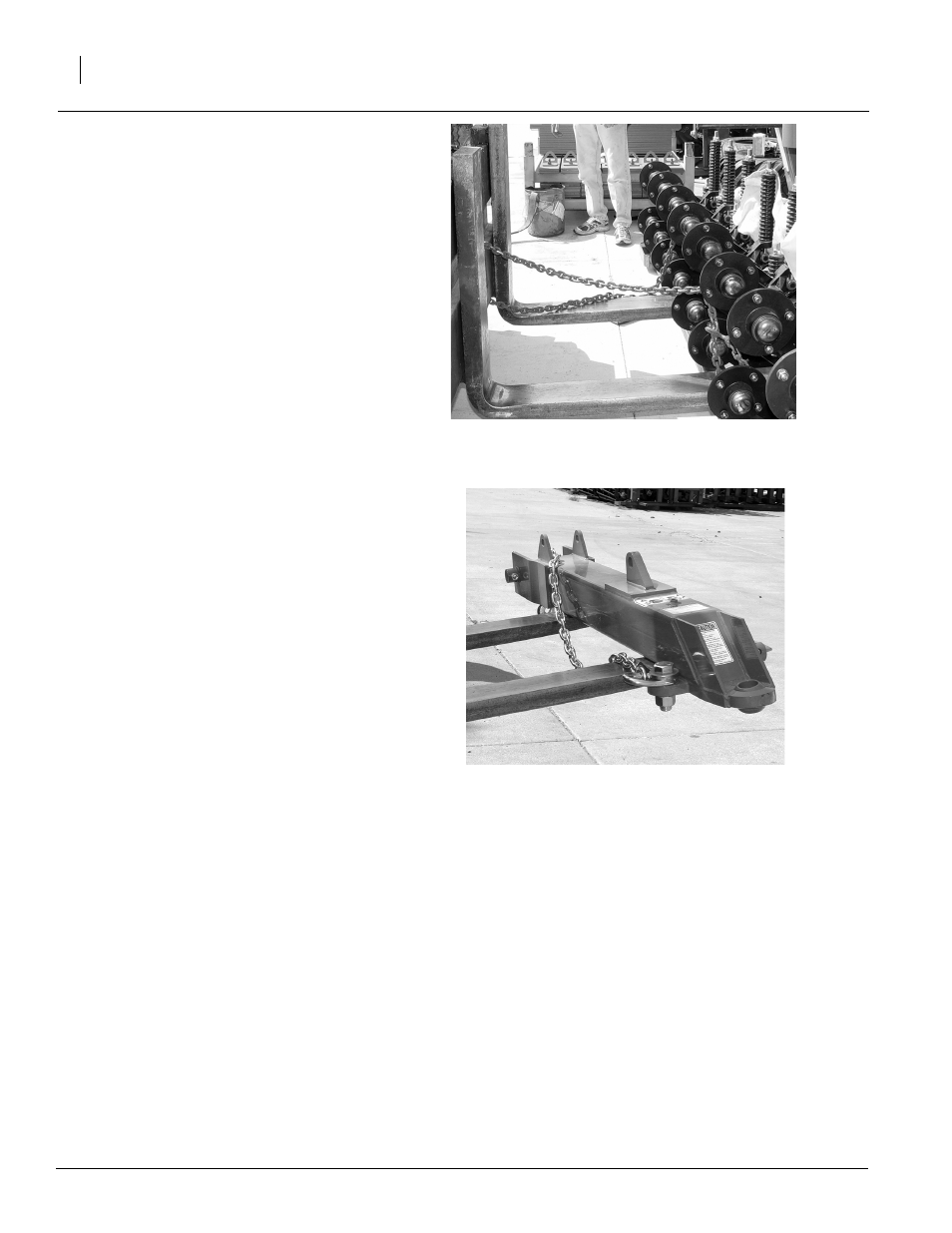

Figure 5
Removing Coulter Toolbar
23335
Figure 6
Tongue
23297
