31 Assembly
Using Spring Installation Tool

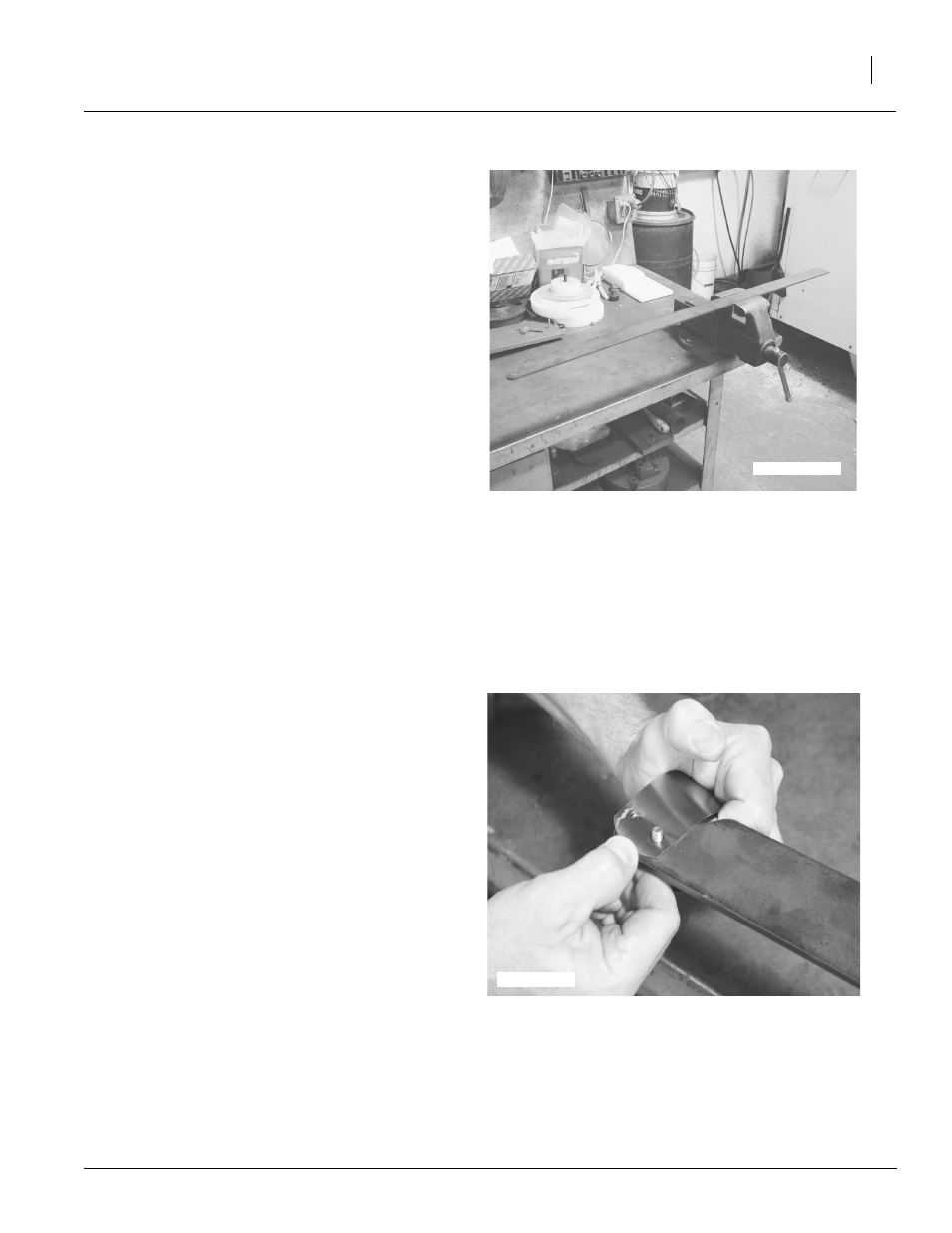

Refer to Figure 52
1. Securely clamp spring tool in a bench vise.
Refer to Figure 53
2. Attach end of spring to end of tool with 1/4 x 1/2
hex head cap screw. Hold the spring as shown
and use right-hand hole.
NOTE: This will keep the spring centered on tool
when pulled the length of the tool.
3. Insert bolt from bottom and thread on nut leaving
nut loose.
21899
Figure 52
Spring Tool
21900
Figure 53
Attaching Spring
