Great Plains V-300F Predelivery Manual - Manual (Page 25)

1/2/2006 148-057Q
23 Assembly
Walkboard
Front Walkboard

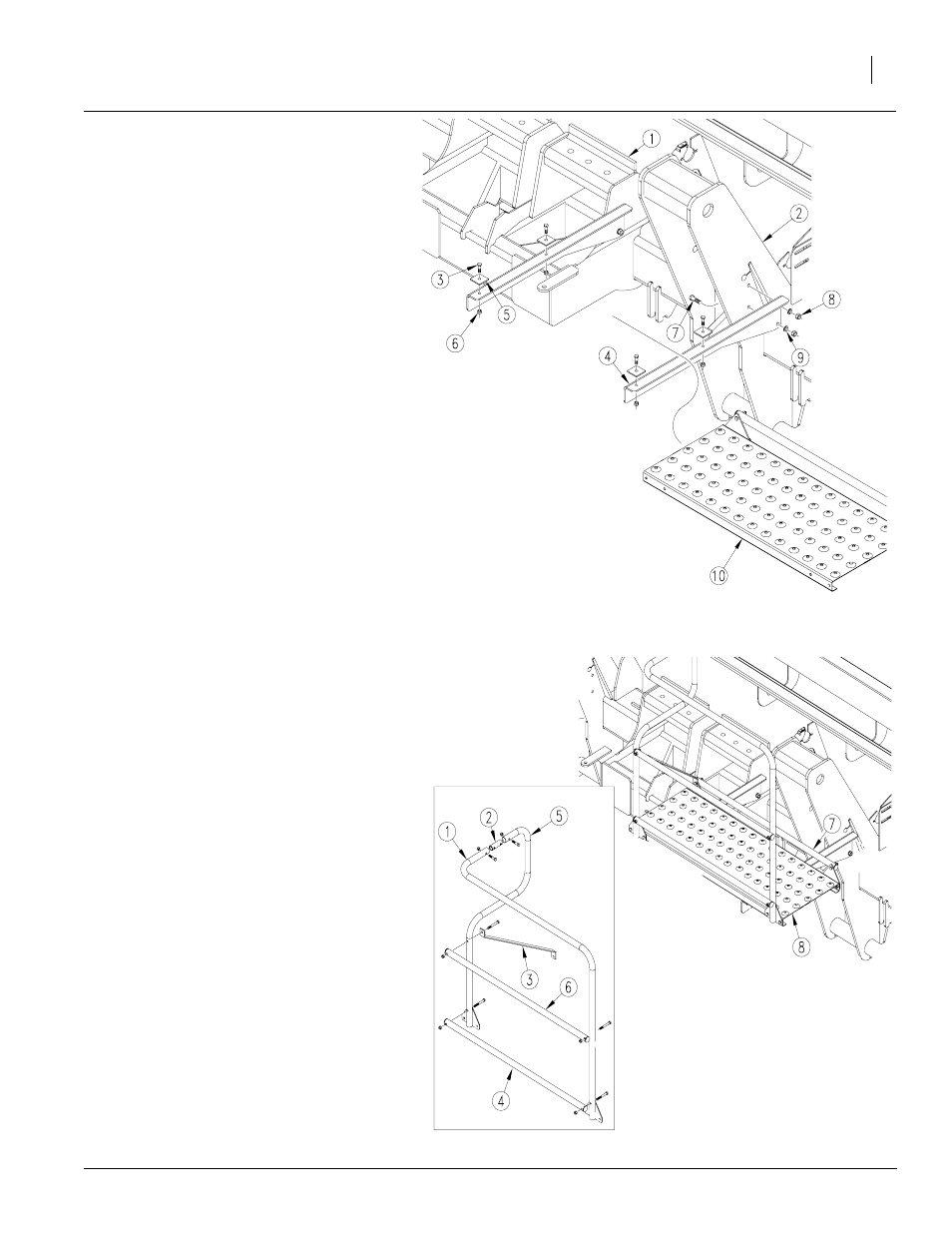

Refer to Figure 37
1. Attach walkboard mount (4) to outer most
contact wheel plate (2) on left-hand side of
drill. Use 1/2-13 x 1 3/4 bolts (7), 1/2 lock
washers (9), and 1/2-13 hex nuts (8).
2. Secure other walkboard mount (4) to
weight bracket (1) located on left-hand side
of drill. Use 1/2-13 x 1 3/4 bolts (7), 1/2 lock
washers (9), and 1/2-13 hex nuts (8).
3. Using 3/8-16 x 1 1/4 bolts (3) and 3/8-16
lock nuts (6), attach 3-point step retainers
(5) to top of both walkboard mounts (4).
4. From side of drill, slide walkboard (10) onto
walkboard mounts (4) and 3-point step
retainers (5).
Refer to Figure 38
5. With 3/8-16 x 1 3/4 bolt and 3/8-16 lock nut,
secure front outside handrail weldment (1)
to handrail splice tube (2).
6. Attach front handrail weldment (5) to
handrail splice tube (2) using 3/8-16 x 1 3/4
bolt and 3/8-16 lock nut.
7. Attach front lower handrail (4) and
plugs to walkboard handrail assembly
with 3/8-16 x 3 1/4 bolts and 3/8-16
lock nuts.
8. Secure walkboard brace (3), front lower
handrail (6), and plug to walkboard
handrail assembly using 3/8-16 x 3 1/2
bolt and 3/8-16 lock nut.
9. Attach other end of front lower handrail
(6) to walkboard handrail assembly using
3/8-16 x 3 bolt and 3/8-16 lock nut.
10. Attach walkboard handrail assembly to
walkboard (8) using bolts and lock nuts.
11. Remove 3/8-16 x 2 1/2 bolt and 3/8-16 lock nut
securing front lower handrail (7) to mounting
plate on right-hand side of walkboard (8).
12. Attach walkboard brace (3) to right-hand side
mounting plate and front lower handrail (7)
using 3/8-16 x 2 1/2 bolt and 3/8-16 lock nut
removed in step 13.
23322
Figure 38
Walkboard Handrail Assembly
23319
Figure 37
Walkboard Mounts
