1/2/2006 148-057Q
21 Assembly
Small Seeds Hose (Optional)
Refer to Figure 35
NOTE: If equipped with small seeds box,
follow steps 1 and 2 to attach the small
seeds hose.
1. Attach SGS side delivery tube (3) to
opener with bolt (4) and lock nut (5).
2. Connect SGS hose (2) to SGS side
delivery tube (3) securing with hose
clamp (1).
19614

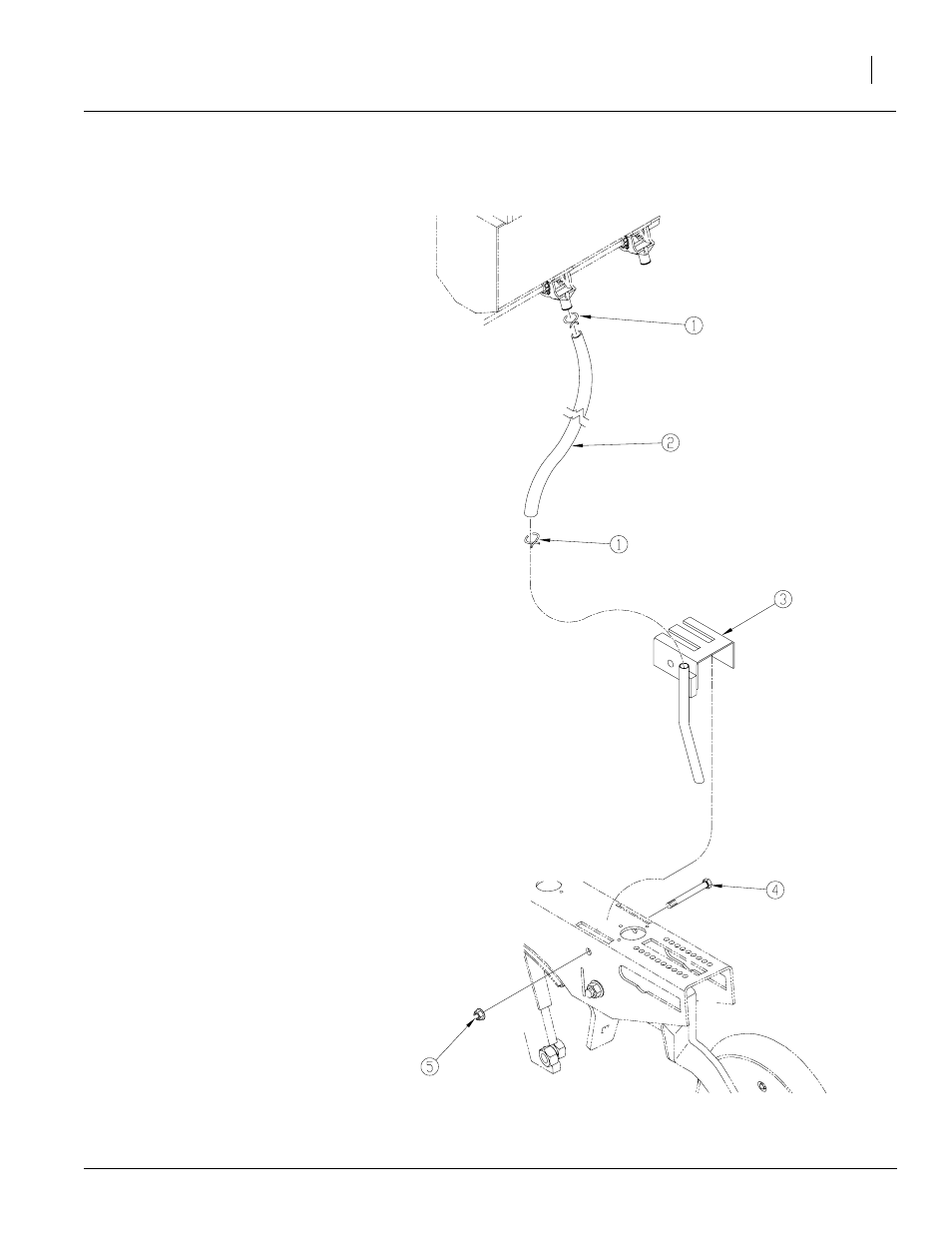

Figure 35
Small Seeds Hose
